Gel Seal Closure for 1/2″jumper to 4.3-10 connector


  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Telsto
  • Model Number: TEL-GE-1/2-J- connector 4.3-10
  • Description

    Telsto  gel seal weather proofing clam shell is a new kind of weatherproofing enclosure which contains a highly compliant sealing gel that conforms to the entire connection rather than a perimeter seal, leading to a highly reliable weather protection performance. In addition, the enclosure retains all the advantages of earlier closures – quick and easy to install, no tools required, and reusable-but the SLIM design better suited for crowded RF connection points of new emerging cell sites with multiple in, multiple out(MIMO) or multi band antenna configurations.

    Temperature Range, -40 ℃~+70 ℃

    Sealing Class, IP68

    Colors, Black or Grey

    Shell Material: ABS+PC

    Coax Sizes Supported

    Antenna/RRU Connectors

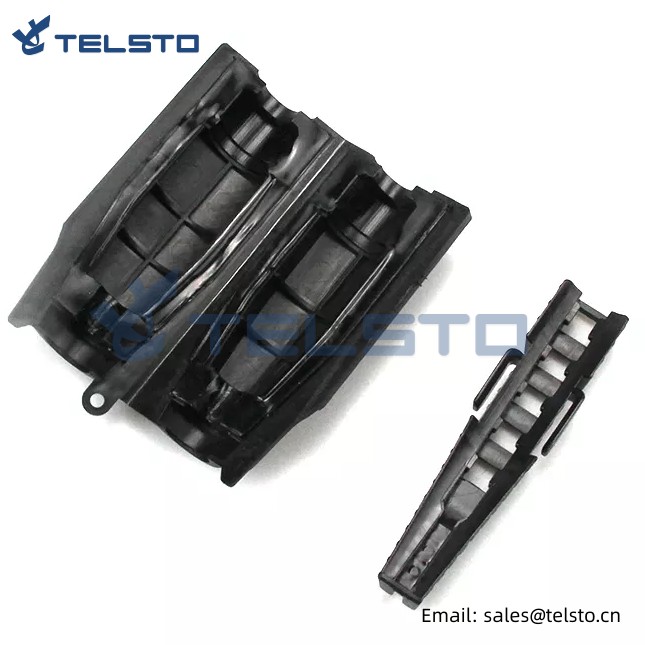

    Weatherproofing Enclosures 12-4310 (2)

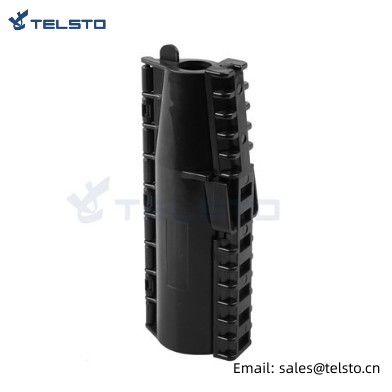

    Weatherproofing Enclosures 12-4310 (3)
    Gel Seal Closure
    Model TEL-GE-1/2-J- connector 4.3-10
    Function Gel Seal Closure for 1/2"jumper to 4.3-10 connector
    Material PC+SEBS
    Size L120mm,W48mm,H30mm
    Input 1/2"jumper(13-17mm)
    Output connector 4.3-10
    Net Weight 76g
    Life/duration More than 10 years
    Corrosion and ultraviolet resistance H2S,passed ultraviolet test
    Ice-snow resistance up to 100mm,no water leakage ,no shape change
    Waterproof level IP68
    Fireproof level HB
    Rainstorm resistance 100E 150mm/h
