Universal Barrel Cushion EPDM Rubber grommet


  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Telsto
  • Match with Hanger: 1-5/8"
  • Material: EPDM
  • Description

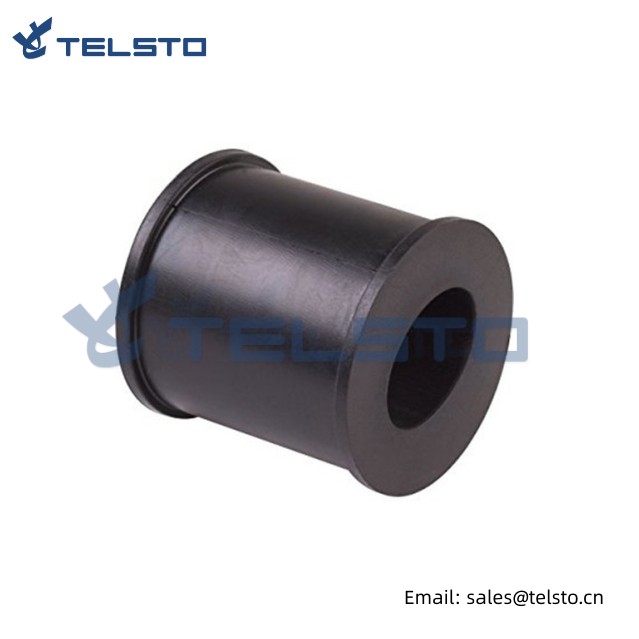

    Universal Barrel Cushion EPDM Rubber grommet (1)

    Telsto Rubber Cushion provides versatility in any application, allowing a single cushion to mount a wide range of cable sizes, reducing material and installation costs. These cushions are constructed of UV-resistant EPDM rubber, allowing for proper functionality in extreme temperature and harsh environmental conditions. Barrel cushions are available in multiple sizes to accommodate industry demands for fiber, power, elliptical and coaxial cable requirements. The unique design allows the cushion to be individually installed utilizing Butterfly Hangers or stacked with Stack able Hangers and Mini Cable Blocks.

    *Application: Clamp Port Solutions

    *Size: Versions for coaxial cable

    *Design: Compression fit round cushions

    *Feature: Dependable seal

    *Material: EPDM rubber

    These EPDM grommets are designed to manager the RF coax cable, elliptical wave guide, power cable, hybrid cable and fiber cable...etc. They are compatible with Commscope's fiber feed or RFS' s HybriFlex cable. They are usually used for wireless cellular sites.

    The grommet fit with snap-in hanger or coax block hanger for easy installation. They allow multiple runs with single attachment point.

    They are manufactured from UV resistant EPDM rubber which is durable in extreme conditions.

    For cable Coaxial, fiber, hybrid cable, CommScope’s fiber feed or RFS’s HybriFlex cable or conduit
    Use with hanger 1-5/8″ snap-in, butterfly hanger or coax blocks
    Color Black
    Material Type EPDM rubber
    UV Resistance Test Method MIL-STD-810E, Procedure 11, Method 505
    UV Resistance, minimum with no degradation ≥1000 hours
    Weather Resistance Test Method 04AS00-03.9.0|IEC 60529:2001, IP66

    Application:

    Black Rubber Cable Hanger Adapter Grommet is used for

    1, Telecom cable

    2, Fiber cable

    3,Coaxial cable

    4, Feeder cable

    5, Hybrid cable

    6, Corrugated cable

    7, Smooth cable

    8, Braid cable

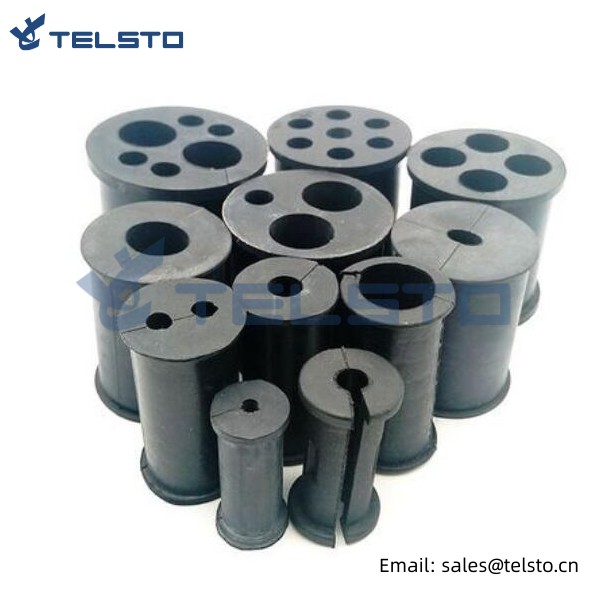

    Universal Barrel Cushion EPDM Rubber grommet (3)
    Product Description Part No.
    Rubber Grommet 1/2" rubber grommet for 5mm cable TEL-RG-1/2(5mm)
    1/2" rubber grommet for 7mm cable TEL-RG-1/2(7mm)
    1/2" rubber grommet for 10mm cable TEL-RG-1/2(10mm)
    7/8" rubber grommet for 6 - 13mm cable TEL-RG-7/8(6-13mm)
    7/8" rubber grommet for 13 - 20mm cable TEL-RG-7/8(13-20mm)
    1-1/4" rubber grommet for 17 - 20mm cable TEL-RG-1-1/4(17-20mm)
    1-5/8" rubber grommet for 22 - 31mm cable TEL-RG-1-5/8(22-31mm)
    1-5/8'' rubber grommet for 17-22mm cable TEL-RG-1-5/8 (17-22mm)
    1-5/8'' rubber grommet for 7 3/8'' cable TEL-RG-158(7x3/8'')
    1-5/8'' rubber grommet for 4x16mm hole cable TEL-RG-158(4x16mm)
    1-5/8'' rubber grommet for 4x10mm, 2x16 mm  hole cable TEL-RG-158(4x10-2x16mm)
    1-5/8'' rubber grommet for 2x21mm hole cable TEL-RG-158(2x21mm)
    1-5/8'' rubber grommet for 3x5mm, 3x10mm  hole cable TEL-RG-158(3x5-3x10mm)
    1-5/8'' rubber grommet for 6x1/4''  hole cable TEL-RG-158(6x1/4'')
    1-5/8'' rubber grommet for 6,8,10,12,14,25mm  hole TEL-RG-158 MLT6
    1-5/8'' rubber grommet for 24-31mm hole cable TEL-RG-158(24-31mm)
    1-5/8'' rubber grommet for 35mm hole cable TEL-RG-158(35mm)
    1-5/8'' rubber grommet for 2x5/8'' hole cable TEL-RG-158(2x5/8'')
    1-5/8'' rubber grommet for 29.7mm hole cable TEL-RG-158(29.7mm)
    1-5/8'' rubber grommet for 39.6mm hole cable TEL-RG-158(39.6mm)
