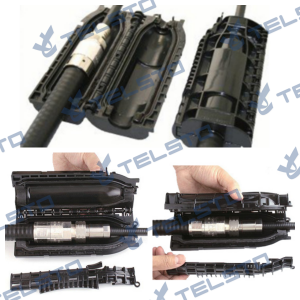

Telsto Series Waterproofing Closure
Telsto series waterproofing closure is a new kind of weatherproofing solutions designed to protect RF connections at wireless communication towers, for instance, 3G or 4G, LTE cell sites where RF connections are getting denser than ever before and the traditional weatherproofing solutions, tapes and mastic are difficult to use in such crowded places.
Telsto series waterproofing closure are re-usable, reusable and tool-less, making it time-saving, cost-effective and installer-friendly weatherproofing solution for the mobile base stations industry. Telsto weatherproofing enclosure find typical applications in covering RF connections on both antennas and RRU(Remote Radio Unit).
Sealing properties of the gel provide a reliable protection over a wide temperature range (-40°C/+ 70°C)
Wraparound and no disconnection of the connector
Quick and easy to install
Easy removable and re-usable
Gel material provides an effective barrier against ingress of water and other contaminant's - IP rating 68
No tape, no mas tics or tools required for installation and removal
Model: TEL-GEL-1-5/8”Feeder to-1/2’’Jumper
Description: Gel Seal Closure products provide a quick and low level installation skill set method to weatherproof “jumper to antenna” and “jumper to feeder” connections.
| Gel Seal Closure | |
| Model | TEL-GEL-1/2J-1-5/8F |
| Function | Gel Seal Closure for 1/2"jumper to 1-5/8"feeder |
| Material | PC+SEBS |
| Size | L200mm,W88mm,H60mm |
| Input | 1/2"jumper(13-17mm) |
| Output | 1-5/8"feeder(35-40mm) |
| Net Weight | 300g |
| Life/duration | More than 10 years |
| Corrosion and ultraviolet resistance | H2S,passed ultraviolet test |
| Ice-snow resistance | up to 100mm,no water leakage, no shape change |
| Waterproof level | IP68 |
| Fireproof level | HB |
| Rainstorm resistance | 100E 150mm/h |
