Sliding Fiber Optic Patch Panel

Sliding Fiber Optic Patch Panel


  • Type: Racks & Enclosure
  • Brand Name: Telsto/OEM
  • Mode: 19" Rack Mount ODF
  • Type: Sliding Type
  • Adaptar: Simplex and duplex FC, LC, SC, ST
  • Environmental temperature: -25 - 55°C
  • Material: Cold-rolling steel
  • Use: FTTH
  • Origin: Shanghai
  • Description

    * The proper sealing for dust protection structure
    * The splicing storage is the cassette organizer system
    * The drawer is slide out for splicing or removable for initial pigtail installation.
    * Enough space to coil up excess length of cables.

    Application

    The product can be used on the terminal of the optical cables, different types and structures, the diameter of which are within 18mm(∮) tray.

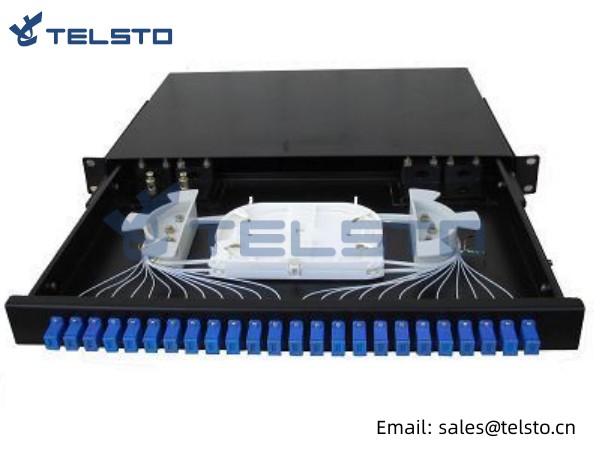

    1U SC24

    1701927190130

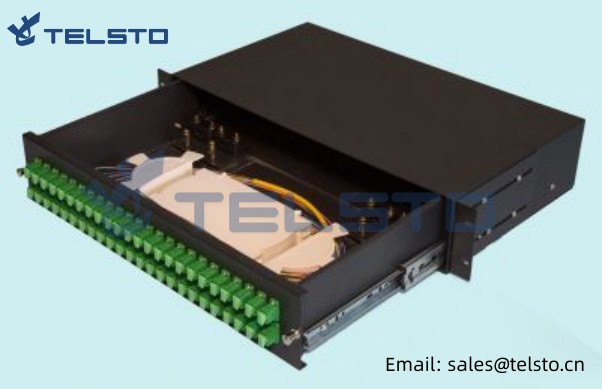

    2U SC48

    1701927211839

    Structural Features.



    ● All property indexes are in accordance with National YD/T925—1997 Standard.
    ● The body make use of cold rolling steel sheet Strong adhesive force, artistic and durable.
    ● Distinctive design of 1-2 cable entrance and fiber exit of 1-24 cores assures flexibility.
    ● Cable entrance are sealed with oil resistance NBR to increase the flexibility. Users can choose to prick the entrance and exit.
    ● Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.



    Main technical Specifications

    ● External Size: (length×width×height) 430x240x1U/2U
    ● Weight:3.5kg
    ● Optical fiber winding radius: ≥40mm
    ● Extra loss of fiber tray:none
    ● Fiber length left in tray:≥1.6m
    ● Fiber capacity: 48 cores
    ● Working temperature: - 400C ~ + 600C
    ● Lateral pressure-resistance: 500N
    ● Shock-resistance: 750N

    Packing List(according the final cores changes ,this is th e24cores)

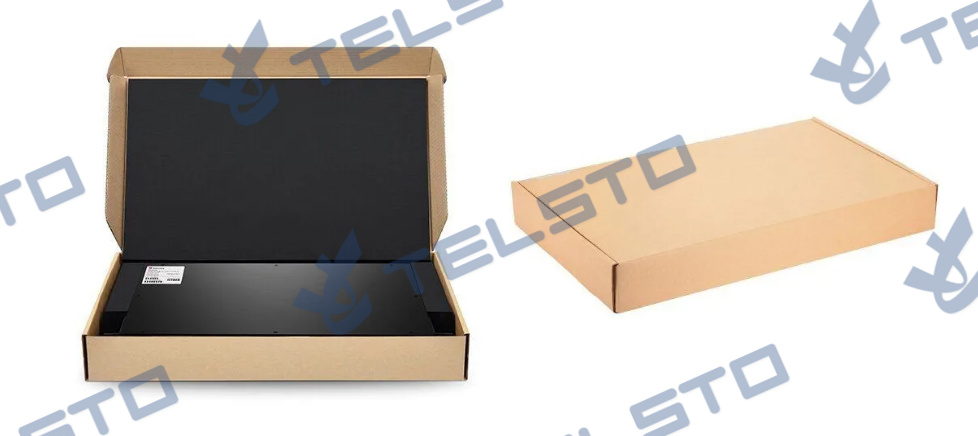

    1701157510411

    ● Terminal case main body: 1 piece
    ● Polishing sand cloth: 1 pcs
    ● Melting and connecting mark: 1 pcs
    ● Heat shrinkable sleeve: 2~24 pcs
    ● Tie: 4~24 pcs
