Single Mode Simplex LC-LA Optic Fiber Patch Cord

Customized 1m/2m/3m/5m Multi Mode Duplex Optical Fiber Patch Cord LC UPC to LC APC

Brand Name: Telsto

Product Name: Single Mode Simplex LC-LA Optic Fiber Patch Cord

Application: FTTH FTTB FTTX Network

Fiber Type: Single mode

Connector Type: SC FC ST LC UPC APC

Material: PVC, LSZH

Wavelength: 1310/1550nm

Insertion Loss: IL<0.3db

Return Loss: 50dB

Certification: ISO9001:2018

No. of Fiber: 2

Origin: Shanghai

Send email to us

Description

Fiber Optic Patch Cord is important of optical network.They have same or different connectors which are installed on the end of fiber optic cable.The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Feature

Low insertion loss and return loss

Ferrule end surface pre-domed

Excellent mechanical endurance

Excellent environmental stability

Good in repeatability

Application

1. Access Network

2. Telecom/CATV

3. Systems FTTX

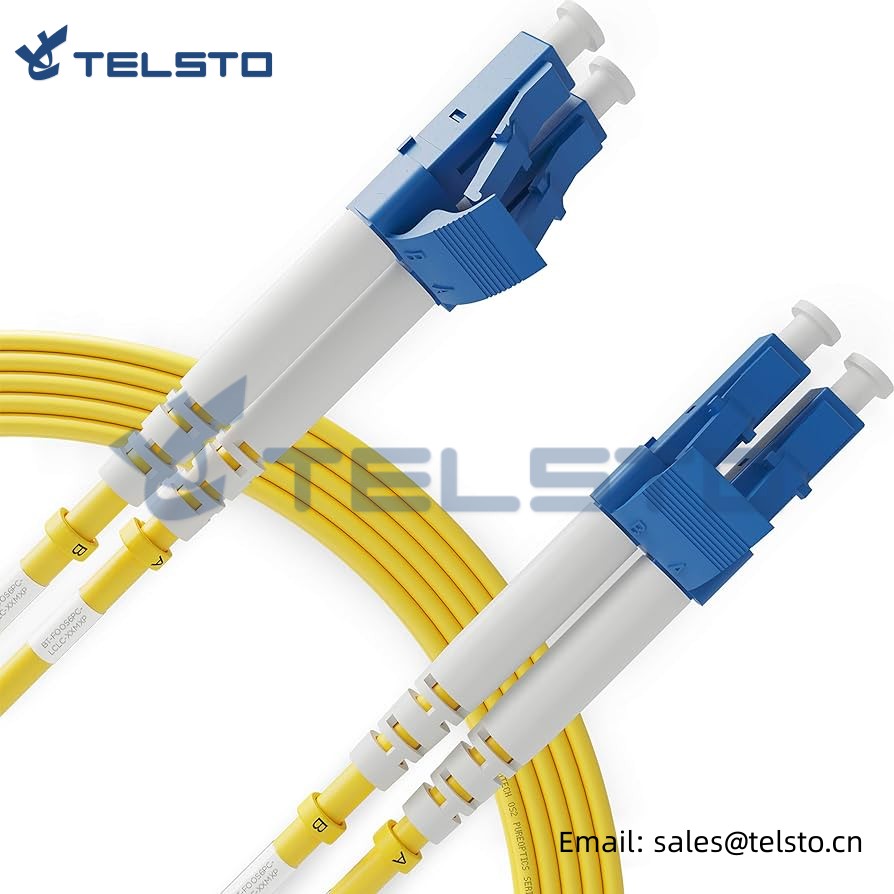

Customized 1m2m3m5m Multi Mode Duplex Optical Fiber Patch Cord LC UPC to LC APC (2)

Specification

Parameter	Unit	Value
Connector Type		FC/UPC,FC/APC,SC/UPC,LC/UPC,LC/APC,ST/PC,MPO
Fiber Type		Multi-Mode	Single Mode
Insertion Loss	dB	Max.≤0.2	Max.≤0.3
Return Loss(Typ.)	dB	≥36(no APC connector)	/PC	/UPC	/APC
			≥45	≥50	≥60
Test Wavelength	nm	850/1310nm	1310/1550nm
Repeatability	dB	≤0.1
Interchangeability	dB	≤0.2
Connection Durability	times	≥1000
Operating/Storage Temperature	℃	-40~+80
