Single mode fiber patch cord splitter 1×2 communication optical cable

Single mode fiber patch cord splitter 1×2 communication optical cable


  • Model Number: single mode fiber optic cable
  • Type: Fiber Optic Cable
  • Number of Conductors: 2
  • Name: optical cable
  • connectors: FC , SC , FDDI , E2000 , Sc/pc
  • Application: communication,CATV ,fiber LAN
  • humidity: 85%
  • Insertion Loss: 0.1dB
  • three directions: 2 hours /insertion loss
  • frequency: 10Hz~55Hz
  • Swing: 1.52mm
  • Tensility -resistance: 0.23kg pull,1.0kg insertion
  • Reference standard: TA-NWT-001209 insertion loss
  • Origin: Shanghai
  • Description

    Fiber Patch Cord Optical cable Application:

    fiber communication optical cable network

    fiber broadband access network

    CATV , fiber instruments, fiber LAN

    Fiber Patch Cord Optical cableSummary:

    About Fiber optic connector , the ITU call it as a kind of passive light component which can connect two or more fiber lines stably but not always. It can make a close connection for fiber cable and make a wonderful transmission for the light energy .

    Fiber Patch Cord Optical cable Optional types:

    FC , SC , ST , LC , MTRJ , MU , SMA , FDDI , E2000 , Sc/pc

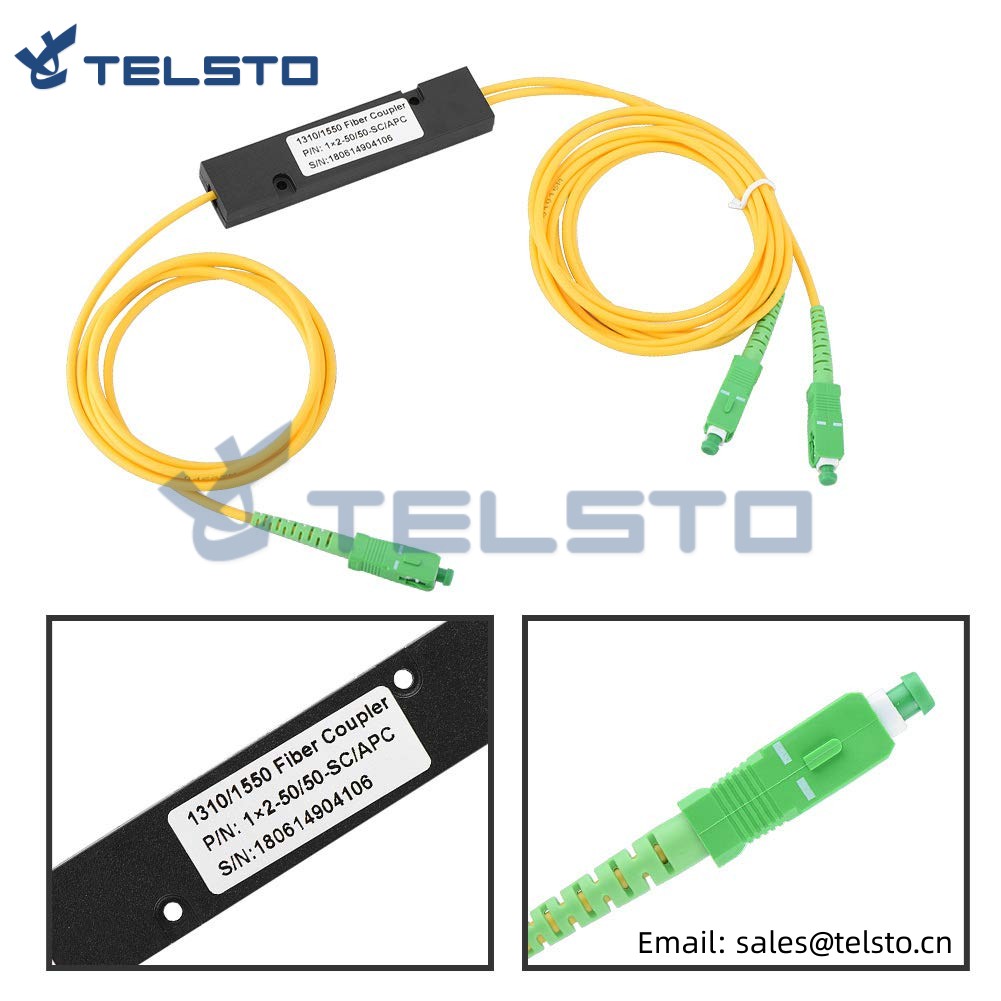

    single mode fiber patch cord splitter 1x2 communication optical cable (1)

    Specifications

    type Insertion Loss

    NATIONAL

    Insertion Loss

    ENTERPRISE

    Insertion Loss OUR Return Loss

    NATIONAL

    Return Loss

    ENTERPRISE

    Return Loss OUR
    PC ‹ 0.3dB ‹ 0.2dB ‹ 0.1dB

    › 40 dB

    › 45 dB

    › 45 dB

    UPC ‹ 0.3dB ‹ 0.2dB ‹ 0.1dB

    › 40 dB

    › 45 dB

    › 45 dB

    APC ‹ 0.3dB ‹ 0.2dB ‹ 0.1dB

    › 40 dB

    › 45 dB

    › 45 dB

    Technical dependability data (test)

    Test item Test condition
    Wet-resistance Temperature:85&ordm:C/relative humidity 85%/14days/insertion loss ‹ 0.1dB
    Temperature change Temperature-40&ordm:C~+75&ordm:C/relative humidity 10%-80% /42 repetitions/14days/ insertion loss ‹ 0.1dB
    Put in water temperature43ºC, /PH5.5,/ 7days /insertion loss‹0.1dB
    vibrancy Swing1.52mm/frequency 10Hz~55Hz,/ X?Y?Z three directions:2 hours /insertion loss?0.1dB
    Load bend 0.454kgload/circle 100 insertion loss‹0.1dB
    load torsion 0.454kgload/10 circles/ insertion loss ‹0.1dB
    Tensility -resistance 0.23kg pull (nakedness fiber),1.0kg(with shell ) insertion‹0.1dB
    strike High 1.8m,three directions ,8 in each direction/insertion loss ‹ 0.1dB
    Reference standard Bellcore TA-NWT-001209 insertion loss ‹ 0.1dB
