Simplex optical fiber patch cords SC UPC to LC UPC customized patch cord cable

Simplex optical fiber patch cords SC UPC to LC UPC customized patch cord cable


  • Type: Fiber optic patch cord
  • Model Number: fiber patch cord
  • Brand Name: TELSTO /OEM/ODM
  • Product Name: Simplex optical fiber patch cords
  • Cable Diameter: 3.0MM; 2.0MM; 0.9MM
  • Polishing: PC, UPC and APC
  • OM type: 9/125UM
  • Connector type: SC; FC; LC; ST; MU etc.
  • Cable type: PVC; LSZH
  • Application: CATV, Cabling system, ODF , Etc
  • Ferrule: Reinforced Zirconium dioxide
  • Core quantity: Simplex; Duplex
  • Cable length: 1M; 2M; 3M
  • Origin: Shanghai
  • Description

    Telsto offers a wide range of high quality fiber optic patch cables. Practically every request and every requirement is covered by the broad range of cable types. The product range includes OM1, OM2, OM3 and OS2 versions. Telsto fiber optic installation cables guarantee the best performance and fail-safety. All cables are single packed a polybag with test report.

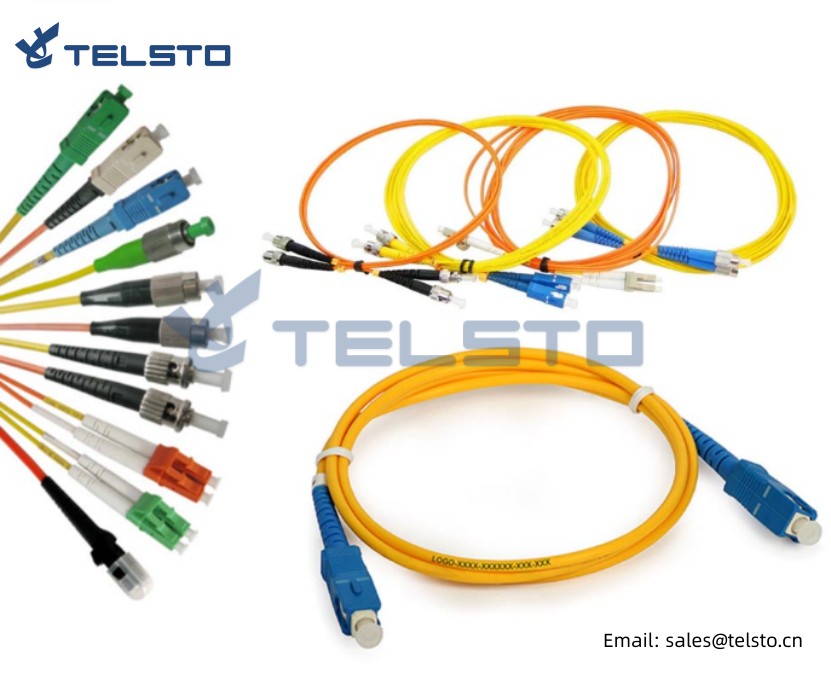

    Simplex optical fiber patch cords SC UPC to LC UPC customized patch cord cable (3)

    Application

    1; Telecommunication networks;

    2; Local area networks; CATV;

    3; Active device termination;

    4; Data center system networks;

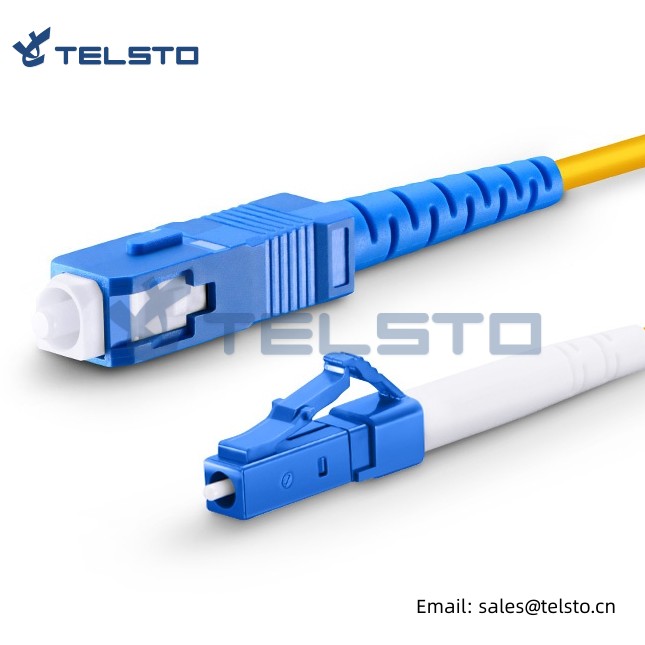

    Simplex optical fiber patch cords SC UPC to LC UPC customized patch cord cable (1)

    Products Description

    Style LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC        Duplex MTRJ/Female, MTRJ/Male
    Fiber Type 9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125,

    10G (Multimode) OM3

    Cable Type Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber

    PVC or LSZH

    Polishing Manner UPC,SPC,APC (8°& 6°)
    Insertion Loss ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
    Return Loss (For Singlemode) UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB)

    Tested by JDS RM3750

    Repeatability ±0.1dB
    Operating Temperature -40C to 85C
    Geometry Requirement (For Singlemode) Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1
