Sc UPC-Sc UPC Black FTTH Indoor outdoor Drop Cable Patch Cord

Armored Fiber Optic Cable Patch


  • Model Number: TEL-TYTX1
  • Brand Name: TELSTO
  • Product name: Fiber Optic Patch Cord
  • Color: Customized Colors
  • Application: FTTH FTTxFTTB Network
  • Fiber Optic Cable Patch Type: Ordinary Fiber Cable Patch&Armored Fiber Cable Patch
  • Material: PVC LSZH
  • Fiber Type: SM/MM/OM3
  • Wavelength: 850nm/1310nm/1550nm
  • Connector Type: SC FC LC ST
  • Length: Customized Lengths(1m/2m/3m...+1
  • Service: OEM ODM Accept
  • Origin: Shanghai
  • Description

    Telsto Fiber Optic Patch Cords are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and a precision moulded polymer housing provides consistent long-term mechanical and optical performance.

    1.Price-Competitive

    2.Low Insertion Loss & PDL

    3.Factory-terminated and Tested

    4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber

    5.Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP

    6.Polishing Options: PC/UPC/APC

    7.Feature Connector with Ceramic Ferrules

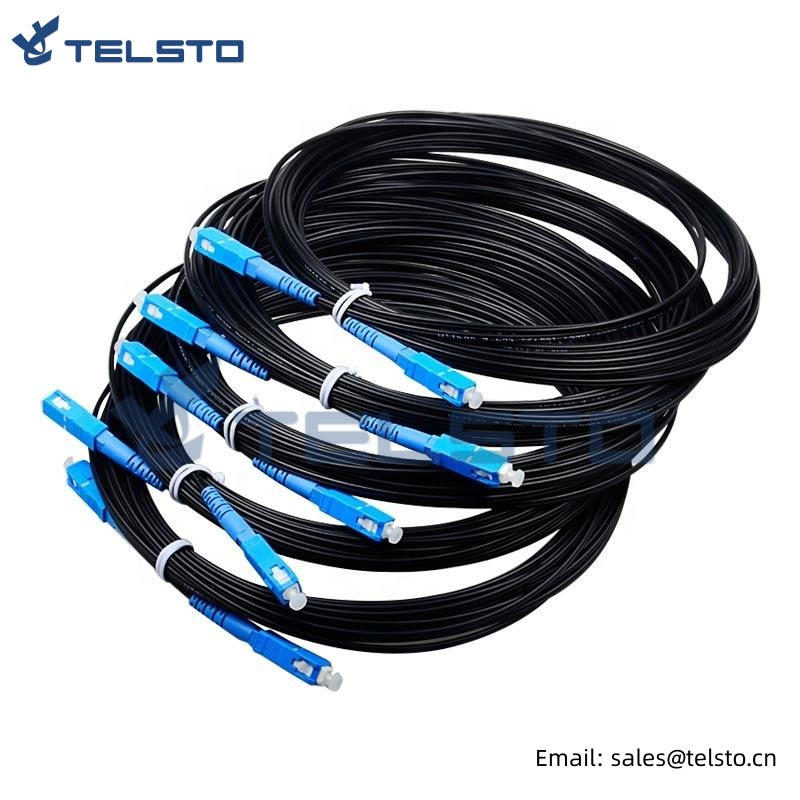

    Sc UPC-Sc UPC Black FTTH Indoor outdoor Drop Cable Patch Cord (3)

    Application

    1.Access Network

    2.Telecom/CATV Systems

    3.FTTx

    Fiber optic outer diameter

    φ0.9mm, φ2.0mm, φ3.0mm available

    Insertion loss

    ≤0.2dB

    Return loss

    PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB

    Interchangeability test

    ≤0.2dB

    Vibration test

    ≤0.1dB (10-60Hz, 1.5mm amplitude)

    Tensile strength test

    ≤0.1dB (0-15Hg tension, except for φ0.9mm fiber)

    High-temperature test

    ≤0.2dB (+85℃, continuous for 100 hours)

    Low-temperature test

    ≤0.2dB (-40℃, continuous for 100 hours)

    Temperature cycling test

    ≤0.2dB (-40℃ to +85℃, after 5 cycles)

    Humidity test

    ≤0.2dB (+25℃ to +65℃, relative humidity 93%, after 100 hours)



    Common connectors

    SC (standard connector)/LC (small form-factor connector)/FC (ferrule connector)/ST (straight tip connector)

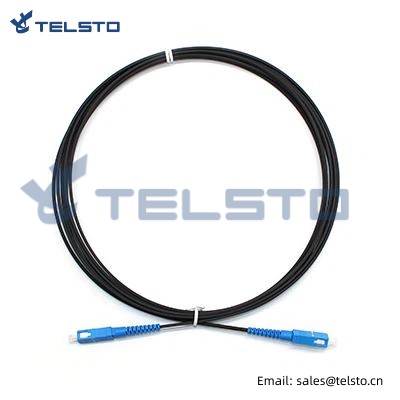

    Sc UPC-Sc UPC Black FTTH Indoor outdoor Drop Cable Patch Cord (1)
