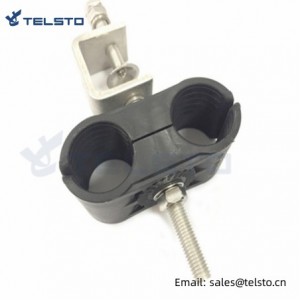

RFS Stainless Steel Feeder Cable clamp 7/8”
Feeder clamps are widely used in site installation to fix RF coaxial feeder cables onto base towers (BTS). Telsto feeder clamps are designed for different BTS site installation and kinds of antenna system. The material of these products is high standard stainless steel and high quality plastics.

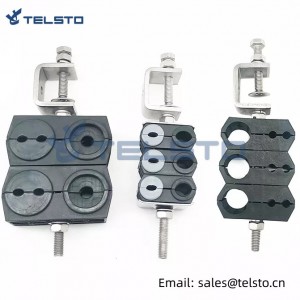

*Various stainless steel feeder clamps are applicable for fixing feeders.
*Made of high quality anti-acid steel.
*Modified plastics and non-rusting.
It's suit for clamp of all kinds feeder cable.
Anti-corrosive press feeder
Good mechanical performance
Good-cost performance, low the cost effectively
Product characteristic:
well anti corrosion
well mechanical property
well performance ratio
Suitable for the 1/4",3/8",1/2",7/8",1-1/4",1-5/8",and 2-1/4" cable.
Type:through type,along the wall type,anchor ear type,hook type;hose clamp type,leakage cable type
Made of stainless anti-acid steels with high quality for microwave and mobile systems.
Anti-corrosion under various weather conditions
| Item Name: | Feeder Cable Clamp |
| Clamp Class: | Through Type |
| Plastic Material: | Polypropylene (PP) / ABS |
| Metal Material: | Stainless Steel |
| Clamp Stack: | Single,Double,Triple,Fourfold Stack |
| Match Cable: | 1/4",3/8",1/2",7/8",1-1/4",1-5/8" ,2-1/4 Feeder |
| Match Cable: | RG8,RG213,LMR400 Coaxial Cable |
Technical Specifications
Product Type For 7/8’’ cable, 2 holes
Hanger Type Single type
Cable Type Feeder Cable
Cable Size 7/8 inch
Holes/Runs 2 holes
Configuration Angle member adapter
Thread 2x M8
Material Metal part: 304SST
Plastic parts: PP
Consist of :
Angle adapter 1pc
Thread 2pcs
Bolts & nuts 2sets
Plastic saddles 6pcs
PACKING REFERENCE:
