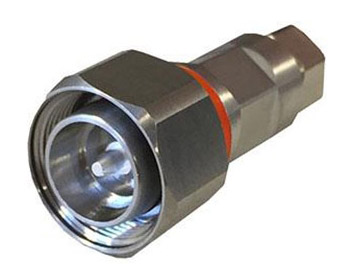

RF connector 4.3/10 Male straight for1/4″ superflex cable, clamp type, for telecommunication


  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Telsto
  • Model Number: TEL-4310M.14S.RFC
  • Type: 4.3-10 Connector
  • Application: RF
  • Gender: Male
  • Frequency: DC-3GHz
  • Dielectric Resistance: ≥5000MΩ
  • Description

    Specifications

    Product Support

    Note

    1.  These characteristics are typical but may not apply to all connectors.

    2. OEM and ODM are available.

    TEL-4310M.14S-RFC

    Our Services

    Welcome to our company, which is committed to providing customers with the best quality services. We are well aware of customers' needs and requirements, so our service philosophy is customer-centric.
    Our company has an efficient, professional and experienced team. We can respond to any inquiries from customers within 24 hours. Whether you are looking for customized design or welcome OEM and ODM, we can provide you with the best solution. Our engineers and employees are trained to provide customers with unique solutions to ensure that your product design can be launched as soon as possible and meet your market needs.
    Our delivery time is very fast, and order processing is fast and efficient. We have rich experience in doing business with large listed companies, so we can provide you with the most professional services to ensure the most perfect results of your order processing.
    We also provide free samples so that you can actually test our products to ensure that your products meet your requirements. We also provide 100% payment and quality trade guarantee, so that you have no worries.
    We firmly believe that under our service, you will get the most perfect experience and the best quality products. If you are looking for the best brand service, please contact us. We will provide you with the most professional service to ensure that your products succeed in the market!

    Related

    Product Detail Drawing05
    Product Detail Drawing02
    Product Detail Drawing06
    Product Detail Drawing04

  • Previous:
  • Next:

  • TEL-4310M.14S-RFC01

    Model: TEL-4310M.14S-RFC

    Description

    4.3-10 Male connector for 1/4″ Superflexible Cable

    Material and Plating
    Center contact Brass / Silver Plating
    Insulator PTFE
    Body & Outer Conductor Brass / alloy plated with tri-alloy
    Gasket Silicon Rubber
    Electrical Characteristics
    Characteristics Impedance 50 Ohm
    Frequency Range DC~3 GHz
    Insulation Resistance ≥5000MΩ
    Dielectric Strength ≥2500 V rms
    Center contact resistance ≤0.4mΩ
    Outer contact resistance ≤1.0mΩ
    Insertion Loss ≤0.1dB@3GHz
    VSWR ≤1.1@-3.0GHz
    Temperature range  -40~85℃
    PIM dBc(2×20W) ≤-160 dBc(2×20W)
    Waterproof IP67

    Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable

    Structure of connector: ( Fig1 )
    A. front nut
    B. back nut
    C. gasket

    Installation Instructions001

    Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
    1. The end surface of inner conductor should be chamfered.
    2. Remove impurities such as copper scale and burr on the end surface of the cable.

    Installation Instructions002

    Assembling the sealing part: Screw the sealing part in  along the outer conductor of the cable as shown by the diagram ( Fig3).

    Installation Instructions003

    Assembling the back nut  (Fig3).

    Installation Instructions004

    Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
    1. Before screwing, smear a layer of lubricating grease on the o-ring.
    2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.

    Installation Instructions005
