RF connector 4.3/10 female straight for 1/2″ feeder cable
4.3-10 connectors are designed to meet the rising performance needs of mobile network equipment e.g., to connect the RRU to the antenna. The small size and low weight of these connectors do justice to the miniaturization of mobile radio network components. Three different coupling mechanisms of the plug connectors screw, quick-lock/push-pull and hand-screw types are mate able with all jack connectors.
Applications
Antennas/ Base station /Broad cast /Cable assembly /Cellular /Components /Instrumentation/Microwave Radio/Mil-Aerosol PCS/Radar /Radios/Satcom /Surge protection WLAN
FAQ
1. What about your quality?
All products we supply are strictly tested by our QC department or third party inspection standard or better before shipment. Most of goods such as coaxial jumper cables, passive devices, etc. are 100% tested.
2. Can you offer samples to test before placing formal order?
Sure, free samples can be provided. We are also glad to support our clients to develop new products together to help them to develop the local market.
3. Do you accept customization?
Yes, we are customizing products according to the customer's requirements.
4. How long is the delivery time?
Usually we keep stocks, so delivery is fast. For bulk orders, it will be up to the demand.
5. What is the shipping methods?
Flexible shipping methods per customer’s urgency, such as DHL, UPS, Fedex, TNT, by air, by sea are all acceptable.
6. Can our logo or company name can be printed on your products or the packages?
Yes, OEM service is available.
7. Is the MOQ fixed?
MOQ is flexible and we accept small order as trial order or sample testing.
Related
RF Connector

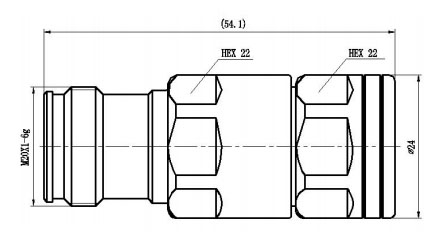

Model: TEL-4310F.12-RFC
Description
4.3-10 Female connector for 1/2″ flexible RF cable
| Material and Plating | |
| Center contact | Brass / Silver Plating |
| Insulator | PTFE |
| Body & Outer Conductor | Brass / alloy plated with tri-alloy |
| Gasket | Silicon Rubber |
| Electrical Characteristics | |
| Characteristics Impedance | 50 Ohm |
| Frequency Range | DC~3 GHz |
| Insulation Resistance | ≥5000MΩ |
| Dielectric Strength | ≥2500 V rms |
| Center contact resistance | ≤1.0 mΩ |
| Outer contact resistance | ≤1.0 mΩ |
| Insertion Loss | ≤0.1dB@3GHz |
| VSWR | ≤1.1@-3.0GHz |
| Temperature range | -40~85℃ |
| PIM dBc(2×20W) | ≤-160 dBc(2×20W) |
| Waterproof | IP67 |
Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable
Structure of connector: ( Fig1 )
A. front nut
B. back nut
C. gasket
Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
1. The end surface of inner conductor should be chamfered.
2. Remove impurities such as copper scale and burr on the end surface of the cable.
Assembling the sealing part: Screw the sealing part in along the outer conductor of the cable as shown by the diagram ( Fig3).
Assembling the back nut (Fig3).
Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
1. Before screwing, smear a layer of lubricating grease on the o-ring.
2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.
