N Male to N Male Right Angle Adapter N Type Male RF Connector RF Coaxial Cable Adapter Connector
Telsto RF Connector has an operational frequency range of DC-3 GHz, offers excellent VSWR performance and Low Passive Inter modulation. This makes it ideally suited for use in cellular base stations, distributed antenna systems (DAS) and small cell applications.
Coax adapters are the perfect way to quickly change the gender or connector type on an already terminated cable.
Telsto RF Coaxial N male to N male right angle adaptor connector design with a 50 Ohm impedance. It is manufactured to precise RF adapter specifications and has a maximum VSWR of 1.15:1.
Both crimp and clamp cable termination processes are used for this series.
Temperature Range | -55~+155°C (PE Cable -40~+85°C) |
Impedance | 50Ω |
Vibration | 100m/S2 (10~500Hz), 10g |
Frequency Range | DC-11GHz |
Insertion Loss | <= 0.24dB/6GHz |
Withstanding Voltage | 2500V r.m.s at sea level |
Working Voltage | 1000Vr.m.s at sea level |
Insulation Resistance | >= 5000 MΩ |
Coupling nut retention force | 450N |
Durability | >= 500(cycles) |
Contact resistance | Center Contact <=1mΩ |
Outer Contact <=1mΩ | |
Voltage Standing Wave Ratio | Straight <= 1.15/6GHz |
Right angle <= 1.25/6GHz |
● N type male to N male adapter has a right angle body. This right angle type N coax adapter is a 90 degree right angle RF elbow adapter.
● Type: N type male to male 90 degree right angle connector, M/M Adapter, RF Coax Coaxial Adapter.
● Widely applies to radio equipment and instruments for connecting RF coaxial cables. It can exchange with the international like product.
● Color : Silver Tone, Nickel Plated.
Product | Description | Part No. |
RF Adapter | 4.3-10 Female to Din Female Adapter | TEL-4310F.DINF-AT |
4.3-10 Female to Din Male Adapter | TEL-4310F.DINM-AT | |
4.3-10 Male to Din Female Adapter | TEL-4310M.DINF-AT | |
4.3-10 Male to Din Male Adapter | TEL-4310M.DINM-AT |
Model: TEL-NM.NMA-AT
Description

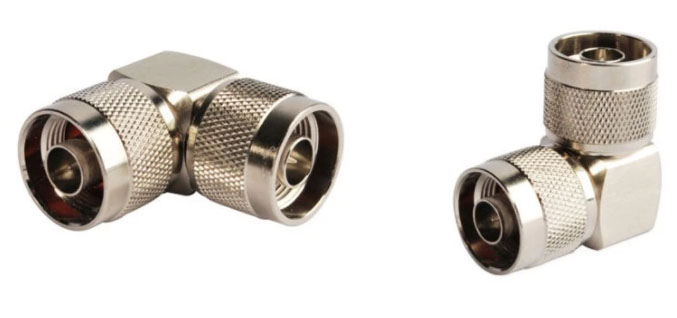

N Male to N Male Right Angle RF Adapter
Material and Plating | |
Center contact | Brass / Silver Plating |
Insulator | PTFE |
Body & Outer Conductor | Brass / alloy plated with tri-alloy |
Gasket | Silicon Rubber |
Electrical Characteristics | |
Characteristics Impedance | 50 Ohm |
Frequency Range | DC~6 GHz |
Insulation Resistance | ≥5000MΩ |
Dielectric Strength | ≥2500 V rms |
Center contact resistance | ≤1.0 mΩ |
Outer contact resistance | ≤0.25 mΩ |
Insertion Loss | ≤0.15dB |
VSWR | ≤1.15 straight; ≤1.25 right angle |
Temperature range | -40~85℃ |
PIM dBc(2×20W) | ≤-160 dBc(2×20W) |
Waterproof | IP67 |
Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable
Structure of connector: ( Fig1 )
A. front nut
B. back nut
C. gasket
Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
1. The end surface of inner conductor should be chamfered.
2. Remove impurities such as copper scale and burr on the end surface of the cable.
Assembling the sealing part: Screw the sealing part in along the outer conductor of the cable as shown by the diagram ( Fig3).
Assembling the back nut (Fig3).
Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
1. Before screwing, smear a layer of lubricating grease on the o-ring.
2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.
