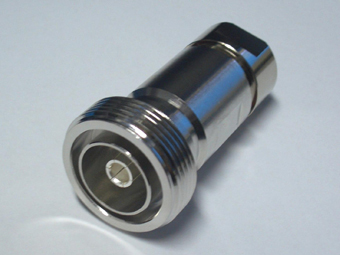

RF 7/16 DIN Female Straight Connector For 1/2″ Corrugated Cable
7/16 Din connector is specially designed for outdoor base stations in mobile communication (GSM, CDMA, 3G, 4G) systems, featuring high power, low loss, high operating voltage, perfect waterproof performance and applicable to various environments. It is easy to install and provides reliable connection.
Telsto 7/16 Din connectors are available in male or female gender with 50 Ohm impedance. Our 7/16 DIN connectors are available in straight or right angle versions, as well as, 4 hole flange, bulkhead, 4 hole panel or mount less options. These 7/16 DIN connector designs are available in clamp ,crimp or solder attachments methods.
Features And Benefits
● Low IMD and low VSWR provides improved system performance.
● Self-flaring design ensures ease of installation with standard hand tool.
● Pres-assembled gasket protects against dust (P67) and water (IP67).
● Brass/Ag plated center conductor and Brass/Teri-alloy plated outer conductor provide a high conductivity and corrosion resistance.
Applications
● Wireless Infrastructure
● Base Stations
● Lightning Protection
● Satellite Communications
● Antenna Systems
Related
Model: TEL-DINF.12-RFC
Description
DIN Female connector for 1/2″ flexible cable
| Material and Plating | |
| Center contact | Brass / Silver Plating |
| Insulator | PTFE |
| Body & Outer Conductor | Brass / alloy plated with tri-alloy |
| Gasket | Silicon Rubber |
| Electrical Characteristics | |
| Characteristics Impedance | 50 Ohm |
| Frequency Range | DC~3 GHz |
| Insulation Resistance | ≥5000MΩ |
| Dielectric Strength | 4000 V rms |
| Center contact resistance | ≤1.0mΩ |
| Outer contact resistance | ≤0.4 mΩ |
| Insertion Loss | ≤0.08dB@3GHz |
| VSWR | ≤1.08@-3.0GHz |
| Temperature range | -40~85℃ |
| PIM dBc(2×20W) | ≤-160 dBc(2×20W) |
| Waterproof | IP67 |
Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable
Structure of connector: ( Fig1 )
A. front nut
B. back nut
C. gasket
Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
1. The end surface of inner conductor should be chamfered.
2. Remove impurities such as copper scale and burr on the end surface of the cable.
Assembling the sealing part: Screw the sealing part in along the outer conductor of the cable as shown by the diagram ( Fig3).
Assembling the back nut (Fig3).
Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
1. Before screwing, smear a layer of lubricating grease on the o-ring.
2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.
Welcome to our product introduction. We are honored to introduce our 7/16 Din connector to you!
Our 7/16 Din connector is designed for outdoor base stations in mobile communication systems, and is applicable to various mobile communication standards such as GSM, CDMA, 3G, 4G, etc. It has high power, low loss, high working voltage, perfect waterproof performance, and can operate stably in various environments.
Our 7/16 Din connectors have advanced design and manufacturing technology to ensure high quality and reliability. It is easy to install and reliable to connect, and can complete installation and maintenance in a short time, thus improving efficiency and reducing costs.
Our 7/16 Din connector has considered various application scenarios in the design process, ensuring its applicability. Its waterproof performance enables it to work normally under various adverse weather conditions. In addition, it also has the characteristics of high working voltage and low loss, and can maintain the signal quality and stability during long distance transmission.
In general, our 7/16 Din connector is a high-quality connector designed for outdoor base stations in mobile communication systems. No matter what environment you work in, we can provide efficient connection solutions. If you are interested in our products, please contact us for more information.
