Pre-connectorized SC UPC APC 1 2 Core Indoor Outdoor Ftth Fiber Optic Drop Cable Patch Cord

Pre-connectorized SC UPC APC 1 2 Core Indoor Outdoor Ftth Fiber Optic Drop Cable Patch Cord


  • Model Number: Drop cable
  • Type: Drop cable
  • Number of Conductors: 1
  • Jacket colour: Black, White
  • Connector type: SC/ UPC SC/AP C
  • Clean end face ferrule: 100% clean,no dust, no water,no scratch
  • Cable structure: 3*2 butterfly flat type, 5*2mm aerial self-support type
  • Insertion loss: <0.2dB(Typical), 0.3dB (Max)
  • Return Loss: >50dB
  • Outer sheath: 1310nm/1490nm/1550nm
  • Outer sheath: LSZH
  • Certification: G657A1
  • Certification: CE/ROHS/ISO9001
  • Origin: Shanghai
  • Description

    FTTH fiber patch cord SM G657A1 anti bending 10M 30M 50M 100M LSZH.

    2.0x5.0mm/ 2.0x3.0mm FTTH drop cable, 2 pcs FRP, blue colored fiber inside, LSZH jacket, assembled with SC / LC / FC / ST connectors.

    Features

    1 The connectors are comply with IEC, Telcordia-GR-326-Core standards;

    2 Different size & color boot option;

    3 Low insertion loss; High return loss;

    4 100% interferometer measurement;

    5 Typical IL≤0.20dB;

    6 Max IL≤0.25dB;

    7 RL SM≥50dB, AP C≥60dB, MM≥20dB.

    8 Durability(500mating time): IL≤0.25dB.

    Application

    1 Telecommunication networks;

    2 Local area networks; CATV;

    3 Active device termination;

    4 Data center system networks

    Product Parameters

    NO

    Item

    Specifications
    G.657A1

    1

    Cladding Diameter (μm) 125±0.7

    2

    Cladding non-circularity (%) ≤0.7

    3

    Core-cladding concentricity error (μm) ≤0.5

    4

    Mode field Diameter @1310 (μm) (8.6~9.5)±0.4

    5

    Cladding -coating concentricity error (μm) ≤12.0

    6

    Coating Diameter(μm) 245±0.5

    7

    Fiber Cutoff Wavelength (nm) λccf ≤1260

    8

    Attenuation(max.) (dB/km) 1310nm ≤0.4
    1550nm ≤0.3





    9





    Bend Loss (dB)

    Bend Radius 10 15
    Bend Turns 1 10
    1550nm ≤0.75 ≤0.25
    1625nm ≤1.5 ≤1.0
    Items Unite Specifications
    Minimum allowable tensilestrength(N)short term N 600
    Minimum allowable tensilestrength(N)long term N 200
    Crush(Long Term) N/10cm 300
    Crush(Short Term) N/10cm 1000
    Min. Bend Radius(Dynamic) mm 20D
    Min. Bend Radius(Static) mm 5D
    Operating Temperature -20~+60
    Storage Temperature -20~+60

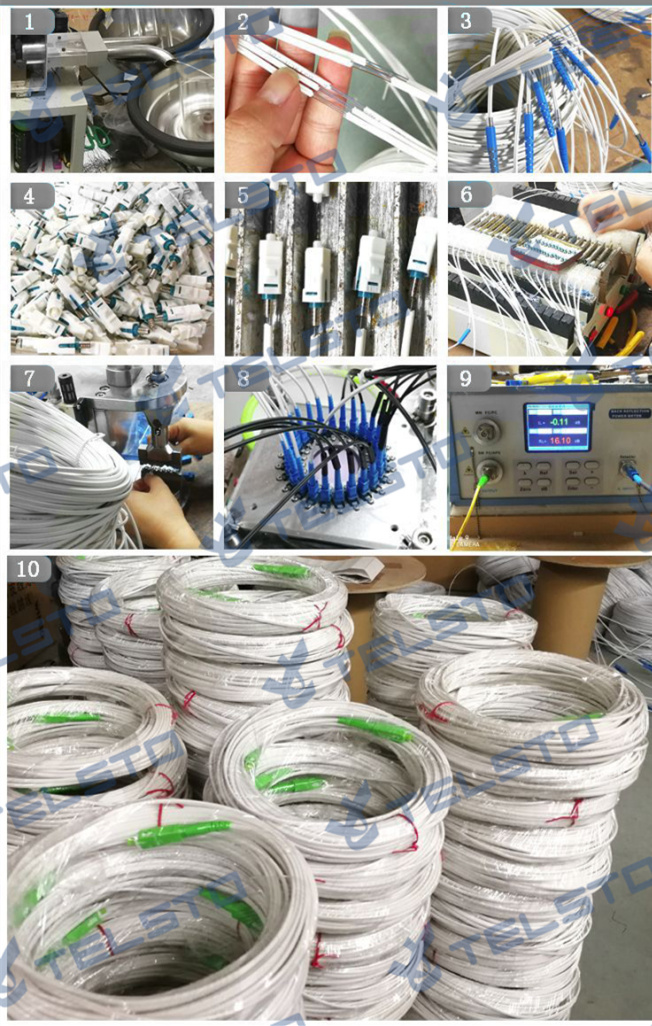

    Pre-connectorized SC UPC APC 1 2 Core Patch Cord (2)
