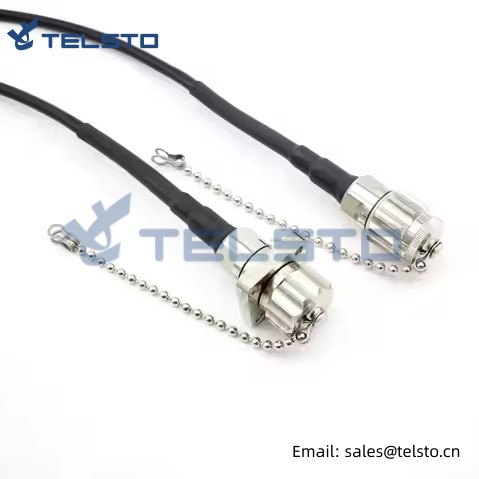

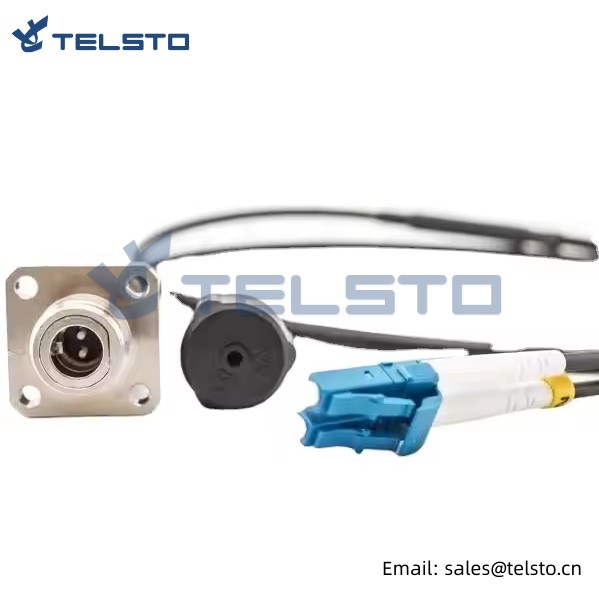

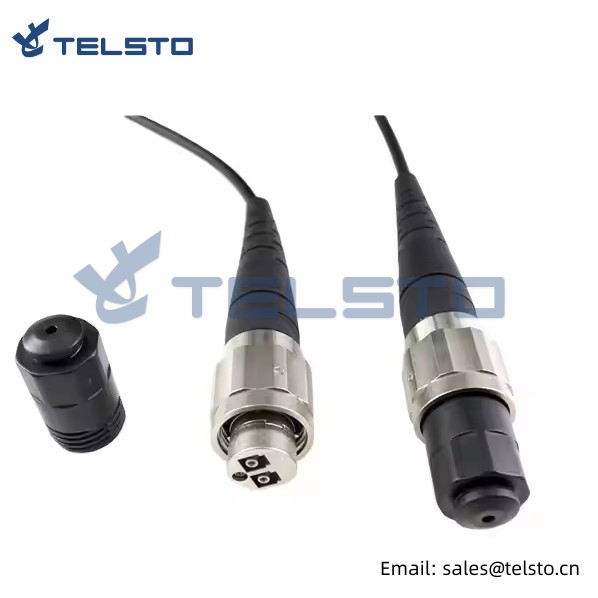

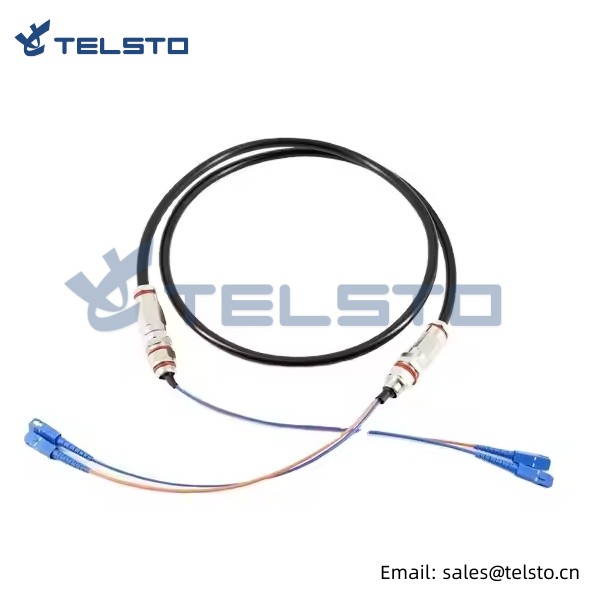

Outdoor Waterproof Singlemode Multimode Duplex IDC to LC Optical Fiber Optic Patch Cord
IDC Fiber Optic Patch Cord
The FTTA patch cable is specifically engineered for high reliability in heavy industrial and harsh environment applications, including fiber to the antenna solutions. Constructed with fiber cable and LC UPC Simplex connectors, this cable boasts superior crush resistance and a high degree of flexibility thanks to its armored tube. Additionally, the cable features a flame retardant LSZH jacket that is UV stabilized and highly resistant to chemicals commonly found in industrial settings. Suitable for both indoor and outdoor industrial installations, the FTTA patch cable is a versatile and reliable option for demanding environments.
Feature
● Offers exceptional flexibility for remote traction applications
● Boasts low insertion and back reflection loss for superior performance
● Ensures easy exchange ability and robust durability
● Maintains high temperature stability for reliable operation
● Specifically designed for FTTA (Fiber to the Antenna) applications
● Ideal for wireless horizontal and vertical cabling in outdoor environments
Application
Multi-purpose Outdoor Use:
● For connection between distribution boxes and Remote Radio Heads (RRHs)
● Deployment in Remote Radio Head cell tower applications
Specification
| Type | SM-UPC | SM-APC | MM-UPC | ||||||
| Typical | MAX | Typical | MAX | Typical | MAX | Typical | |||
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB | |||
| Return loss | ≥50dB | ≥30dB | ≥30dB | ||||||
| Durability | 500 mating cycles | ||||||||
| Working temperature | -40 to + 85℃ | ||||||||
