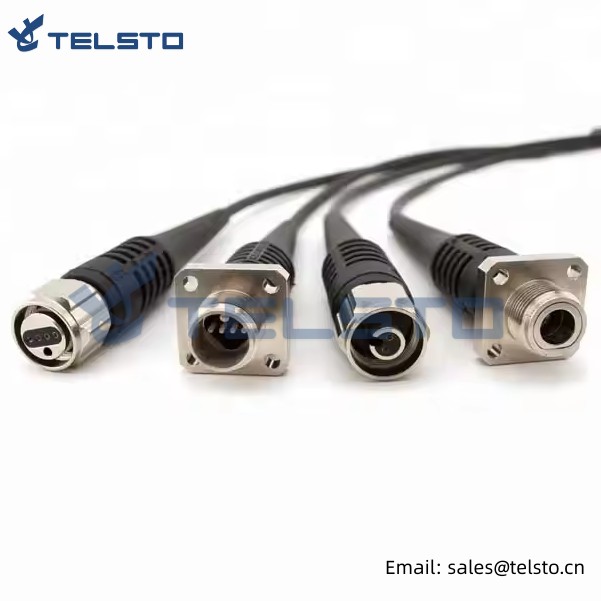

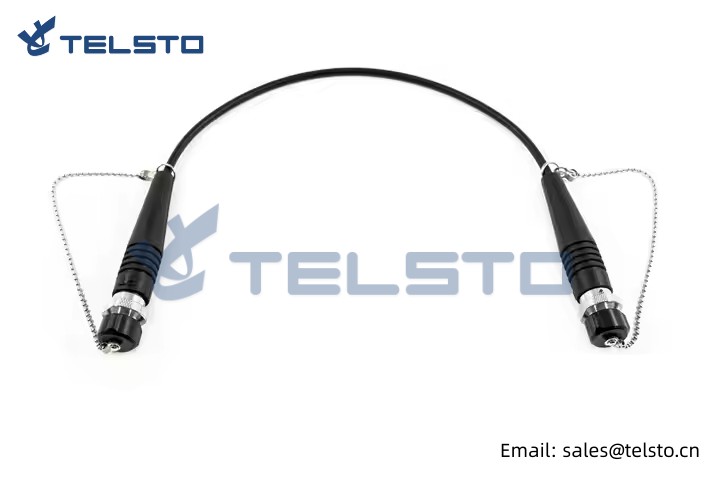

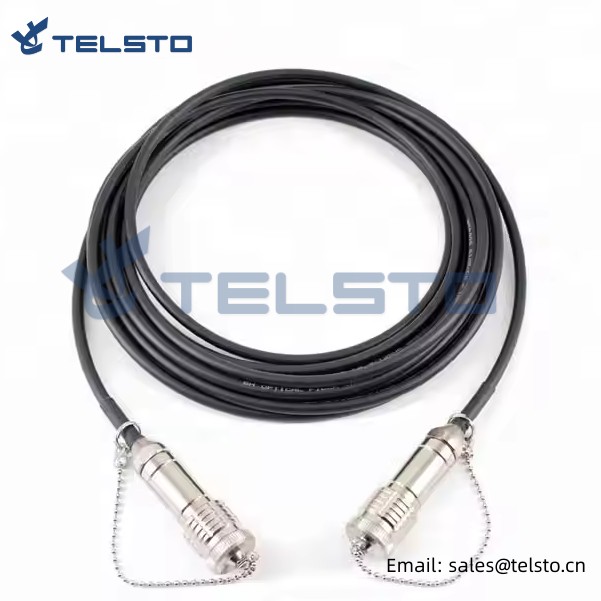

Outdoor Waterproof IDC 12core CPRI Fiber Optic Patch Cord
FTTA PATCH CABLE
FTTA patch cable designed for high reliability in harsh environments, the FTTA patch cable includes armored fiber cable and LC UPC Simplex connectors. It boasts superior crush resistance, flexibility, a flame retardant LSZH jacket (UV-stabilized, chemical-resistant), and is suitable for both indoor and outdoor industrial installations.
Feature
● Excellent flexibility for remote traction
● Low insertion and back reflection loss
● Good exchange ability and durability
● High temperature stability
● Specifically designed for FTTA applications
● Suitable for wireless horizontal and vertical cabling in outdoor environments
Application
Multi-purpose Outdoor For connection between distribution box and RRH Deployment in Remote Radio Head cell tower applications
Specification
| Type | SM-UPC | SM-APC | MM-UPC | ||||||
| Typical | MAX | Typical | MAX | Typical | MAX | Typical | |||
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB | |||
| Return loss | ≥50dB | ≥30dB | ≥30dB | ||||||
| Durability | 500 mating cycles | ||||||||
| Working temperature | -40 to + 85℃ | ||||||||
