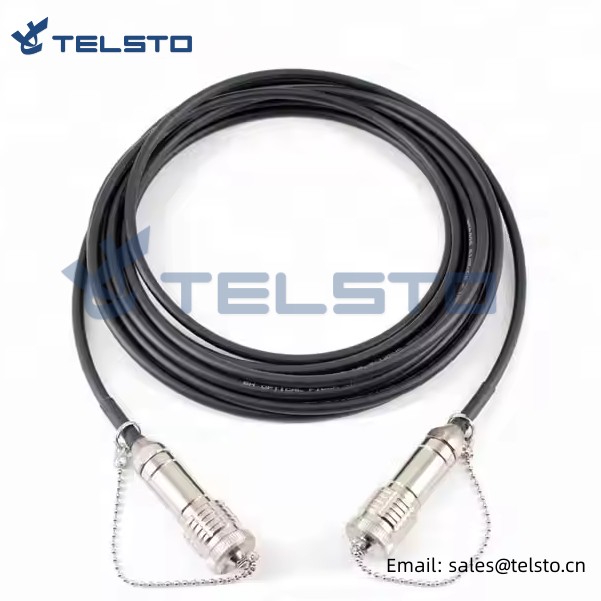

Outdoor Waterproof Fiber Optic CPRI Patch Cord

Fiber Optic Patch Cord Product Overview
Product Name: Fiber Optic Patch Cord
Application: FTTX (Fiber to the x)
Network: WiFi
Cable Type: Single-Mode (SM) or Multi-Mode (MM)
Connector Type: Plug or Socket
Fiber Count: 2-Core or 4-Core
Cable Type: Outdoor Cable
Cable Diameter: 5.0mm or 7.0mm
Cable Color: Black
Cable Length: Customizable
Operating Temperature: -40°C to 75°C
Place of Origin: Shanghai, China (Mainland)
Brand Name: Telsto

Send email to us

Description

Description

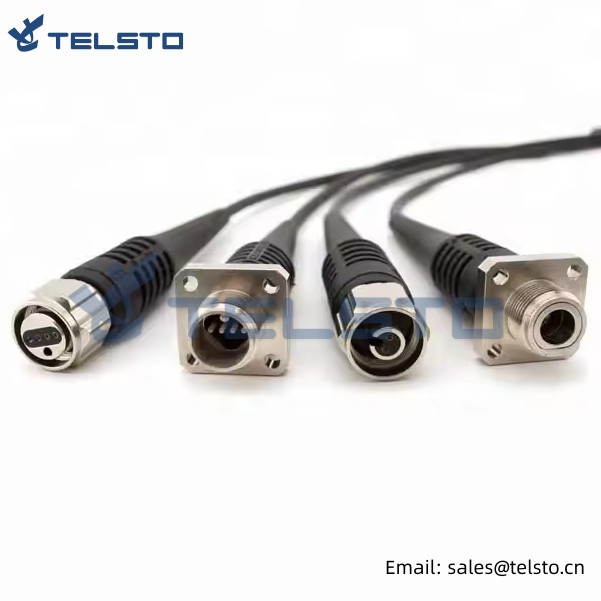

The ODC (Outdoor Distribution Cabinet) Connectors, equipped with supporting optical cables, have emerged as the standard interfaces stipulated in 3G, 4G, and Wimax Base Stations, as well as FTTA (Fiber-to-the-Antenna) applications. These ODC Cable assemblies have undergone rigorous testing, including salt mist, vibration, and shock tests, and have achieved the protection class of IP68, ensuring their reliability and durability in various harsh environments.

Description

● Screwed Locking Mechanism: Ensures a secure and long-lasting connection.

● Guide Structure: Facilitates easy, blind installation with simplicity and speed.

● Airtight Construction: Provides waterproof, dustproof, and corrosion-resistant properties.

● Protective Cap: Included for added safety and protection.

● Compact Design: Robust and flexible, with a sleek appearance.

● Wall Sealing Design: Ensures a tight seal when passing through walls.

Parameter

Insertion Loss	Singlemode: ≤0.3dB; Max≤0.7dB
	Multimode: ≤0.25dB; Max≤0.7dB
Return Loss	Singlemode: ≥45dB
Mechanically Robust	ODC plug≤ 800N tensile load
	ODC socket≤ 30N tensile load
Installation torque force	Min.1Nm/ Max. 2Nm
Operating temperature	-40℃~+85℃
Mating durability	Min. 100 cycles
