outdoor 5.0×2.0mm 1meter SM Simplex 9125 FTTH drop cable patch cord LC SC PC SC APC connector SX fiber optic patch cord

Outdoor 5.0×2.0mm 1meter SM Simplex 9/125 FTTH drop cable patch cord LC SC/PC SC/APC connector SX fiber optic patch cord


  • Brand Name: Telsto
  • Product name: Fiber patch cord
  • Application: FTTH FTTB FTTX Network
  • Type: Singlemode
  • Color: Black/white
  • Wavelength: 1310/1550nm
  • Certification: CE RoHS FCC
  • Fiber Type: G652D/G657A
  • Origin: Shanghai
  • Description

    Optical Fiber Patch Cord consists of a single-mode or multi-mode fiber cord and two connectors, one at each end.It is available in both Single mode and multimode versions,come with a zirconia ceramic ferrule with pre-polished UPC or APC.

    Telsto Fiber Optic Patch Cords are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and a precision moulded polymer housing provides consistent long-term mechanical and optical performance.

    Features

    1.Ceramic Ferrule

    2.High return loss

    3. Low insertion loss

    4.Good repeatability and and exchangeability

    5. Excellent Polished and 100% tested

    ITEM

    SM

    MM

    Type

    FC/PC

    FC/UP

    CFC/APC

    FC/PC

    SC/PC

    SC/UP

    CSC/APS

    SC/PC

    ST/PC

    ST/PC





    Return Loss

    >=45dB

    >=50dB

    >=60dB

    >=35dB

    Insertion Loss

    <=0.2dB

    Operating Temperature

    -40°C ~ +80°C

    Repeatability

    <=0.1dB

    Interchangeability

    <=0.2dB

    Insertion and Pull Times

    1000

    Tensile Strength

    >100N

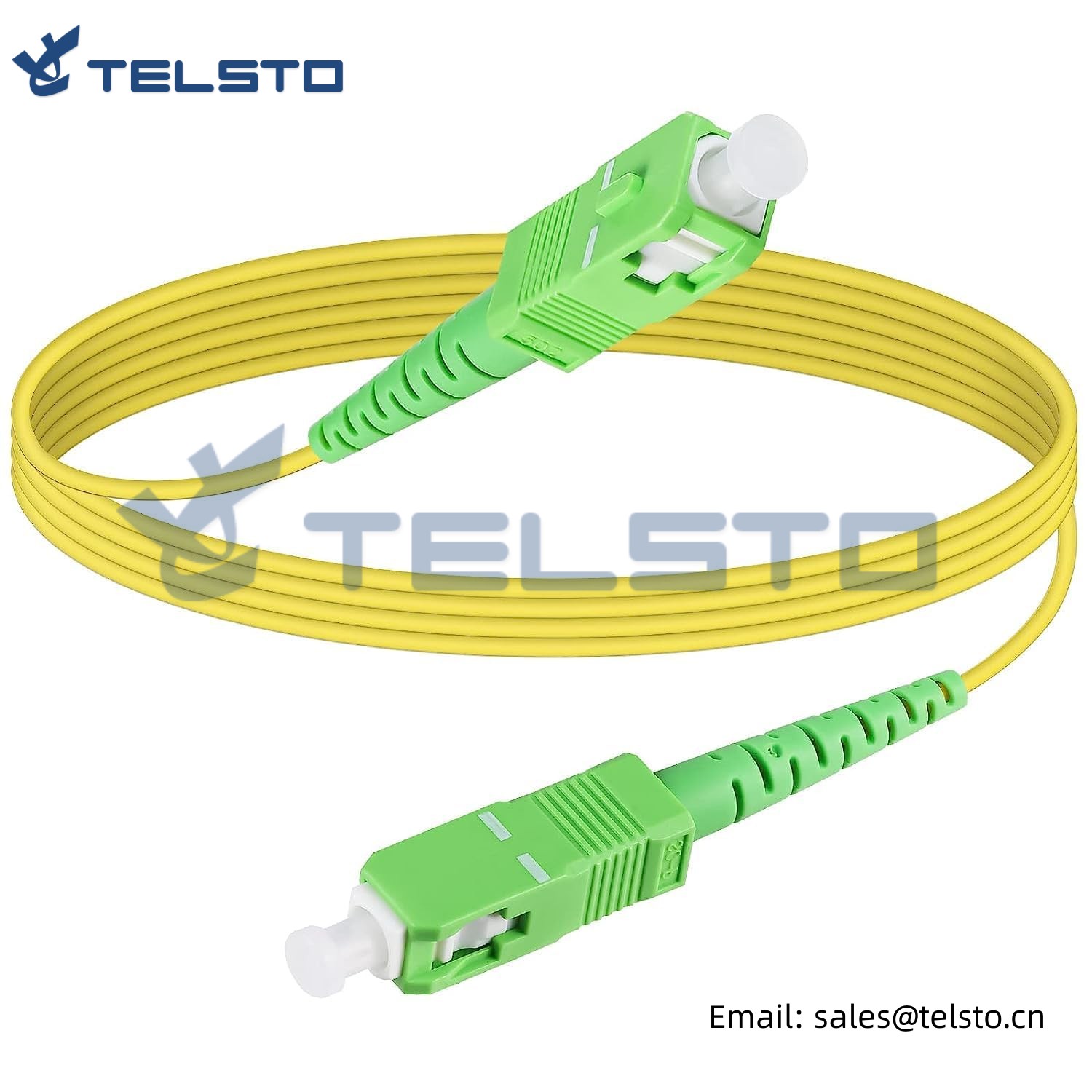

    outdoor 5.0x2.0mm 1meter SM Simplex 9125 (1)
