Optical Fiber Jumper Price Single Mode Simplex SC UPC APC PVC LSZH OS2 2.0mm 3.0mm Fiber Optic Patch Cord

Optical Fiber Jumper Price Single Mode Simplex SC UPC APC PVC LSZH OS2 2.0mm 3.0mm Fiber Optic Patch Cord


  • Model Number: SC UPC-SC UPC
  • Brand Name: TELSTO/OEM
  • Product name: Fiber Optic Patch Cord
  • Brand: TELSTO/OEM
  • Mode: SingleMode
  • Cable Diameter: 0.9mm/ 2.0mm/ 3.0mm
  • Fiber Type: G652D/G657A1/G657A2
  • Cable color: Yellow
  • Material: PVC, LSZH
  • Connector Type: SC, LC, FC, ST, E2000, MU, MTRJ
  • Length: 1m/ OEM
  • Application: FTTH FTTB FTTX Network
  • Origin: Shanghai
  • Description

    Optical fiber patchcord,sometimes called a fiber optic patch cord is a length of fiber cabling fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end.The LC, a smaller form factor fiber optic connector, is most commonly used. Fiber jumpers also come in hybrid varieties with one type of connector on one end and another type of connector on the other. Jumpers are used in the same manner as patch cords, to connect end devices or network hardware to the structured cabling system.

    Telsto offers a wide range of high quality fiber optic patch cables. Practically every request and every requirement is covered by the broad range of cable types. The product range includes OM1, OM2, OM3 and OS2 versions. Telsto fiber optic installation cables guarantee the best performance and fail-safety. All cables are single packed a polybag with test report.

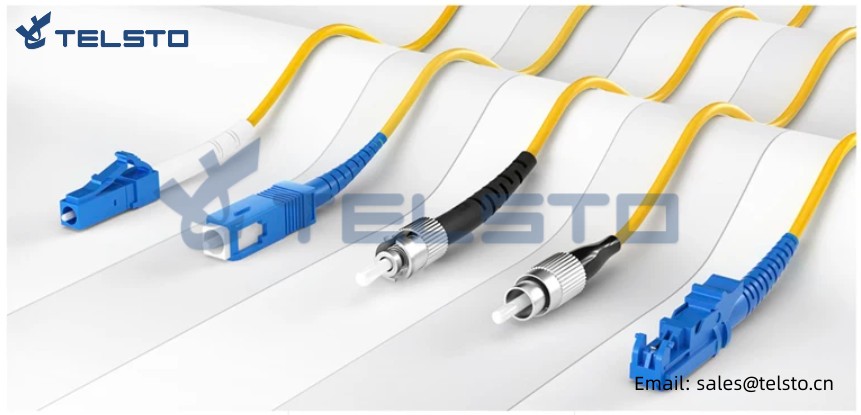

    Optical Fiber Jumper Price Single Mode Simplex SC UPC APC (1)

    Application

    1; Telecommunication networks;

    2; Local area networks; CATV;

    3; Active device termination;

    4; Data center system networks;

    Optional Type
    Item SM(Single Mode) MM(Multimode)
    Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4/OM5
    Fiber Diameter (um) 9/125 62.5/125 50/125
    Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
    Endface Type PC UPC APC UPC UPC
    Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
    Return Loss (dB) >45 >50 >60 /
    Insert-pull Test (dB) <0.2 <0.3 <0.15

    Products Description

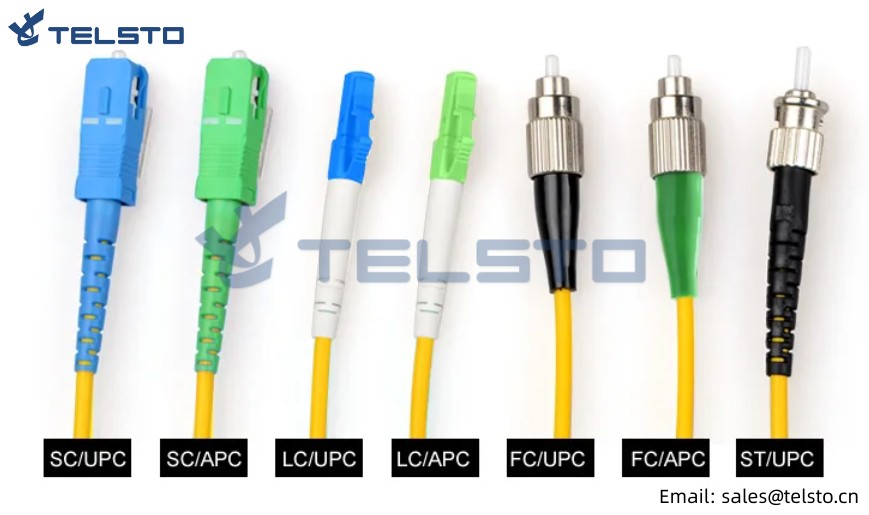

    Optical Fiber Jumper Price Single Mode Simplex SC UPC APC (3)
