Optic fiber clamp for 13-18mm power cable

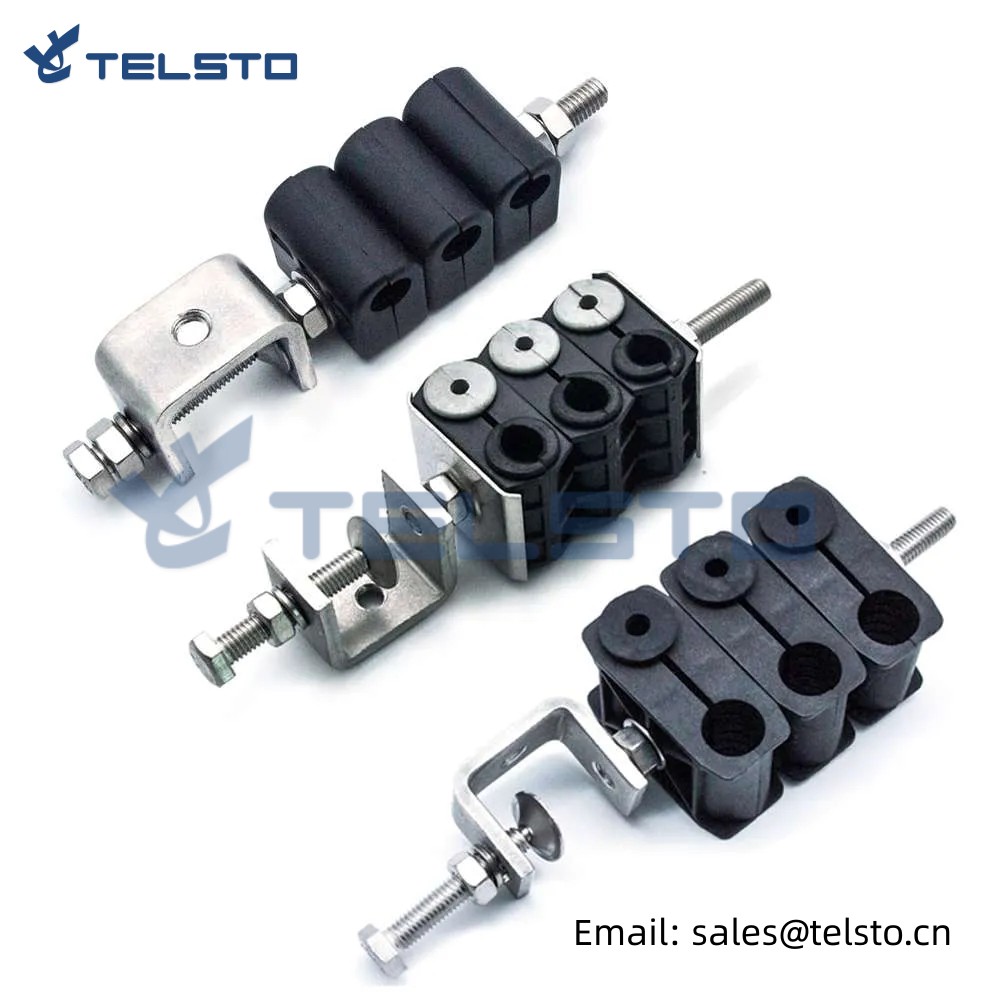

Telsto optic fiber clamps are used to fix power cable and fiber optical cable at the same time. It’s available for power cable: 13-18mm, Optic fiber cable: 4-7mm. It can fix three fiber cables and three power cables. The C-shape bracket and pressing board are compact and terse. It is simple to fix the cables reliably.
Features/Benefits
● Customized products
● High quality materials
● Total fastening
| Technical Specifications | |||||||
| Product Type | Optic Fiber Clamp | ||||||
| Hanger Type | Double Multi-block | ||||||
| Cable Type | Power Cable, Fiber Cable | ||||||
| Power Cable Size | 4-7mm Optical Fiber Cable, 13-18mm Power Cable
used for 3 types of cable 2x6mm2, 2x10mm2& 2x16mm2 power cable |
||||||
| Holes/Runs | 2 per layer, 3 layers, 6 runs | ||||||
| Configuration | Angle member adapter | ||||||
| Thread | M8 | ||||||
| Material | Metal part: 304SS | ||||||
| Plastic parts: PP | |||||||
| Pipe parts: EPDM Rubber | |||||||
| Consist of : | |||||||
| 1.Angle adapter | 1pc | ||||||
| 2.Spring washers | 1pc M8 | ||||||
| 3.Hexagonal nut | 2pcs M8 | ||||||
| 4.Flat washers | 2pcs M8 | ||||||
| 5.Threaded rod | 1pc M8x120mm | ||||||
| 6.Blocks | 6pcs 2x16mm | ||||||
| 7.Cushions | 3pcs 16mm to 9-14mm | ||||||
| 8.Cushions | 6pcs 16mm to 4-7mm | ||||||
| Operation Temperature | -40℃-85℃ | ||||||
