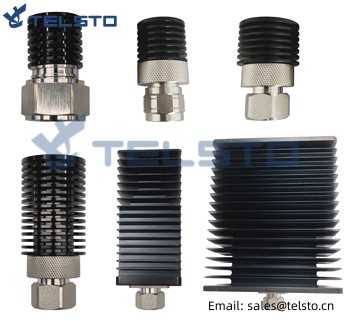

N Male Connector RF Coaxial Dummy Load 6W
Our Services
1. Reply your enquiry within 24 hours.
2. Payment model: T/T, L/C, Paypal and Western Union.
3. Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT UPS...)
4. Lead(Delivery) time: Normally 14 days after getting order.
5. Port of loading: Shanghai.
6. Guarantee Period : Within 12 months after shipment.
7. Operating guide(Instruction)upon request.
8. Customized drawing ,sample and package can be done.
| Interface | |||
| According to | IEC 60169-16 | ||
| Electrical | |||
| Characteristic Impedance | 50 Ohm | ||
| Frequency Range | DC-6GHz | ||
| VSWR | ≤1.2 | ||
| Power capacity(W) | 6W | ||
| Connection mode | N (M) | ||
| Environmental & Mechanical | |||
| Temperature Range | -40℃ ~ +85℃ | ||
| Durability | ≥500 cycles | ||
| ROHS compliant | Full ROHS compliance | ||
| Material & Plating | |||
| Material | Plating | ||
| Heat sink | Aluminum alloy | Black Oxidation | |
| Body | Brass | Tri-alloy | |
| Insulator | PTFE | - | |
| Center conductor | Brass | Ag | |
| Connection sleeve | Brass | Ni | |
FAQ
What about the quality of your products?
All products we supplied are strictly tested by our QC department before shipment.
Can you offer samples to test before placing one formal order?
Samples for test purpose can be presented free provided that you bear the shipping cost.
How long is usually your delivery time?
Our delivery time is usually within 14 days after we receive your order.
What's your Shipping Methods?
By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.
Can you send a sample for us to develop?
Yes, we can. The samples can be delivered within 7 business days.
Can we have our logo or company name to be printed on your products or the package?
Yes, you can. Logo and company name can be printed on our products . You can send us the artwork by email in JPEG or TIFF format.
Is the MOQ fixed?
The MOQ is flexible and we accept small order in the first time as trial order.
Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable
Structure of connector: ( Fig1 )
A. front nut
B. back nut
C. gasket
Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
1. The end surface of inner conductor should be chamfered.
2. Remove impurities such as copper scale and burr on the end surface of the cable.
Assembling the sealing part: Screw the sealing part in along the outer conductor of the cable as shown by the diagram ( Fig3).
Assembling the back nut (Fig3).
Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
1. Before screwing, smear a layer of lubricating grease on the o-ring.
2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.
