N male connector RF Coaxial 50 Ohm dummy load 50w


  • Place of Origin: shanghai, China (Mainland)
  • Brand Name: Telsto
  • Model Number: TEL-TLNM50W
  • Material: Brass and aluminium
  • connector type: n male connector
  • Product name: dummy load 50w
  • Impedance: 50 Ohm
  • Frequency Range: DC-3GHz
  • Plating:: Sliver, tri-matal and passivization
  • VSWR: 1.20:1
  • Weatherproof Rate: IP65
  • HS code: 85369090
  • Description

    Specifications

    Product Support

    n male connector rf coaxial dummy load 50w
    Model No. TEL-TLNM50W
    Electrical
    Characteristic Impedance 50ohm
    Frequency Range DC-3GHz
    VSWR ≤1.20
    Power Capacity 50 Watt
    RF Connector N Male Connector
    Material an Plating
    Parts Name Material
    Connector body Brass
    Insulator PTFE
    Inner Conductor Phosphor Bronze
    Housing Aluminum
    Environmental
    Operating Temp. -45~ 85  ℃
    Storage Temp. -60~120℃
    Weatherproof Rate IP65
    Relative Humidity 5%-95%
    RoHs (2002/95/EC) Compliant  by exemption
    Weight (Net) 340g

    ● Wide Frequency Band DC-3GHz
    ● Low Pass Intermodulation
    ● Low VSWR
    ● Low Attenuation Accuracy
    ● Widely used for In-building Solutions

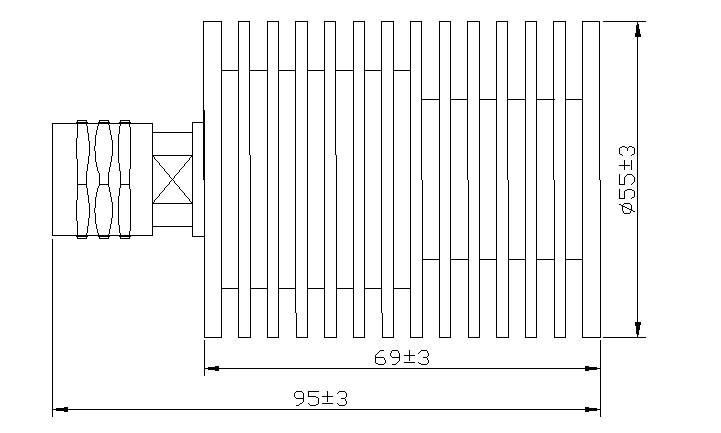

    TEL-TLNM50W

    Our Services
    1. Reply your enquiry within 24 hours.
    2. Payment model: T/T, L/C, Paypal and Western Union
    3. Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT UPS...)
    4. Lead(Delivery) time: Normally 14 days after getting order
    5. Port of loading: Shanghai
    6. Guarantee Period: Within 12 months after shipment.
    7. Operating guide(Instruction)upon request.
    8. Customized drawing, sample and package can be done.

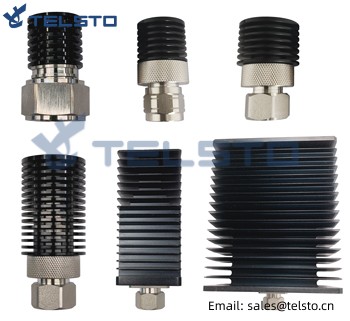

    N Male Type Load 50W (2)

    Technical Specifications:

    Product  Description Part No.
    Termination Load N Male / N Female, 2W TEL-TL-NM/F2W
    N Male / N Female, 5W TEL-TL-NM/F5W
    N Male / N Female, 10W TEL-TL-NM/F10W
    N Male / N Female, 25W TEL-TL-NM/F25W
    N Male / N Female, 50W TEL-TL-NM/F50W
    N Male / N Female, 100W TEL-TL-NM/F100W
    DIN Male / Female, 10W TEL-TL-DINM/F10W
    DIN Male / Female, 25W TEL-TL-DINM/F25W
    DIN Male / Female, 50W TEL-TL-DINM/F50W
    DIN Male / Female, 100W TEL-TL-DINM/F100W

    FAQ

    What about the quality of your products?
    All products we supplied are strictly tested by our QC department before shipment.

    Can you offer samples to test before placing one formal order?
    Samples for test purpose can be presented free provided that you bear the shipping cost.

    How long is usually your delivery time?
    Our delivery time is usually within 14 days after we receive your order .

    What’s your Shipping Methods?
    By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

    Can you send a sample for us to develop?
    Yes, we can. The samples can be delivered within 7 business days.

    Can we have our logo or company name to be printed on your products or the package?
    Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF format.

    Is the MOQ fixed?
    The MOQ is flexible and we accept small order in the first time as trial order.

    Electrical Characteristics
    Characteristics Impedance 50 Ohm
    Frequency Range DC~3 GHz
     Working Humidity 0-90%
    Power Rating           50w
    Connector N Male
    VSWR                    1.15
    Temperature range ℃ -35~+65

  • Previous:
  • Next:

  • Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable

    Structure of connector: ( Fig1 )
    A. front nut
    B. back nut
    C. gasket

    Installation Instructions001

    Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
    1. The end surface of inner conductor should be chamfered.
    2. Remove impurities such as copper scale and burr on the end surface of the cable.

    Installation Instructions002

    Assembling the sealing part: Screw the sealing part in  along the outer conductor of the cable as shown by the diagram ( Fig3).

    Installation Instructions003

    Assembling the back nut  (Fig3).

    Installation Instructions004

    Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
    1. Before screwing, smear a layer of lubricating grease on the o-ring.
    2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.

    Installation Instructions005
