Telsto Stainless Steel Banding Buckle are most popular type which are widely used for petro-chemical, pipe insulation, bridges, pipelines, cables, traffic signs, billboards, electric signs, cable trays, etc. bundled applications in different industries, it is used with stainless steel straps and banding tools.
● Ideal for banding use
● High standard stainless steel material: 201SS, 304SS, 316SS
● Brand New, Retail boxed
● ROHS Compliant
Material | #304 #316 stainless steel |
Structure | Self locking, ball bearing mechanism for quick and easy installation, either by hand |
Working temperature | -80℃-500℃ |
Length | All lengths are available |
Feature | High tensile strength |
Rust poof | |
Non-flammability | |
Anti corrosion | |
High resistance to accidence, alkali acid, sulfuric acid, a corrode etc | |
Certificate | RoHS |
Usage | First, the cable is bundled in a stainless steel cable tie |
Next, the tail of the stainless steel band is clamped by the tool | |
Finally, tighten with tool | |
Application | Shipbuilding, port, machinery, automobiles, aviation, electricity, communication s electronics, nuclear power, interurban locomotive and other industries |
Delivery time | 3-15 days (Depend on your order quantity) after confirm order. |
Payment terms | T/T, Western Union, L/C, PayPal |
Product Name | Polyester Coated/Fully Polyester coated/Color Coated Stainless Steel self-locking Cable Ties ball lock type |
Material | Stainless Steel Grade201, 304 or 316, etc; Stainless Steel grade 201 Suitable for indoor environment ; Stainless Steel grade 304 Suitable for outdoor environment; Stainless Steel grade 316 (marine grade) Suitable for extra corrosive environments; |
Color | Black, red, yellow, green, Grey, etc; |
Standard | ROHS |
Package | A. Common Packing: 1000Pcs + Poly bag + Label + Export Carton. B. Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing; C. Package can also according customers' requests. |
Product Features | 1)Install sexily and quickly 2)High tensile strength 3)Working Temp.: -80℃ to 500℃ 4) Fire-proof, UV-resistant, non toxic and Halogen free 5)Coated band with non-toxic, halogen free polyester coating 6)Provides additional edge protection 7)Prevents the corrosion between dissimilar materials. 8)Metallic buckle helps to distinguish from black nylon tie. 9)High resistance to acetic acid, alkali acid, sulfuric acid,anti-corrosion,etc; |
Application | Stainless steel cable ties are a quick effective way of securing cables.Utilized in general use banding application They can be used in virtually petrochemical, food industry, industries, power stations, mining, ship-building, offshore and any other aggressive environments, etc. |
Delivery Term | EXW, FOB, CFR, CIF, etc. |

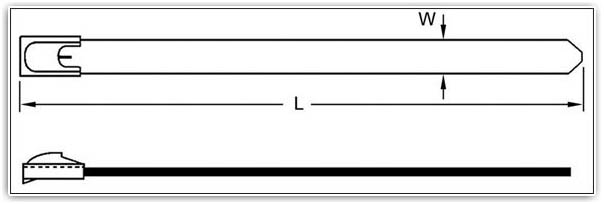

Part No. |
Length(L) |
Width(W) |
Bundle Diameter(E) |
Tensile Strength |
||
Inch |
MM |
MM |
MM |
LBS |
KGS |
|
TEL-CTSC-4.6×150 |
5.9″ |
150 |
4.6 |
37 |
135 |
61 |
TEL-CTSC-4.6X200 |
7.87″ |
200 |
50 |
|||
TEL-CTSC-4.6X250 |
9.84″ |
250 |
63 |
|||
TEL-CTSC-4.6X300 |
11.8″ |
300 |
76 |
|||
TEL-CTSC-4.6X350 |
13.78″ |
350 |
89 |
|||
TEL-CTSC-4.6X400 |
15.57″ |
400 |
102 |
|||
TEL-CTSC-4.6X450 |
17.72″ |
450 |
115 |
|||
TEL-CTSC-4.6X500 |
19.69″ |
500 |
128 |
|||
TEL-CTSC-4.6X550 |
21.65″ |
550 |
141 |
|||
TEL-CTSC-4.6X600 |
23.62″ |
600 |
154 |
|||
TEL-CTSC-7.9×150 |
5.9″ |
150 |
7.9 |
37 |
180 |
81 |
TEL-CTSC-7.9×200 |
7.87″ |
200 |
50 |
|||
TEL-CTSC-7.9×250 |
9.84″ |
250 |
63 |
|||
TEL-CTSC-7.9×300 |
11.8″ |
300 |
76 |
|||
TEL-CTSC-7.9×350 |
13.78″ |
350 |
89 |
|||
TEL-CTSC-7.9×400 |
15.57″ |
400 |
102 |
|||
TEL-CTSC-7.9×450 |
17.72″ |
450 |
115 |
|||
TEL-CTSC-7.9×500 |
19.69″ |
500 |
128 |
|||
TEL-CTSC-7.9×550 |
21.65″ |
550 |
141 |
|||
TEL-CTSC-7.9×600 |
23.62″ |
600 |
154 |
|||
TEL-CTSC-7.9×650 |
25.59 |
650 |
167 |
|||
TEL-CTSC-7.9×700 |
27.56″ |
700 |
180 |
|||
TEL-CTSC-7.9×750 |
29.53″ |
750 |
191 |
|||
TEL-CTSC-7.9×800 |
31.5″ |
800 |
193 |
|||
TEL-CTSC-12×150 |
5.9″ |
150 |
12 |
37 |
270 |
122 |
TEL-CTSC-12×200 |
7.87″ |
200 |
50 |
|||
TEL-CTSC-12×250 |
9.84″ |
250 |
63 |
|||
TEL-CTSC-12×300 |
11.8″ |
300 |
76 |
|||
TEL-CTSC-12×350 |
13.78″ |
350 |
89 |
|||
TEL-CTSC-12×400 |
15.57″ |
400 |
102 |
|||
TEL-CTSC-12×450 |
17.72″ |
450 |
115 |
|||
TEL-CTSC-12×500 |
19.69″ |
500 |
128 |
|||
TEL-CTSC-12×550 |
21.65″ |
550 |
141 |
|||
TEL-CTSC-12×600 |
23.62″ |
600 |
154 |
|||
TEL-CTSC-12×650 |
25.59 |
650 |
167 |
|||
TEL-CTSC-12×700 |
27.56″ |
700 |
180 |
|||
TEL-CTSC-15X200 |
7.87″ |
200 |
15 |
50 |
337 |
152 |
TEL-CTSC-15X250 |
9.84″ |
250 |
63 |
|||
TEL-CTSC-15X300 |
11.8″ |
300 |
76 |
|||
TEL-CTSC-15X350 |
13.78″ |
350 |
89 |
|||
TEL-CTSC-15X400 |
15.57″ |
400 |
102 |
|||
TEL-CTSC-15X450 |
17.72″ |
450 |
115 |
|||
TEL-CTSC-15X500 |
19.69″ |
500 |
128 |
|||
TEL-CTSC-15X550 |
21.65″ |
550 |
141 |
|||
TEL-CTSC-15X600 |
23.62″ |
600 |
154 |
|||
TEL-CTSC-15X650 |
25.59 |
650 |
167 |
|||
TEL-CTSC-15X700 |
27.56″ |
700 |
180 |
|||
TEL-CTSC-15X750 |
29.53″ |
750 |
191 |
|||
TEL-CTSC-15X800 |
31.5″ |
800 |
193 |
|||
TEL-CTSC-15X1000 |
39.37″ |
1000 |
206 |
