Telsto RF adapter is a product widely used in cellular base stations, distributed antenna systems (DAS) and small cell applications. Its operating frequency range is DC-3 GHz, with excellent VSWR performance and low passive intermodulation (low PIM3 ≤ - 155dBc (2 × 20W))。 These characteristics make it a choice of high performance and reliability, which can help users improve the quality and reliability of wireless communication systems.
As an RF adapter, Telsto RF adapter has a wide range of applications, including but not limited to cellular base stations, distributed antenna systems (DAS) and small cell applications. It can be used in different types of equipment and systems, including digital communication systems, radio broadcasting, satellite communication systems, etc., to meet the different needs of users.
Telsto RF adapter has a very wide operating frequency range, covering DC-3 GHz, which means it can adapt to different communication standards and frequency bands. In this frequency range, its VSWR performance is very excellent, which can ensure the stability and accuracy of the signal during use. In addition, its low passive intermodulation (low PIM3 ≤ - 155dBc (2 × 20W) is also an important feature of the system. This is because its design uses high-quality materials and technology, which reduces the generation of passive intermodulation phenomenon in high power operation, thus improving the reliability of the communication system.
Why choose us:
1. Professional R&D team
Application test support ensures that you no longer worry about multiple test instruments.
2. Product marketing cooperation
The products are sold to many countries all over the world.
3. Strict quality control
4. Stable delivery time and reasonable order delivery time control.
We are a professional team, our members have many years of experience in international trade. We are a young team, full of inspiration and innovation. We are a dedicated team. We use qualified products to satisfy customers and win their trust. We are a team with dreams. Our common dream is to provide customers with the most reliable products and improve together. Trust us, win-win.
Product |
Description | Part No. |
RF Adapter |
4.3-10 Female to Din Female Adapter | TEL-4310F.DINF-AT |
4.3-10 Female to Din Male Adapter | TEL-4310F.DINM-AT | |
4.3-10 Female to N Male Adapter | TEL-4310F.NM-AT | |

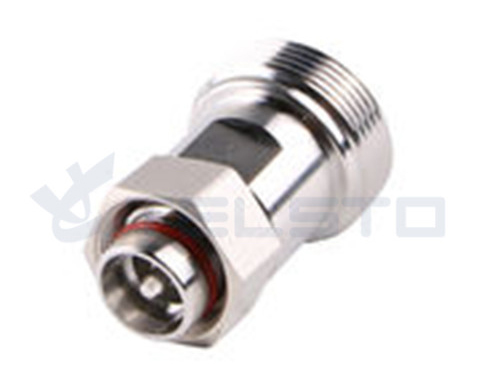

4.3-10 Male to Din Female Adapter | TEL-4310M.DINF-AT | |
4.3-10 Male to Din Male Adapter | TEL-4310M.DINM-AT | |
4.3-10 Male to N Female Adapter | TEL-4310M.NF-AT | |
Din Female to Din Male Right Angle Adapter | TEL-DINF.DINMA-AT | |
N Female to Din Male Adapter | TEL-NF.DINM-AT | |
N Female to N Female Adapter | TEL-NF.NF-AT | |
N Male to Din Female Adapter | TEL-NM.DINF-AT | |
N Male to Din Male Adapter | TEL-NM.DINM-AT | |
N Male to N Female Adapter | TEL-NM.NF-AT | |
N Male to N Male Right Angle Adapter | TEL-NM.NMA.AT | |
N Male to N Male Adapter | TEL-NM.NM-AT | |
4.3-10 Female to 4.3-10 Male Right Angle Adapter | TEL-4310F.4310MA-AT | |
DIN Female to Din Male Right Angle RF Adapter | TEL-DINF.DINMA-AT | |
N Female Right Angle to N Female RF Adapter | TEL-NFA.NF-AT | |
N Male to 4.3-10 Female Adapter | TEL-NM.4310F-AT | |
N Male to N Female Right Angle Adapter | TEL-NM.NFA-AT |

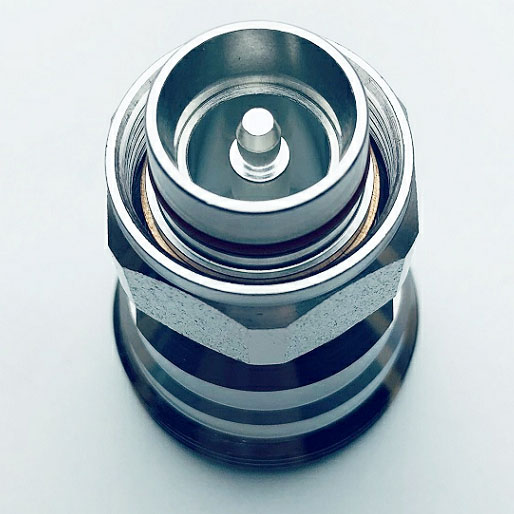

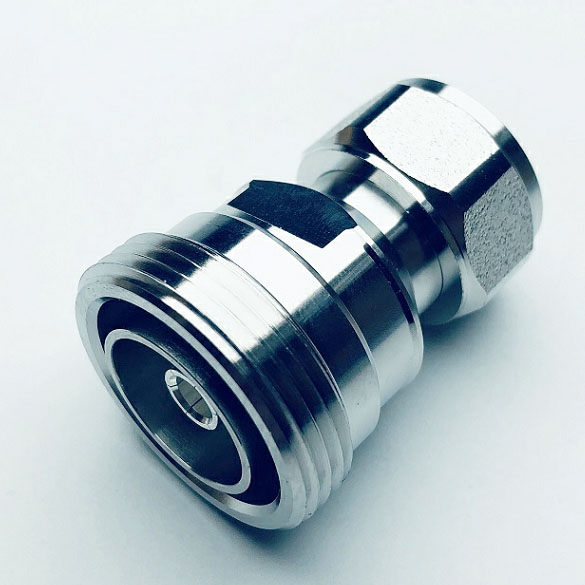

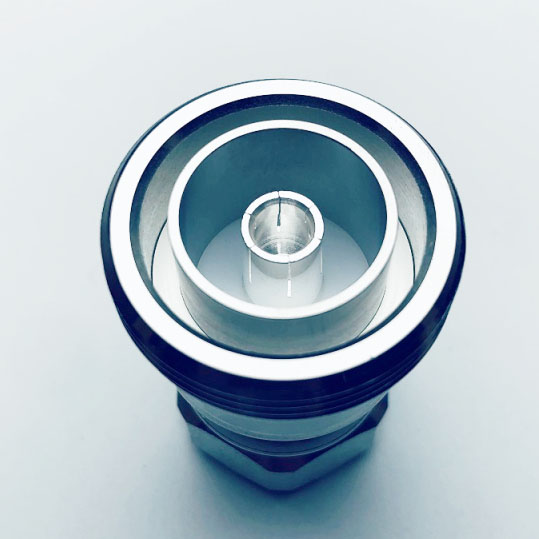

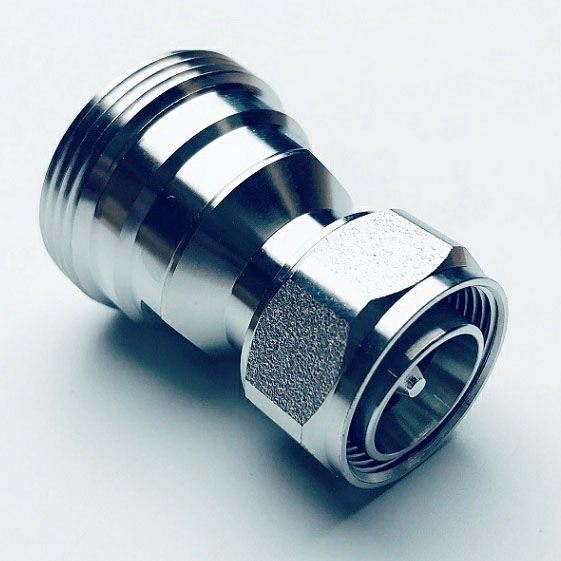

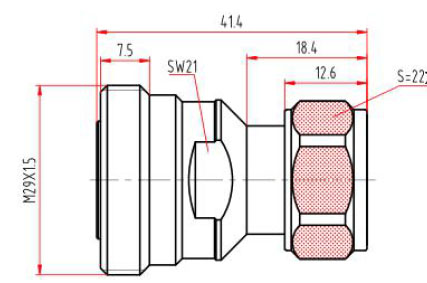

Model: TEL-DINF.4310M-AT
Description:
DIN 7/16 Female to 4.3-10 Male RF Adapter
Material and Plating | ||
Material | Plating | |
Body | Brass | Tri-Alloy |
Insulator | PTFE | / |
Center conductor | Phosphor bronze | Ag |
Electrical Characteristics | |
Characteristics Impedance | 50 Ohm |
Port 1 | 7/16 DIN Female |
Port 2 | 4.3-10 Male |
Type | Straight |
Frequency Range | DC-6GHz |
VSWR | ≤1.10(3.0G) |
PIM | ≤-160dBc |
Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level |
Dielectric Resistance | ≥5000MΩ |
Contact Resistance |
Center Contact ≤0.40mΩ
Outer Contact ≤0.25mΩ |
Mechanical | |
Durability | Mating cycles ≥500 |
Environmental | |
Temperature range | -40℃~+85℃ |
Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable
Structure of connector: ( Fig1 )
A. front nut
B. back nut
C. gasket
Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
1. The end surface of inner conductor should be chamfered.
2. Remove impurities such as copper scale and burr on the end surface of the cable.
Assembling the sealing part: Screw the sealing part in along the outer conductor of the cable as shown by the diagram ( Fig3).
Assembling the back nut (Fig3).
Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
1. Before screwing, smear a layer of lubricating grease on the o-ring.
2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.
