IP67 Outdoor MPO MTP 1224 Cores cable assembly ODC MTP MPO Connector SM G657A1 Cable assembly

Product Name: ODC MTP/MPO Connector SM G657A1 Cable Assembly

Use: FTTA (Fiber to the Antenna)

Fiber Count: 12/24 Fibers

Color: Black

Fiber Type: Available in both Single mode and Multimode

Cable Diameter: Options include 5.0mm and 7.0mm

Outer Jacket Material: Options include LSZH (Low Smoke Zero Halogen), PVC, OFNP (Optical Fiber Non-conductive Plenum), and OFNR (Optical Fiber Non-conductive Riser)

Certification: ISO9001 for quality management and RoHS for restriction of hazardous substances

Number of Fibers: Incorrect detail provided in the initial list; should typically match the Fiber Count (e.g., 12 or 24 fibers for the respective options)

Place of Origin: Shanghai, China (Mainland)

Brand Name: Telsto

Send email to us

Description

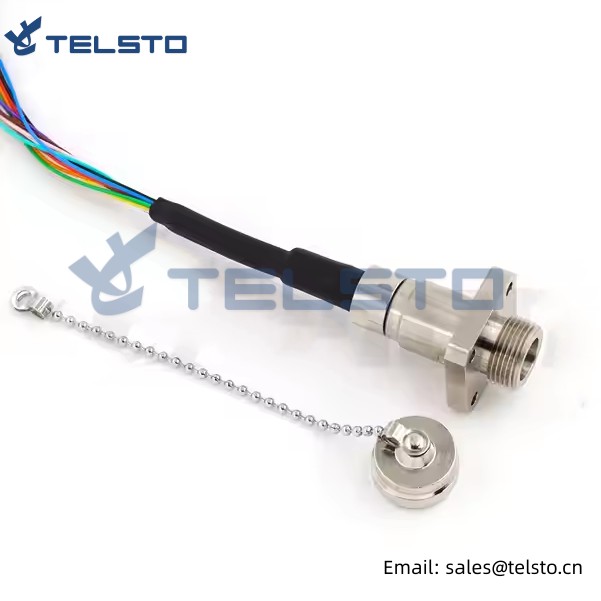

IP67 Outdoor MPO/MTP 12/24 Cores Cable Assembly with ODC MTP/MPO Connector and SM G657A1 Fiber

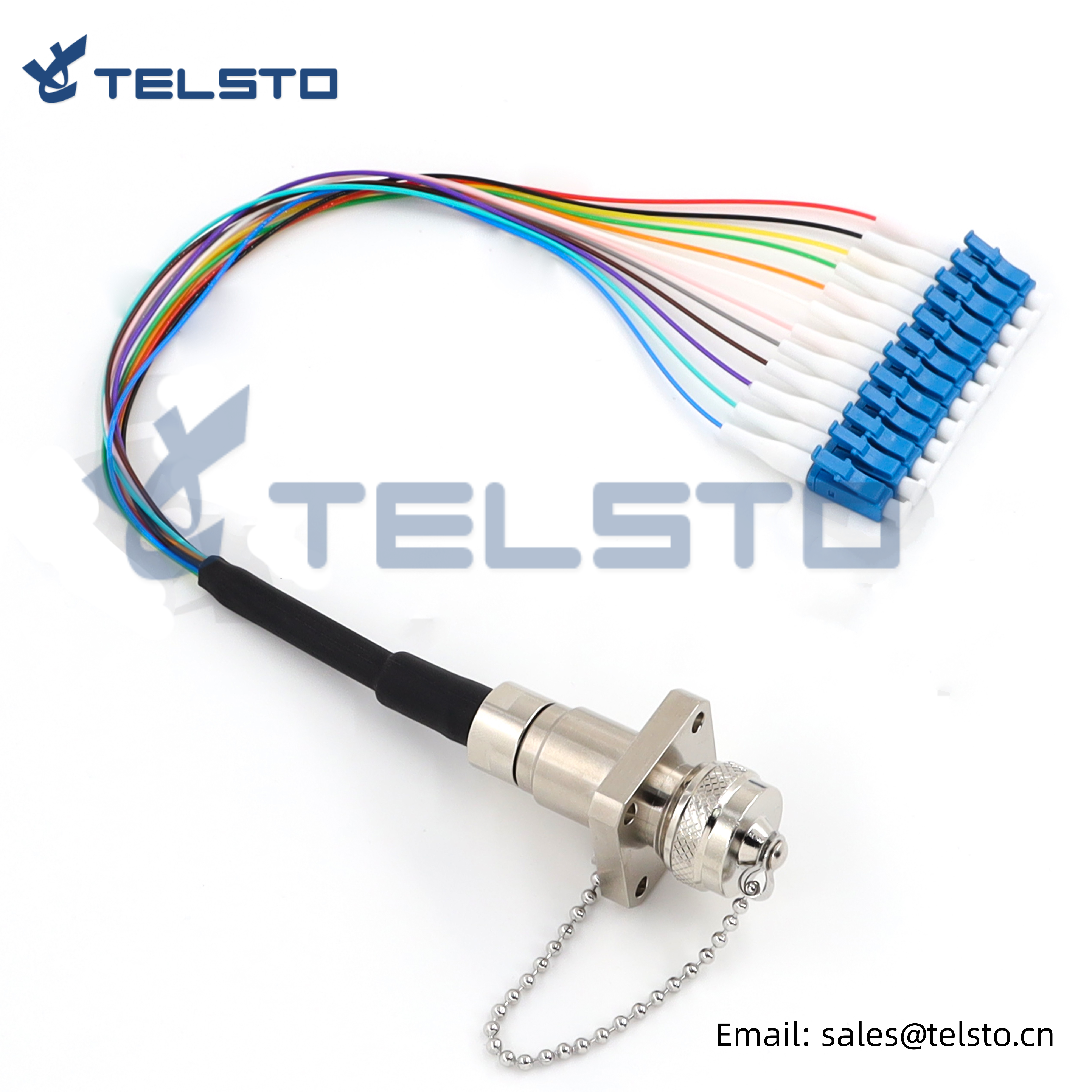

IP67 Outdoor MPO MTP 1224 Cores cable assembly ODC MTP MPO Connector SM G657A1 Cable assembly

This IP67 Outdoor MPO/MTP 12/24 Cores Cable Assembly is specifically designed for wireless base station applications, including WCDMA, TD-SCDMA, CDMA200, Wi-MAX, and GSM. It meets the rigorous requirements of FTTA (Fiber to the Top of the Tower) deployments, ensuring reliable and high-performance connectivity in harsh outdoor environments.

Feature

● Fiber Count: Available in 12 or 24 cores, with options for single mode or multimode fibers.

● Compact Design: Features 2×1.25mm ferrules for a sleek and space-saving design.

● Built-In Socket: Comes with a square or hexagonal flange for easy mounting and secure connections.

● Cable Chaining: Extension connector allows for chaining multiple cables together.

● Locking Mechanism: Screwed locking mechanism ensures a secure and stable connection.

● Easy Installation: Designed for easy and safe installation, minimizing downtime and errors.

● Waterproof, Dustproof, and Corrosion Resistant: IP67 rating provides protection against water, dust, and corrosion.

● Waterproof Protection Caps: Included to further safeguard the connectors when not in use.

● EMI Protected: Shielding protects against electromagnetic interference, ensuring signal integrity.

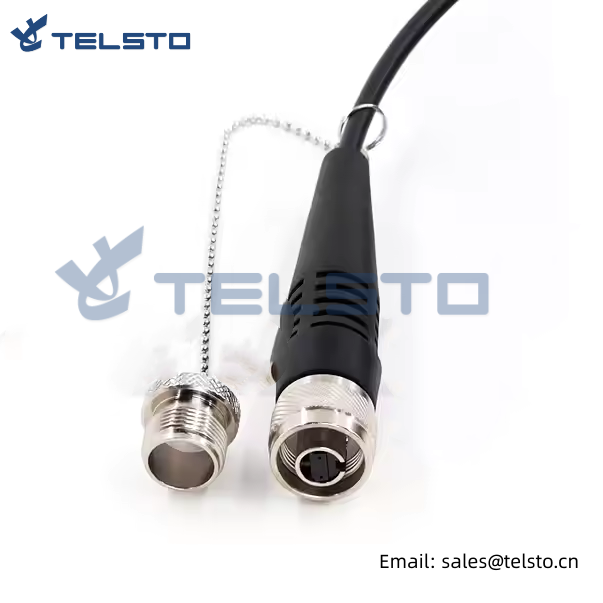

FTTA IP67 IDCMPO-IDC MPO 12cores Patch Cordy

Application

● FTTX/FTTA Systems: Ideal for fiber-to-the-x (FTTX) and fiber-to-the-top-of-the-tower (FTTA) systems, providing high-speed and reliable connectivity.

● PON Networks: Suitable for passive optical networks (PONs), enabling efficient and scalable fiber optic networks.

● CATV Links: Perfect for cable television (CATV) links, ensuring high-quality video and data transmission.

● Optical Signal Distribution: Used in optical signal distribution systems for broadcasting, telecommunications, and data centers.
