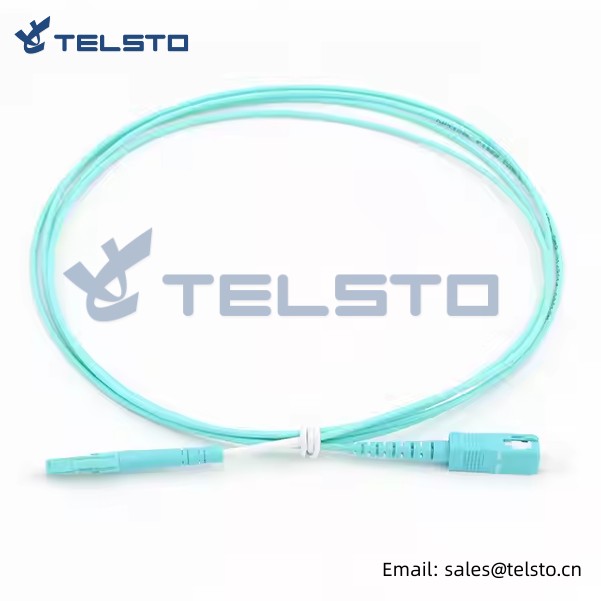

High Speed SM OM1 OM2 OM3 OM4 OM5 Fiber Optic Patch Cord LCSCFCST PCAPC Simplex Duplex Fiber Jumper
High-quality and cost-effective 50/125μm Duplex OM5 Multi mode Bend Insensitive Fiber Optic Cable
This advanced OM5 wide band multi mode fiber optic cable is specifically optimized for multi-wavelength transmission systems operating within the 850-950 nm range. It provides exceptional support for emerging Shortwave Wavelength Division Multiplexing (SWDM) applications, which significantly reduce the need for parallel fiber counts. With this technology, users can achieve high-speed data transmission of 40 Gb/s and 100 Gb/s using just two fibers instead of eight, thereby enhancing efficiency and reducing costs.
Application
The FTTA (Fiber to the Antenna) patch cord is designed for a variety of applications, including:
● 3G and 4G base stations
● Aerospace and Defense
● Equipment diagnostics
● Fiber Optic sensors
● FTTA, FTTP, and FTTX networks
● WiMAX
● Baseband Units (BBU)
● Remote Radio Units (RRU)
● Remote Radio Heads (RRH)
● Long-Term Evolution (LTE)
Products Description

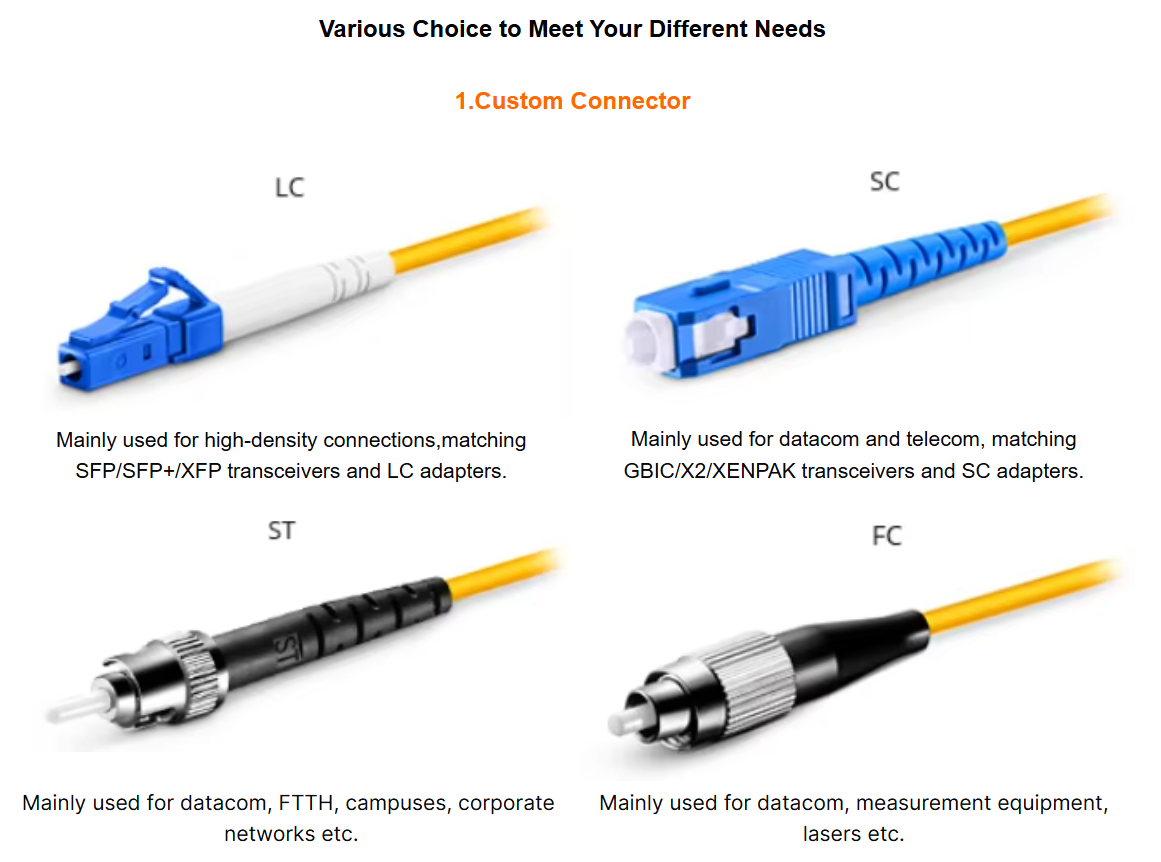

| Connector Type | LC/SC/ST/FC/LSH/MU | Polish Type | UPC to UPC |
| Fiber Mode | OM5 50/125μm | Wavelength | 850/1300nm |
| 40G Ethernet Distance | 440m at 850nm | 100G Ethernet Distance | 150m at 850nm |
| Insertion Loss | ≤0.3dB | Return loss(dB) | ≥20dB |
| Fiber Grade | Bend insensitive | Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300 nm | 1.0 dB/km |

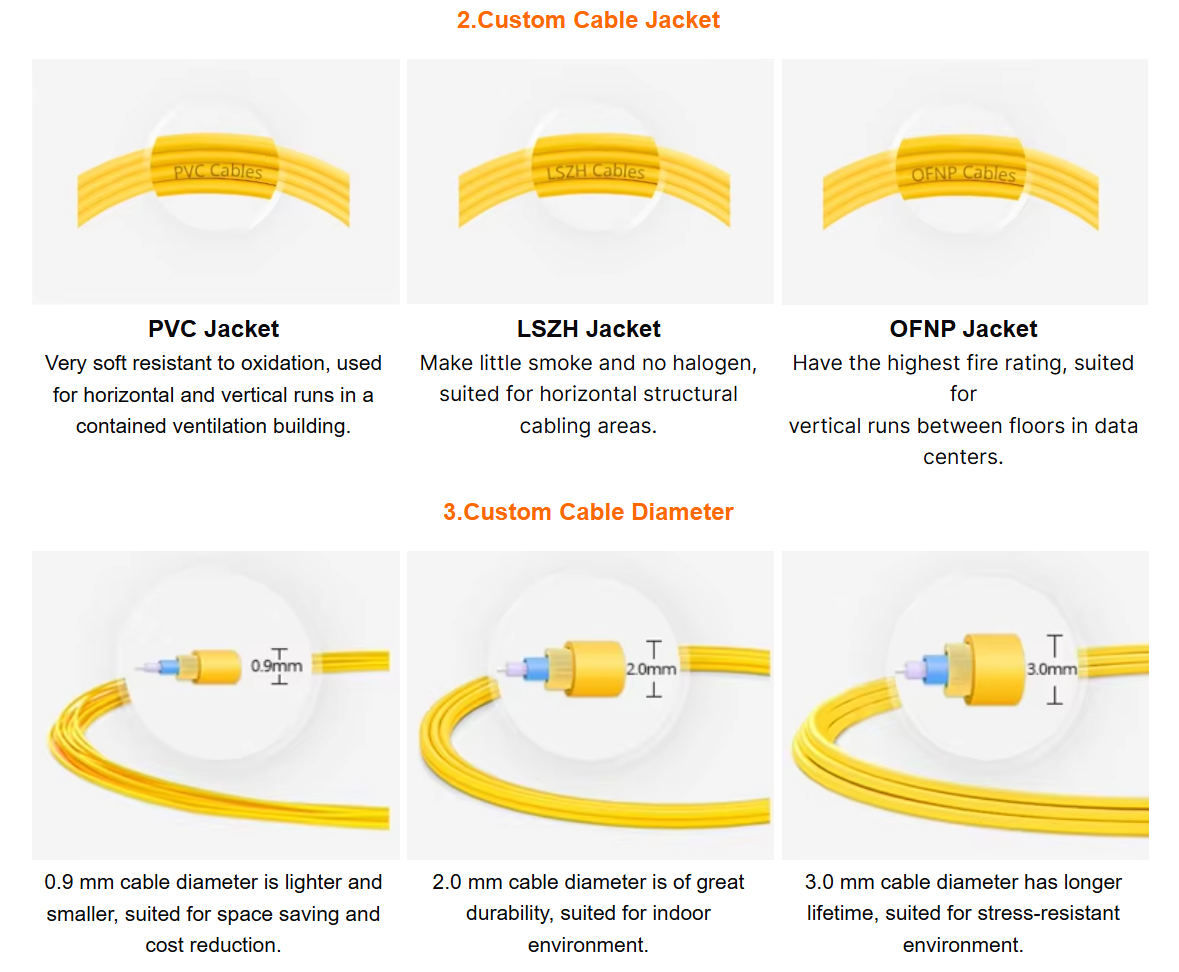

| Cable Jacket | PVC/LSZH/OFNP | Cable Diameter | 2.0/0.9/3.0mm |
| Effective Modal Bandwidth(at 850 nm) | ≥4700 MHz·km | Effective Modal Bandwidth(at 953 nm) | ≥2470 MHz·km |
| Fiber Count | Duplex | Polarity | A(Tx)to B(Rx) |
| Operating Temperature | -20~80℃ | Storage Temperature | -40~80℃ |
