Construction | |||
inner conductor | material | smooth copper tube | |
dia. | 9.30±0.10 mm | ||
insulation | material | physically foamed PE | |
dia. | 22.40±0.40 mm | ||
outer conductor | material | ring corrugated copper | |
diameter | 25.60±0.30 mm | ||
jacket | material | PE or fire retardant PE | |
diameter | 27.90±0.20 mm | ||
mechanical properties | |||
bending radius |
single repeated moving |
127 mm 254 mm 500 mm |
|
pulling strength | 1590 N | ||
crush resistance | 1.4 kg/mm | ||
recommended temperature | PE jacket | store | -70±85°C |
installation | -40±60°C | ||
operation | -55±85°C | ||
fire retardant PE jacket | store | -30±80°C | |
installation | -25±60°C | ||
operation | -30±80°C | ||
electrical properties | |||
impedance | 50±2 Ω | ||
capacitance | 75 pF/m | ||
inductance | 0.19 uH/m | ||
propagation velocity | 87 % | ||
DC breakdown voltage | 6.0 kV | ||
insulation resistance | >5000 MQ.km | ||
peak power | 91 kW | ||
screening attenuation | >120 dB | ||
cut-off frequency | 5.0 GHz | ||
attenuation and average power | |||
frequency,MHz | power rate@40°C,kW | nom.attenuation@20°C,dB/100m | |
200 | 5.05 | 1.67 | |
450 | 3.29 | 2.55 | |
800 | 2.42 | 3.48 | |
900 | 2.26 | 3.7 | |
1000 | 2.14 | 3.93 | |
1800 | 1.54 | 5.44 | |
2000 | 1.46 | 5.77 | |
2200 | 1.38 | 6.09 | |
2500 | 1.28 | 6.55 | |
3000 | 1.15 | 7.27 | |
maximum attenuation value may be 105% of the nominal attenuaiton value. | |||
VSWR | |||
690-960MHz | ≤1.12 | ||
1700-2200MHz | ≤1.15 | ||
2300-2400MHz | ≤1.15 | ||
standards | |||
2011/65/EU | compliant | ||
IEC61196.1-2005 | compliant |
RF Connector

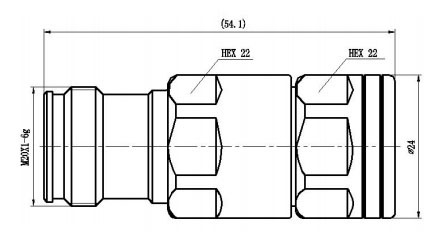

Model: TEL-4310F.12-RFC
Description
4.3-10 Female connector for 1/2″ flexible RF cable
Material and Plating | |
Center contact | Brass / Silver Plating |
Insulator | PTFE |
Body & Outer Conductor | Brass / alloy plated with tri-alloy |
Gasket | Silicon Rubber |
Electrical Characteristics | |
Characteristics Impedance | 50 Ohm |
Frequency Range | DC~3 GHz |
Insulation Resistance | ≥5000MΩ |
Dielectric Strength | ≥2500 V rms |
Center contact resistance | ≤1.0 mΩ |
Outer contact resistance | ≤1.0 mΩ |
Insertion Loss | ≤0.1dB@3GHz |
VSWR | ≤1.1@-3.0GHz |
Temperature range | -40~85℃ |
PIM dBc(2×20W) | ≤-160 dBc(2×20W) |
Waterproof | IP67 |
Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable
Structure of connector: ( Fig1 )
A. front nut
B. back nut
C. gasket
Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
1. The end surface of inner conductor should be chamfered.
2. Remove impurities such as copper scale and burr on the end surface of the cable.
Assembling the sealing part: Screw the sealing part in along the outer conductor of the cable as shown by the diagram ( Fig3).
Assembling the back nut (Fig3).
Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
1. Before screwing, smear a layer of lubricating grease on the o-ring.
2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.
