Gel Seal Closure for 1/2″jumper to 1-5/8″feeder


  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Telsto
  • Model Number: TEL-GEL-1/2J-1-5/8F
  • Product Line: Weatherproof,Tape & Chemicals
  • Product Type: Gel Seal Closure
  • Application: waterproof
  • OEM: accepted
  • Description

    Telsto Gel seal closure (Weather shields) is a weatherproofing system for sealing coaxial cable jumper-to-feeder, jumper-to-antenna and grounding kit connectors exposed to the outside environment. The housing contains an innovative gel material and provides an efficient moisture block effectively water-proofing the connectors. The ease of installation and the long term protection makes it a reliable and cost effective sealing solution for outside plant cables and connectors.

    *IP rating 68

    *Certificated materials: housing—PC+ABS; gel--TBE

    *Wide temperature range: -40°C/+ 60°C

    *Quick and easy to install

    *No tape, mas tics or tools required for installation and removal

    *Easily removable and re-usable

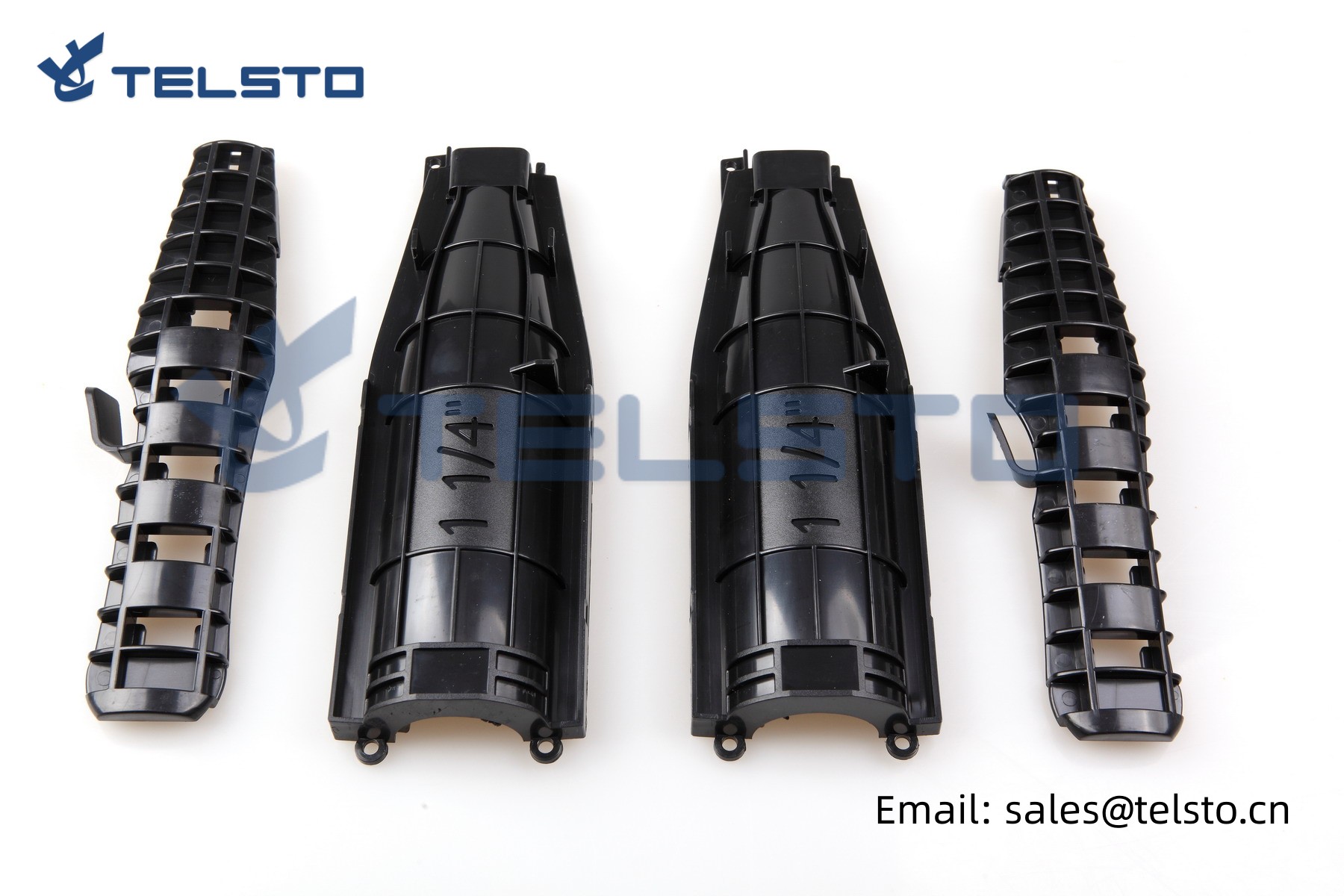

    Gel seal closure_1-2''J to 1-5-8''F_Telsto (2)
    Gel Seal Closure
    Model TEL-GEL-1/2J-1-5/8F
    Function Gel Seal Closure for 1/2"jumper to 1-5/8"feeder
    Material PC+SEBS
    Size L200mm,W88mm,H60mm
    Input 1/2"jumper(13-17mm)
    Output 1-5/8"feeder(35-40mm)
    Net Weight 300g
    Life/duration More than 10 years
    Corrosion and ultraviolet resistance H2S,passed ultraviolet test
    Ice-snow resistance up to 100mm,no water leakage, no shape change
    Waterproof level IP68
    Fireproof level HB
    Rainstorm resistance 100E 150mm/h



    usage method:

    Weather shield closures waterproof (3)
