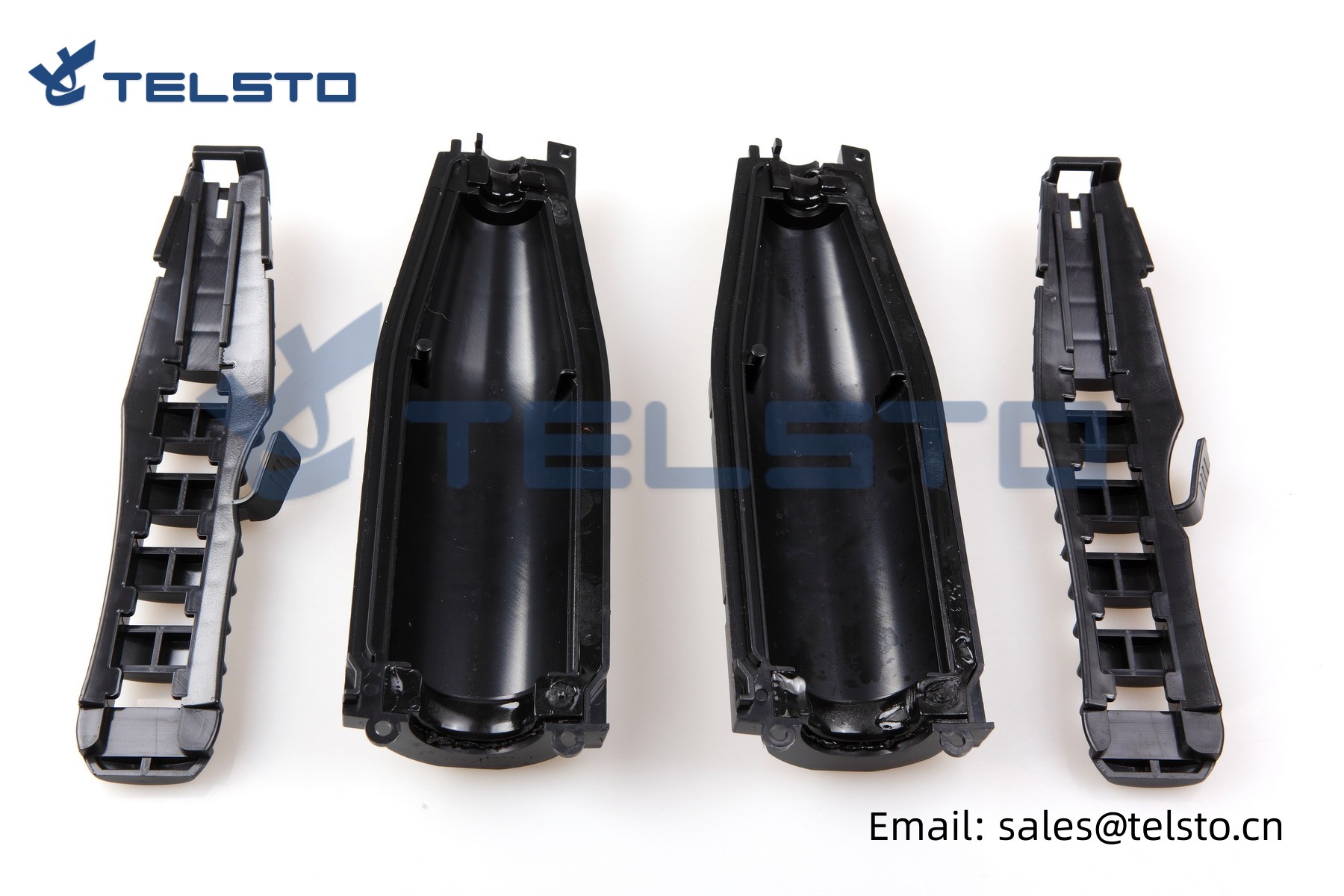

Gel Seal Closure for 1/2″jumper to 1-1/4″feeder
Telsto Gel seal closure (Weather shields) is a weatherproofing system for sealing coaxial cable jumper-to-feeder, jumper-to-antenna and grounding kit connectors exposed to the outside environment. The housing contains an innovative gel material and provides an efficient moisture block effectively water-proofing the connectors. The ease of installation and the long term protection makes it a reliable and cost effective sealing solution for outside plant cables and connectors.
*IP rating 68
*Certificated materials: housing—PC+ABS; gel--TBE
*Wide temperature range: -40°C/+ 60°C
*Quick and easy to install
*No tape, mas tics or tools required for installation and removal
*Easily removable and re-usable
| Gel Seal Closure | |
| Model | TEL-GE-1/2-1-1/4 |
| Function | Gel Seal Closure for 1/2"jumper to 1-1/4"feeder |
| Material | PC+SEBS |
| Size | L198mm,W79mm,H56mm |
| Input | 1/2"jumper(13-17mm) |
| Output | 1-1/4"feeder(26-32mm) |
| Net Weight | 275g |
| Life/duration | More than 10 years |
| Corrosion and ultraviolet resistance | H2S,passed ultraviolet test |
| Ice-snow resistance | up to 100mm,no water leakage, no shape change |
| Waterproof level | IP68 |
| Fireproof level | HB |
| Rainstorm resistance | 100E 150mm/h |
usage method：
