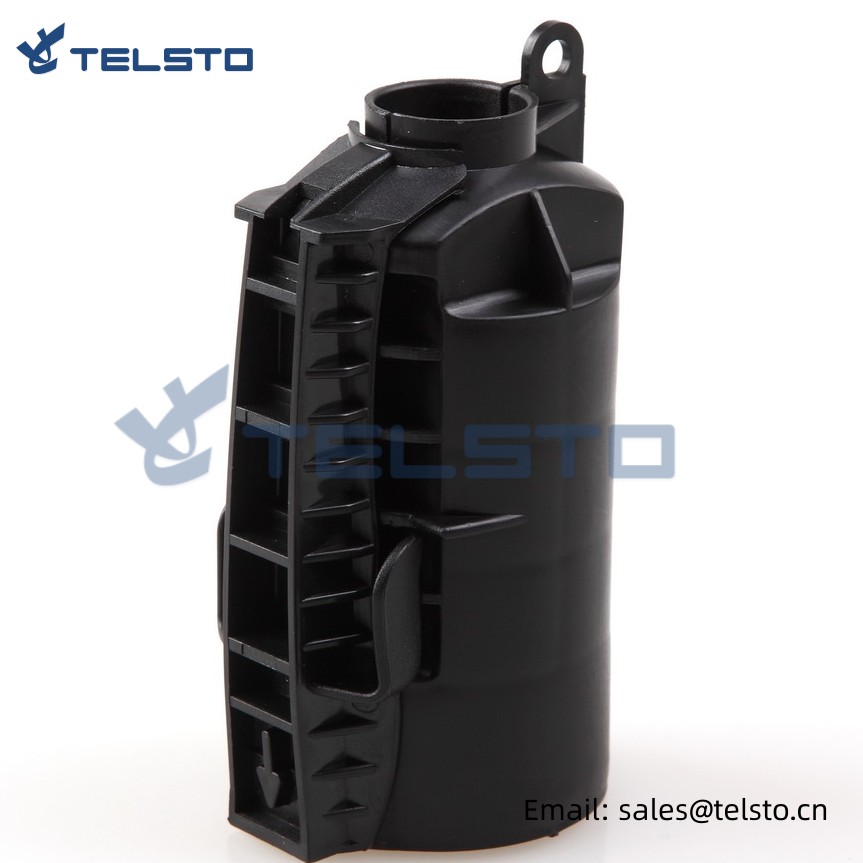

Gel Seal Closure for 1/2″jumper to antenna short
Description: Gel Seal Closure products provide a quick and low level installation skill set method to weatherproof “jumper to antenna” and “jumper to feeder” connections.Quick to install. The installation of Telsto Gel Seal Closures can be accomplished in seconds.There is virtually no training required for installers, and a good seal providing sound weatherproofing is accomplished every time.Telsto Gel Seal Closures are easy to remove, and in most cases are reusable.Telsto Gel Seal Closures are a wraparound design and require no disconnection of a cable connection.
Gel closure is a weatherproofing system sealing jumper-to-feeder and jumper-to-antenna connectors, which are exposed to the outside environment. The closure contains an innovative gel material and provides an efficient block against moisture & salt mist. The easy of installation and reusable feature makes them a cost-effective solution.
Our gel seal closures have passed strict tests from labs and achieve good feedback from long-term practical application with many telecom operators. Our GSC gel seal closures are equivalent to Tyco GSIC series gel seal closures.
Data Sheet
| Gel Seal Closure | |
| Model | TEL-GSC-1/2-J-AS |
| Function | Gel Seal Closure for 1/2"jumper to antenna short |
| Material | PC+SEBS |
| Size | L120mm,W60mm,H42mm |
| Input | 1/2"jumper(13-17mm) |
| Output | Antenna bolt |
| Net Weight | 78g |
| Life/duration | More than 10 years |
| Corrosion and ultraviolet resistance | H2S,passed ultra violate test |
| Ice-snow resistance | up to 100mm,no water leakage ,no shape change |
| Waterproof level | IP68 |
| Fireproof level | HB |
| Rainstorm resistance | 100E 150mm/h |
usage method：
