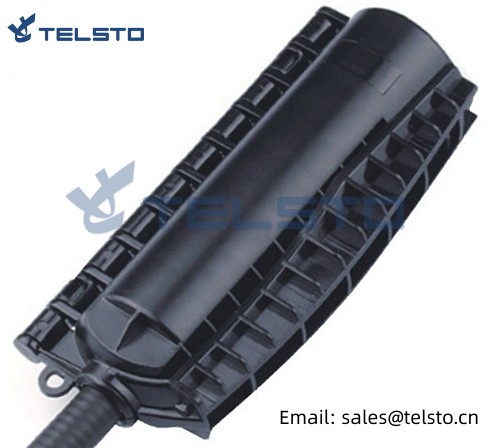

Gel Seal Closure for 1/2″jumper to antenna
Telsto slim seal gel seal weather proofing clam shell closure kit is a new kind of weather proofing enclosure which contains a highly compliant sealing gel that conforms to the entire connection rather than a perimeter seal, leading to a highly reliable weather protection performance.
● Quick to install. The installation of Telsto Gel Seal Closures can be accomplished in seconds.
● There is virtually no training required for installers, and a good seal providing sound weatherproofing is accomplished every time.
● Telsto Gel Seal Closures are easy to remove, and in most cases reusable.
● Telsto Gel Seal Closures are a wraparound design and require no disconnection of a cable connection.
| Gel Seal Closure | |
| Model | TEL-GSC-1/2-J-A |
| Function | Gel Seal Closure for 1/2"jumper to antenna |
| Material | PC+SEBS |
| Size | L150mm, W60mm, H42mm |
| Input | 1/2"jumper(13-17mm) |
| Output | Antenna bolt |
| Net Weight | 120g |
| Life/duration | More than 10 years |
| Corrosion and ultraviolet resistance | H2S, passed ultraviolet test |
| Ice-snow resistance | up to 100mm, no water leakage, no shape change |
| Waterproof level | IP68 |
| Fireproof level | HB |
| Rainstorm resistance | 100E 150mm/h |
| Connection size(min.-max.) | 13mm-17mm |
In addition, the enclosure retains all the advantages of earlier closures – quick and easy to install, no tools required, re-enter able and reusable-but the SLIM design better suited for crowded RF connection points of new emerging cell sites with multiple in, multiple out(MIMO) or multi band antenna configurations.
