Gel Seal Closure for 1/2″jumper to 1-5/8″feeder


  • Model Number: TEL-GSC-1/2-1-5/8
  • Brand Name: Telsto
  • Place of Origin: China (Mainland)
  • Application: Antenna Connector Closure
  • Use: Weatherproofing Kit
  • Market: Wireless Cell Site
  • Coax Connection: Antenna or In-line Connections
  • Color: Black
  • Material: PP/ABS/TBE
  • Sealing Class: IP68
  • Description

    Telsto series gel seal closure is a new kind of weatherproofing solutions designed to protect RF connections at wireless communication towers, for instance, 3G or 4G, LTE cell sites where RF connections are getting denser than ever before and the traditional weatherproofing solutions, tapes and mastic are difficult to use in such crowded places. Telsto series closures are re-usable, reusable and tool-less, making it time-saving, cost-effective and installer-friendly weatherproofing solution for the mobile base stations industry. Telsto closures find typical applications in covering RF connections on both antennas and RRU(Remote Radio Unit).

    Sealing properties of the gel provide a reliable protection over a wide temperature range (-40°C/+ 70°C)

    Wraparound and no disconnection of the connector

    Quick and easy to install

    Easy removable and re-usable

    Gel material provides an effective barrier against ingress of water and other contaminant's - IP rating 68

    No tape, no mas tics or tools required for installation and removal

    Model: TEL-GEL-1-5/8”Feeder to-1/2’’Jumper

    Description:  Gel Seal Closure products provide a quick and low level installation skill set method to weatherproof “jumper to antenna” and “jumper to feeder” connections.

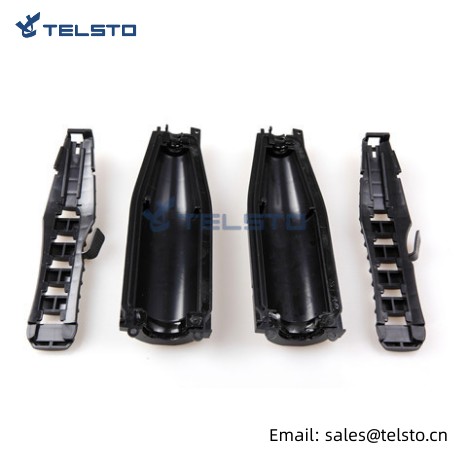

    Gel Seal Closure for 12jumper to 1-58feeder (2)
    Gel Seal Closure
    Model TEL-GEL-1/2J-1-5/8F
    Function Gel Seal Closure for 1/2"jumper to 1-5/8"feeder
    Material PC+SEBS
    Size L200mm,W88mm,H60mm
    Input 1/2"jumper(13-17mm)
    Output 1-5/8"feeder(35-40mm)
    Net Weight 300g
    Life/duration More than 10 years
    Corrosion and ultraviolet resistance H2S,passed ultraviolet test
    Ice-snow resistance up to 100mm,no water leakage, no shape change
    Waterproof level IP68
    Fireproof level HB
    Rainstorm resistance 100E 150mm/h



    usage method:

    Weather shield closures waterproof (3)
