Gel seal closure 38 to N
Gel seal closure, is a new kind of weatherproofing kit. It is designed to quickly seal the antenna connectors and feeder connectors in cellular sites. This closure contains an innovative gel material and provides an efficient block against moisture & salt mist.
Gel seal weather shield have pass strict tests from labs and achieve good feedback from long-term practical application. The ease of installation and reusable feature makes them a cost-effective solution.
Telsto Gel seal closure (Weather shields) is a weatherproofing system for sealing coaxial cable jumper-to-feeder, jumper-to-antenna and grounding kit connectors exposed to the outside environment. The housing contains an innovative gel material and provides an efficient moisture block effectively water-proofing the connectors. The ease of installation and the long term protection makes it a reliable and cost effective sealing solution for outside plant cables and connectors.
*IP rating 68
*Certificated materials: housing—PC+ABS; gel--TBE
*Wide temperature range: -40°C/+ 60°C
*Quick and easy to install
*No tape, mas tics or tools required for installation and removal
*Easily removable and re-usable
● Sealing properties of the gel provide a reliable protection over a wide temperature range (-40°C/+ 70°C)
● Wraparound and no disconnection of the connector
● Quick and easy to install
● Easily removable and re-usable
● Waterproofing IP rating 68
●No tape, no mastics or tools required for installation and remova
| Weatherproofing Enclosure | |

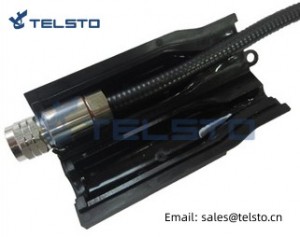

| Model | TEL-GSC-38-N |
| Function | For 3/8" Cable to RRU N Connector |
| Material | PC+SEBS |
| Size | L120(mm)*W48(mm)*H30(mm) |
| Input | 3/8’’ cable |
| Output | RRU N connector |
| Net Weight | 73.5g |
| Life/duration | More than 10 years |
| Corrosion and ultraviolet resistance | H2S, passed ultra-violate test |
| Ice-snow resistance | up to 100mm, no water leakage, no shape change |
| Waterproof level | IP68 |
| Fireproof level | HB |
| Rainstorm resistance | 100E 150mm/h |
| Connection size(min.-max.) | 6mm-13mm |
| Item No. | Product Description. |
| GSC-12ANT | Gel seal closure for 1/2" jumper cable to antenna. |
| GSC-12ANT-S | Gel seal closure for 1/2" jumper cable to antenna, short version. |
| GSC-7812 | Gel seal closure for 1/2" jumper cable to 7/8" feeder. |
| GSC-11412 | Gel seal closure for 1/2" jumper cable to 1-1/4" feeder. |
| GSC-15812 | Gel seal closure for 1/2" jumper cable to 1-5/8" feeder. |
| GSC-12GROUND | gel seal closure for 1/2" grounding kit |
| GSC-78GROUND | gel seal closure for 7/8" grounding kit |
| GSC-12SRRU | gel seal closure for 1/2" super flexible to RRU N connector |
| GSC-12N | gel seal closure for 1/2" N connector |
| GSC-12SN | gel seal closure for 1/2" super flexible to N connector |
| GSC-12MINIDIN | gel seal closure for 1/2" to mini DIN connector |
