TEL-GSC-1/2”Jumper-Antenna Short


  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Telsto
  • Model Number: TEL-GSC-1/2-J-AS
  • Description

    Gel seal closure, is a new kind of weatherproofing kit. It is designed to quickly seal the antenna connectors and feeder connectors in cellular sites. This closure contains an innovative gel material and provides an efficient block against moisture & salt mist.

    Gel seal weather shield have pass strict tests from labs and achieve good feedback from long-term practical application. The ease of installation and reusable feature makes them a cost-effective solution.

    Telsto Gel seal closure (Weather shields) is a weatherproofing system for sealing coaxial cable jumper-to-feeder, jumper-to-antenna and grounding kit connectors exposed to the outside environment. The housing contains an innovative gel material and provides an efficient moisture block effectively water-proofing the connectors. The ease of installation and the long term protection makes it a reliable and cost effective sealing solution for outside plant cables and connectors.

    *IP rating 68

    *Certificated materials: housing—PC+ABS; gel--TBE

    *Wide temperature range: -40°C/+ 60°C

    *Quick and easy to install

    *No tape, mas tics or tools required for installation and removal

    *Easily removable and re-usable

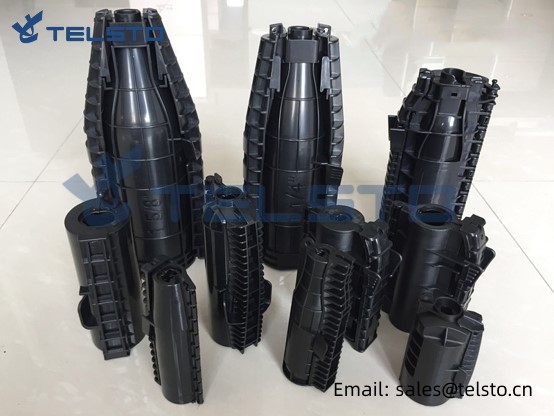

    Gel seal closure 1-2'' to antenna short_Telsto (3)
    Gel Seal Closure
    Model TEL-GSC-1/2-J-AS
    Function Gel Seal Closure for 1/2"jumper to antenna short
    Material PC+SEBS
    Size L120mm,W60mm,H42mm
    Input 1/2"jumper(13-17mm)
    Output Antenna bolt
    Net Weight 78g
    Life/duration More than 10 years
    Corrosion and ultraviolet resistance H2S,passed ultraviolate test
    Ice-snow resistance up to 100mm,no water leakage ,no shape change
    Waterproof level IP68
    Fireproof level HB
    Rainstorm resistance 100E 150mm/h
    Item No. Product Description.
    GSC-12ANT Gel seal closure for 1/2" jumper cable to antenna.
    GSC-12ANT-S Gel seal closure for 1/2" jumper cable to antenna, short version.
    GSC-7812 Gel seal closure for 1/2" jumper cable to 7/8" feeder.
    GSC-11412 Gel seal closure for 1/2" jumper cable to 1-1/4" feeder.
    GSC-15812 Gel seal closure for 1/2" jumper cable to 1-5/8" feeder.
    GSC-12GROUND gel seal closure for 1/2" grounding kit
    GSC-78GROUND gel seal closure for 7/8" grounding kit
    GSC-12SRRU gel seal closure for 1/2" super flexible to RRU N connector
    GSC-12N gel seal closure for 1/2"  N connector
    GSC-12SN gel seal closure for 1/2" super flexible to N connector
    GSC-12MINIDIN gel seal closure for 1/2"  to mini DIN connector
