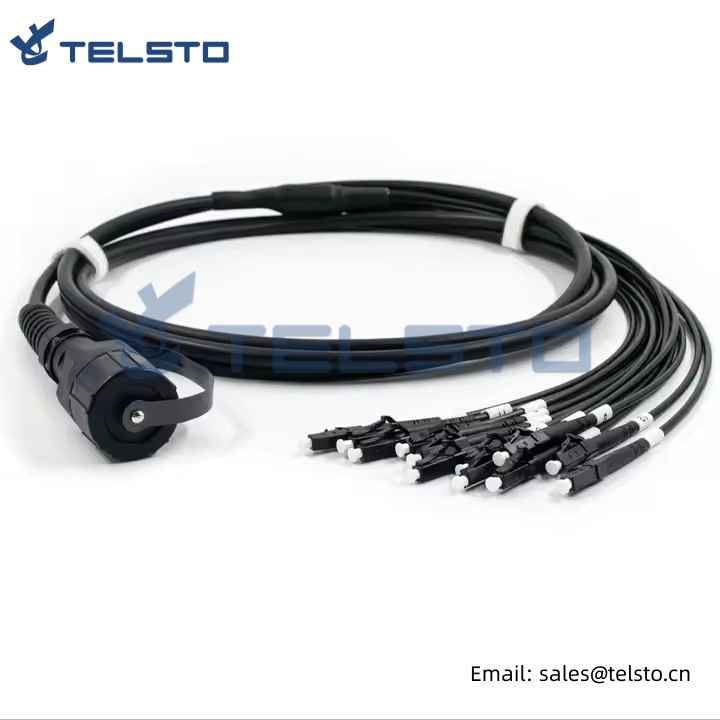

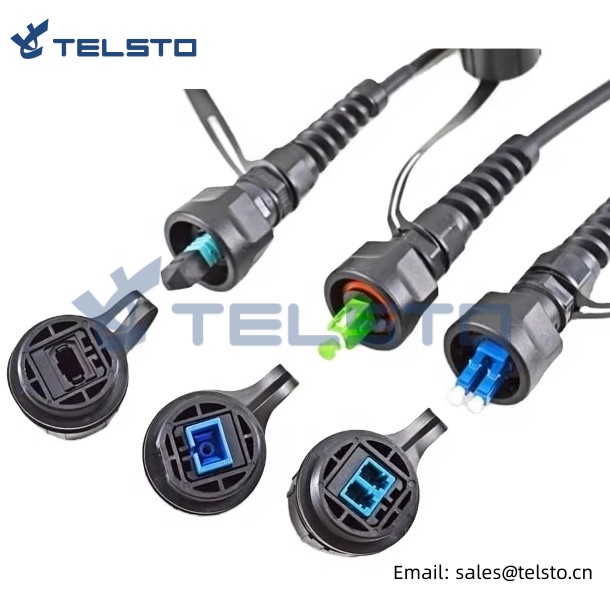

FTTA 5G Waterproof Outdoor Connector ODVA MPO Female Fiber Optic Patch Cord
FTTA 5G Waterproof Outdoor Connector ODVA MPO Female Fiber Optic Patch Cord
This FTTA 5G Waterproof Outdoor Connector ODVA MPO Female Fiber Optic Patch Cord is designed for use in harsh outdoor environments, particularly in 5G and other advanced telecommunications networks. It features a robust and waterproof design to ensure reliable performance in a wide range of conditions.
Features
• Excellent flexibility for remote traction
• Low insertion and back reflection loss
• Good exchangeability
• Good durability
• High temperature stability
• Designed for FTTA application
• For wireless horizontal and vertical cabling in outdoor environment Application
This FTTA 5G waterproof outdoor connector ODVA MPO female fiber optic patch cord is primarily utilized in the following multi-purpose outdoor scenarios:
• Connection Between Distribution Box and RRH: The patch cord is designed for connecting distribution boxes to Remote Radio Heads (RRHs), enabling efficient signal transmission in wireless communication networks.
• Remote Radio Head Cell Tower Applications: Suitable for deployment in Remote Radio Head cell towers, it supports the signal transmission requirements of 5G and future communication technologies.
These application scenarios collectively demonstrate the importance and practicality of this patch cord in outdoor wireless communication networks. Its high performance and reliability make it an indispensable component in building modern wireless communication networks.
Performance index
| Type | SM-UPC | SM-APC | MM-UPC | ||||||
| Typical | MAX | Typical | MAX | Typical | MAX | Typical | |||
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB | |||
| Return loss | ≥50dB | ≥30dB | ≥30dB | ||||||
| Durability | 500 mating cycles | ||||||||
| Working temperature | -40 to + 85℃ | ||||||||
