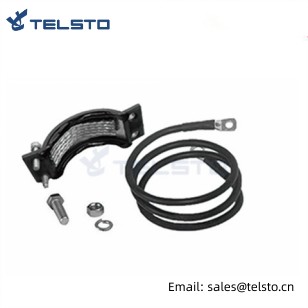

Grounding kits as a fixed device, suitable for communication base station, repeater stations, indoor coverage system, wireless paging and microwave communication system, the transmission cable is the Eiffel Tower, go line, indoor and outdoor and subway and tunnel cloth fixed effect, and can be used in different high and low temperature range.
● Various type for choose
● Lower price
● Soon delivery
Framework Type | for 1/4" coaxial cable | TEL-GK-F-1/4 |
for 1/2" coaxial cable | TEL-GK-F-1/2 | |
for 7/8" coaxial cable | TEL-GK-F-7/8 | |
for 1-1/4" coaxial cable | TEL-GK-F-5/4 | |
for 1-5/8" coaxial cable | TEL-GK-F-13/8 |
Name | Specification | Brand | Material |
Jump ring | OEM | Stainless steel SUS304 | |
Grounding strap | OEM | Copper | |
Rivet /Bolt kit | OEM | Copper/ Stainless steel 304 | |
Cable lug | M6 | OEM | Copper, Tin-plated |
Heat shrinkable tube | OEM | Polyolefin | |
Grounding cable 16mm2 | GBBV 16mm2 | OEM | Copper (Conductor)
PVC (Jacket), Black |
Single hole Cable lug | M8 | OEM | Copper, Tin-plated |
Nut M8 | M8 | OEM | Stainless steel 304, passivization |
Bolt M8×25 | M8×25 | OEM | Stainless steel SUS304,passivization |
Spring washer | M8 | OEM | Stainless steel SUS304,passivization |
Plain washer | M8 | OEM | Stainless steel SUS304,passivization |
