Fiber Optical Drop Cable 100M 50M SC Fibera Optica Patchcord Indoor Outdoor Cable Fiber Optic Drop Patch Cords

Fiber Optical Drop Cable 100M 50M SC Fibera Optica Patchcord Indoor Outdoor Cable Fiber Optic Drop Patch Cords


  • Type: Fiber Optic Cable
  • Model Number: SC/UPC SC/UPC
  • Brand Name: TELSTO
  • Key words: Drop Cable Patch Cord
  • Packing: opp bag package
  • Sheath color: Black/White
  • Product name: ftth drop cable
  • Fiber Type: G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
  • Application: Indoor/ Outdoor FTTH
  • Messenger Wire: Galvanized Steel
  • Connector Type: SC/UPC-SC/UPC
  • Jacket: PVC LSZH
  • Origin: Shanghai
  • Description

    Telsto Fiber Optic Patch Cords are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and a precision moulded polymer housing provides consistent long-term mechanical and optical performance.

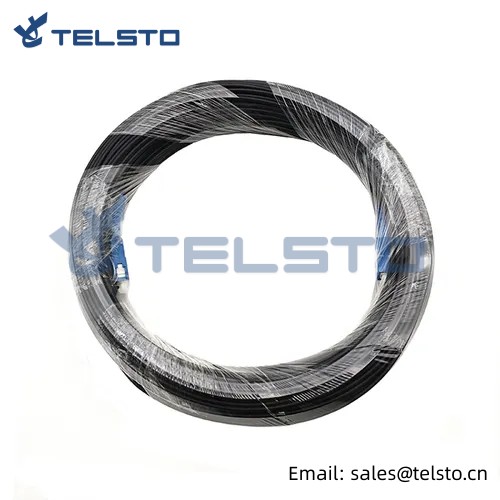

    Fiber Optical Drop Cable 100M 50M SC Fibera Optica Patchcord (1)

    Application

    1; Telecommunication networks;

    2; Local area networks; CATV;

    3; Active device termination;

    4; Data center system networks;

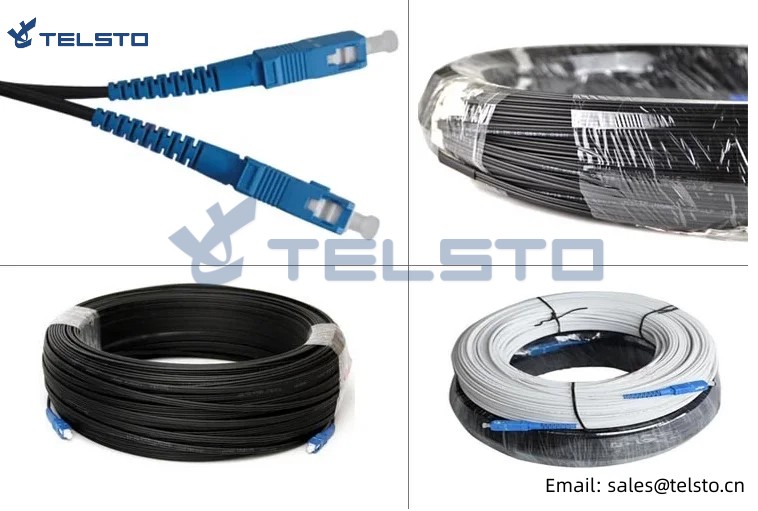

    Fiber Optical Drop Cable 100M 50M SC Fibera Optica Patchco (3)

    Products Description

    MODEL NO

    Drop Patch Cords

    Fiber Type

    SM ( G652D / G657A1 / G657A2 )

    Cable Assembilies

    Simplex

    Jacket Material

    LSZH

    Cable OD(mm)

    2.0x5.0mm / 2.0x3.0mm

    Fiber Type

    G657A1 / G675A2

    Connector Type

     SC / LC / FC / ST

    End Face

    UPC / APC

    Fiber diameter(um)

    9/125

    Cable length

    1M, 2M,3M,5M,10M,20M, …100M,1000M optional

    Working Wavelength (nm)

    1310/1550

    Insertion Loss (dB)

    ≤0.3dB(MAX) ≤0.2dB(Typical)

    Return Loss (dB)

    UPC ≥50dB APC ≥60dB

    Exchangeability

    ≤0.2dB

    Operating Temperature(℃)

    -40~85

    Storage Temperature(℃)

    -40~85
