Fiber Optic Patch Cable SC Fiber Optic Jumper Optical Patch Cord Communication

Fiber Optic Patch Cable SC Fiber Optic Jumper Optical Patch Cord Communication


  • Model Number: sc fiber optic equipment
  • Brand Name: sc fiber optic equipment
  • Item: fiber patch cord bocheng SC-SC fiber pigtail
  • Fiber Type: G652D,G657A,OM1,OM2,OM3,OM4
  • Connector Type: SC
  • Outsheath: PVC,PE,LSZH.
  • Color: Yellow,orange,aqua.red or Customized
  • Type: fiber optic equipment
  • Operating Temperature: -20°c +60°c
  • Standards: YD/T 1258.2-2003,ICEA-596,GR-409,IEC794,OFNR & OFNP.
  • No. of Fiber: 1
  • Use: FTTX
  • Origin: Shanghai
  • Description

    Telsto Fiber Optic Patch Cords are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and a precision moulded polymer housing provides consistent long-term mechanical and optical performance.

    Fiber Optic Patch Cable SC Fiber Optic Jumper Optical Patch Cord Communication (2)

    Feature

    - Duplex cable
    - LSZH
    - Connector with ceramic ferrule
    - Connector 1:LC APC; Connector 2:LC UPC
    - Mode: Singlemode
    - Fiber classes: OS2, 9/125 μ;

    - Package: polybag with sticker

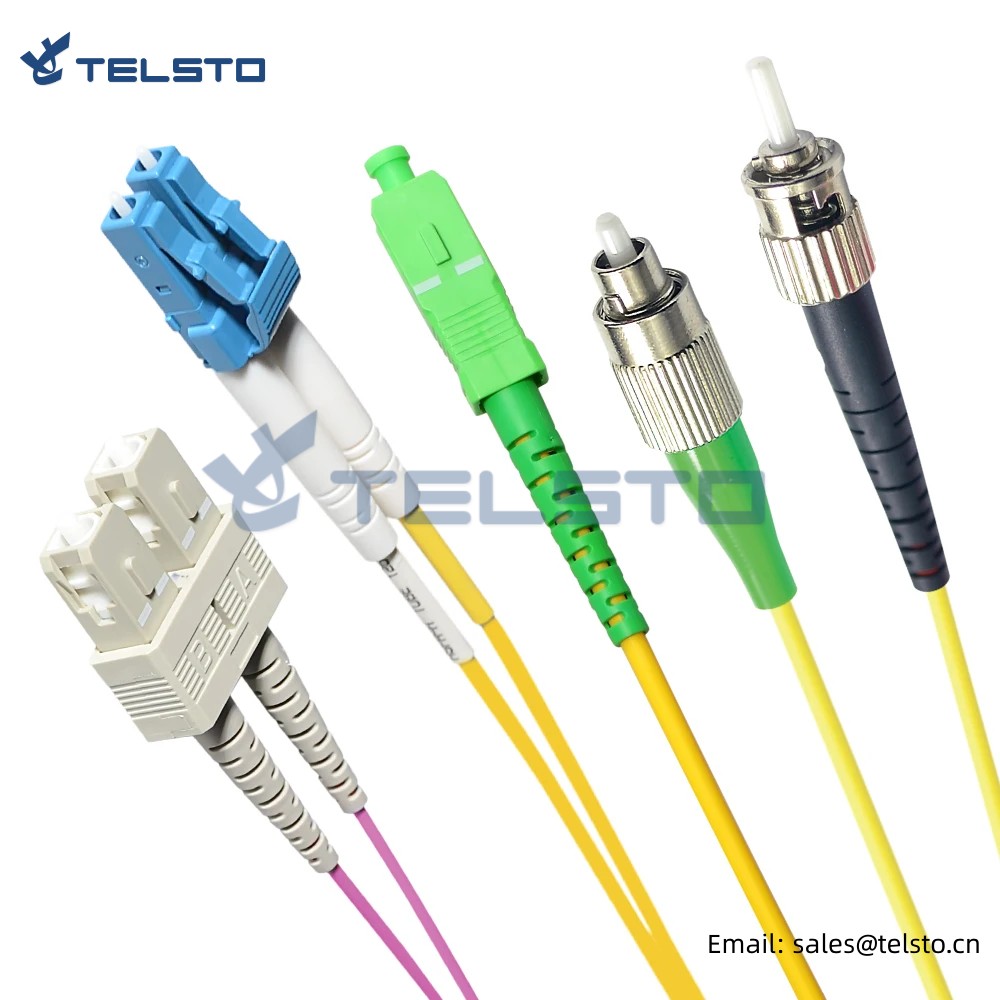

    Fiber Optic Patch Cable SC Fiber Optic Jumper Optical Patch Cord Communication (1)

    Products Description

    Item SC-SC Fiber optic patch cord
    Ferrule end-face PC UPC APC
    Connector type FC,SC,LC,ST,MTRJ,MU,E2000,MPO
    Cable type SX/LSZH
    Mode SM:9/125
    Cable diameter 0.9mm,2.0mm,3.0mm
    Insertion loss ≤0.2 and ≤0.3dB
    Return loss ≥50 and ≥65dB
    Exchangeability ≤0.2dB
    Vibration ≤0.2dB
    Operating temperature -40 to 75℃
    Storage temperature -45 to 85℃
    Tensile force 50N/static state 30N/used state
