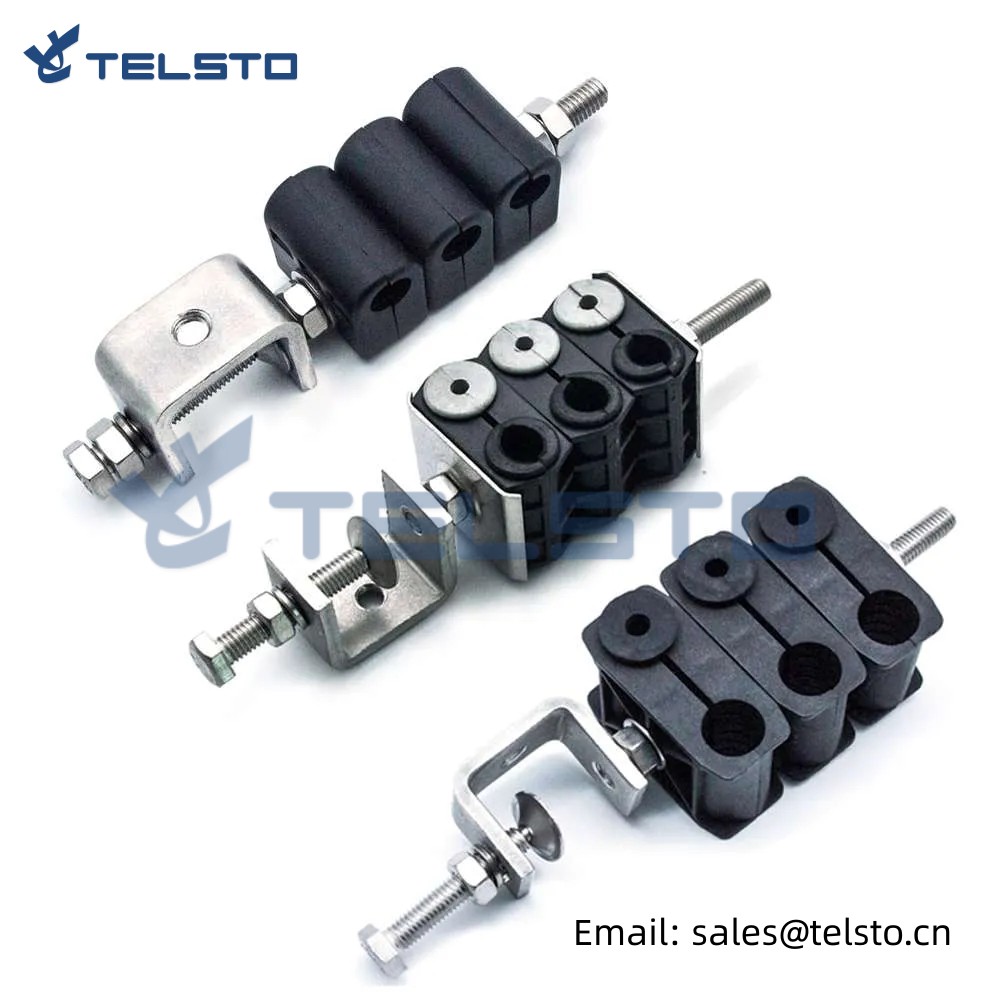

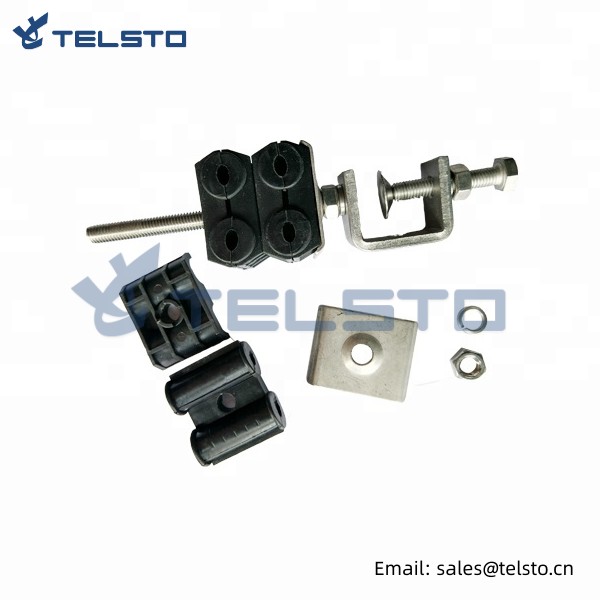

Feeder clamp for 12’’ cable 6 holes
Feeder clamps are widely used in site installation to fix RF coaxial feeder cables onto base towers (BTS). Telsto feeder clamps are designed for different BTS site installation and kinds of antenna system. The material of these products is high standard stainless steel and high quality plastics.
*Various stainless steel feeder clamps are applicable for fixing feeders.
*Made of high quality anti-acid steel.
*Modified plastics and non-rusting.
The clamp is designed to support 1 to 6 cables with the dimensions of 1/2”, 7/8”, 1 1/4”, 1 5/8“ and 2 1/4”
It is installed on cable ladder, rung, bracket, i-beam, profile such as towers, ladders and masts at telecom site
Without additional adapters, provide sturdy, reliable, long-term support
· Each block holds two runs of cable to reduce installation cost
· Easy-to-install
· Wind loaded
· UV and corrosion resistant with SUS304/steel dacro bracket
· Capable to working in extreme temperature
· Recommend distance of clamps:0.8-1.0m
| Trade terms | CIF, DDU, EX-WORKS |
| Payment terms | T/T, L/C, Negotiable |
| MOQ | 1 |
| Supply capability | 1000000 pieces per month |
| Lead time | 3-15 days |
| Shipment | Sea, Air, Express |
| Port | Shanghai |
| Sample availability | Yes |
| Sample time | 3-5 days |
| Packaging | Plastic bag, Carton, Pallet |
| Product | Description | Part No. |
| Single Type | For 1/2" cable, 1 run | TEL-FC-S-1x1/2 |
| For 1/2" cable, 2 runs | TEL-FC-S-2x1/2 | |
| For 1/2" cable, 3 runs | TEL-FC-S-3x1/2 | |
| For 7/8" cable, 1 run | TEL-FC-S-1x7/8 | |
| For 7/8" cable, 2 runs | TEL-FC-S-2x7/8 | |
| For 7/8" cable, 3 runs | TEL-FC-S-3x7/8 | |
| For 1-1/4" cable, 1 run | TEL-FC-S-1x5/4 | |
| For 1-1/4" cable, 2 runs | TEL-FC-S-2x5/4 | |
| For 1-1/4" cable, 3 runs | TEL-FC-S-3x5/4 | |
| For 1-5/8" cable, 1 run | TEL-FC-S-1x13/8 | |
| For 1-5/8" cable, 2 runs | TEL-FC-S-2x13/8 | |
| For 1-5/8" cable, 3 runs | TEL-FC-S-3x13/8 | |
| Double Type | For 1/2" cable, 2 runs | TEL-FC-D-2x1/2 |
| For 1/2" cable, 4 runs | TEL-FC-D-4x1/2 | |
| For 1/2" cable, 6 runs | TEL-FC-D-6x1/2 | |
| For 7/8" cable, 2 runs | TEL-FC-D-2x7/8 | |
| For 7/8" cable, 4 runs | TEL-FC-D-4x7/8 | |
| For 7/8" cable, 6 runs | TEL-FC-D-6x7/8 | |
| For 1-1/4" cable, 2 runs | TEL-FC-D-2x5/4 | |
| For 1-1/4" cable, 4 runs | TEL-FC-D-4x5/4 | |
| For 1-1/4" cable, 6 runs | TEL-FC-D-6x5/4 | |
| For 1-5/8" cable, 2 runs | TEL-FC-D-2x13/8 | |
| For 1-5/8" cable, 4 runs | TEL-FC-D-4x13/8 | |
| For 1-5/8" cable, 6 runs | TEL-FC-D-6x13/8 |

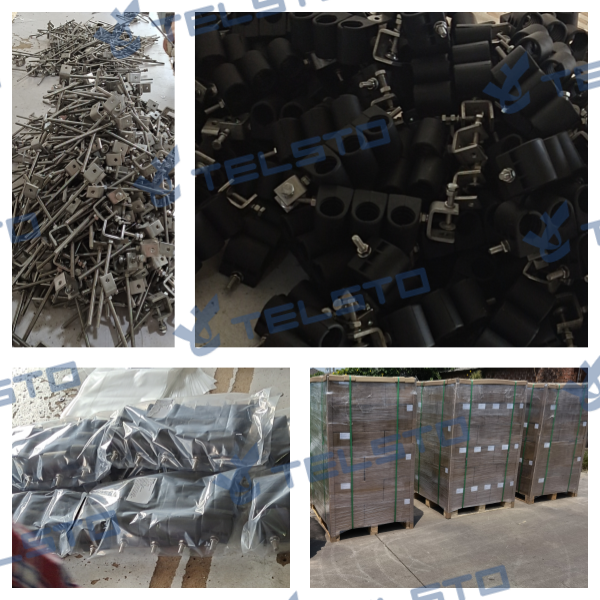

Packaging & Delivery
Packaging Details:Plastic bag, Carton, Pallet
Delivery Time:3-15 days
