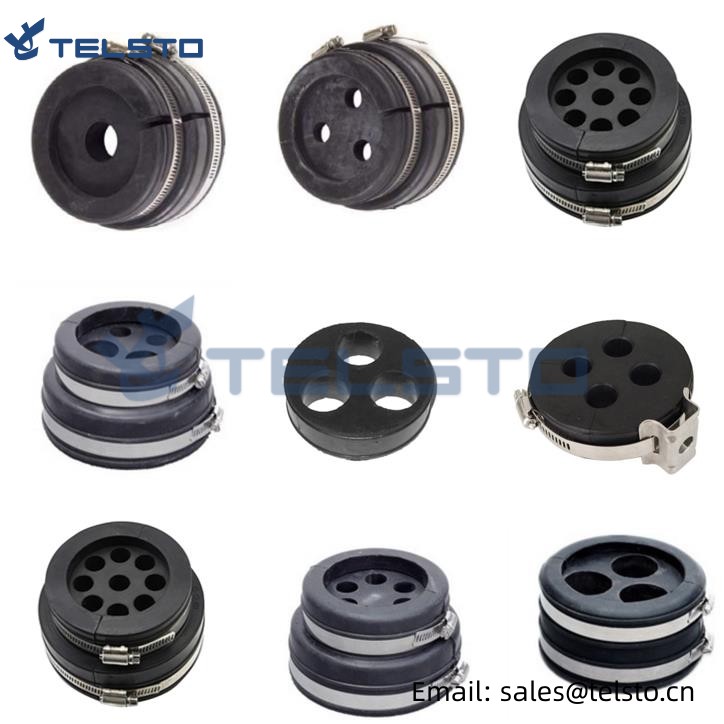

4” Entry Boots Assembly with 7/8’’ 1 hole


  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Telsto
  • Type: two hose clamp type
  • Material: EPDM rubber or ordinary rubber
  • Mounts to: cable entry panels
  • Mature: easy to install solutions
  • Application: Entry port solutions
  • Design: Compression boot kit for aluminum entry panels
  • Feature: One-piece design simplifies installation
  • Material: EPDM Rubber
  • Includes: Boot, cushion, two hose clamps
  • Description

    Boot Assembly kit cable entry boot include :

    1. A outer boot. (EPDM Rubber or natural rubber)

    2. A select able inner cushion insert. (EPDM Rubber or natural rubber)

    3. Two hose clamp. (Stainless steel 304)

    Introduction:

    Each Assembly cable entry boot include :

    1. A outer boot. (EPDM Rubber)

    2. A select able inner cushion insert. (EPDM Rubber)

    3. Two hose clamp. (Stainless steel)

    The 4" cable entry boot, is made of EPDM rubber. The material is unaffected by ozone, sunlight, aging, or temperature extremes. It is to be installed to the 4" entry panel, and allow the various coaxial cable go into the shelter through them.

    One piece design for easy installation and superior water sealing properties.

    Entry Boots Assembly with 78’’ 1 hole  (2)
    Entry Boots Assembly with 78’’ 1 hole  (3)
    General Specifications
     Type Entry Boot 4’’
    Mounts to 4’’ Entry Panel
    Includes Boot, cushion, two hose clamps
    Application Entry Port Solutions
    Material Type Rubber
    Hose Clamp Material Stainless Steel 304
    Cable  Size 7/8” Foam Coax
    Hole Single Hole
