DIN Male connector for 1/2″ Super flexible RF cable


  • Type: DIN connector
  • Application: RF
  • Gender: Male
  • Plating: Nickel and Gold
  • Material: Brass and Teflon
  • Product name: DIN Male connector for 1/2" Super flexible RF cable
  • Connector type: DIN 7/16 Male
  • Impedance: 50 Ohm
  • Weatherproof Rate: IP67
  • HS Code: 85369090
  • Description

    Specifications

    Product Support

    Telsto RF Connector has an operational frequency range of DC-6 GHz, offers excellent VSWR performance and Low Passive Inter modulation. This makes it ideally suited for use in cellular base stations, distributed antenna systems (DAS) and small cell applications.

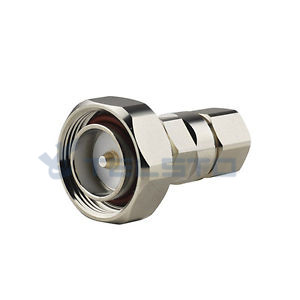

    din male 12s

    7-16(DIN) coaxial connectors-high-quality coaxial connectors with low attenuation and inter-modulation.Transmission of medium to high power with radio transmitters and low PIM transmission of received signals such as in mobile phone base stations are typical applications due to their high mechanical stability and best possible weather resistance.

    Interface
    According to IEC 60169-4
    Electrical
    Characteristic Impedance 50 ohm
    Frequency Range DC-7.5GHz
    VSWR VSWR≤1.10(3.0G)
    PIM3 ≤-160dBc@2x20w
    Dielectric Withstanding Voltage ≥4000V RMS,50hz,at sea level
    Contact Resistance Center Contact ≤0.4mΩ Outer Contact ≤1.5mΩ
    Dielectric Resistance ≥10000MΩ
    Mechanical
    Durability Mating cycles  ≥500cycles
    Material and plating
      Material plating
    Body Brass Tri-Alloy
    Insulator PTFE -
    Center conductor Tin Phosphor bronze Ag
    Gasket SIlicone rubber -
    Other Brass Ni
    Environmental
    Temperature Range -40℃~+85℃
    Rosh-compliance Full ROHS compliance
    Material and Plating
    Center contact Brass / Silver Plating
    Insulator PTFE
    Body & Outer Conductor Brass / alloy plated with tri-alloy
    Gasket Silicon Rubber
    Electrical Characteristics
    Characteristics Impedance 50 Ohm
    Frequency Range DC~3 GHz
    Insulation Resistance ≥5000MΩ
    Dielectric Strength 2500 V rms
    Center contact resistance ≤0.4 mΩ
    Outer contact resistance ≤1.0 mΩ
    Insertion Loss ≤0.08dB@3GHz
    VSWR ≤1.08@-3.0GHz
    Temperature range -40~85℃
    PIM  dBc(2×20W) ≤-155 dBc(2×20W)
    Waterproof IP67
    Product Description Part No.
    7/16 DIN Type DIN Female connector for 1/2" flexible RF cable TEL-DINF.12-RFC
    DIN Female connector for 1/2" Super flexible RF cable TEL-DINF.12S-RFC
    DIN Female connector for 1-1/4" flexible RF cable TEL-DINF.114-RFC
    DIN Female connector for 1-5/8" flexible RF cable TEL-DINF.158-RFC
    DIN Female Right Angle connector for 1/2" flexible RF cable TEL-DINFA.12-RFC
    DIN Female Right Angle connector for 1/2" Super flexible RF cable TEL-DINFA.12S-RFC
    DIN Male connector for 1/2" flexible RF cable TEL-DINM.12-RFC
    DIN Male connector for 1/2" Super flexible RF cable TEL-DINM.12S-RFC
    DIN Female connector for 7/8'' coaxial RF cable TEL-DINF.78-RFC
    DIN Male connector for 7/8" coaxial RF cable TEL-DINM.78-RFC
    DIN Male connector for 1-1/4" flexible RF cable TEL-DINM.114-RFC
    N Type N Female connector for 1/2" flexible RF cable TEL-NF.12-RFC
    N Female connector for 1/2" Super flexible RF cable TEL-NF.12S-RFC
    N Female Angle connector for 1/2" flexible RF cable TEL-NFA.12-RFC
    N Female Angle connector for 1/2" Super flexible RF cable TEL-NFA.12S-RFC
    N Male connector for 1/2" flexible RF cable TEL-NM.12-RFC
    N Male connector for 1/2" Super flexible RF cable TEL-NM.12S-RFC
    N Male Angle connector for 1/2" flexible RF cable TEL-NMA.12-RFC
    N Male Angle connector for 1/2" Super flexible RF cable TEL-NMA.12S-RFC
    4.3-10 Type 4.3-10 Female connector for 1/2" flexible RF cable TEL-4310F.12-RFC
    4.3-10 Female connector for 7/8" flexible RF cable TEL-4310F.78-RFC
    4.3-10 Female Right Angle connector for 1/2" flexible RF cable TEL-4310FA.12-RFC
    4.3-10 Female Right Angle connector for 1/2" Super flexible RF cable TEL-4310FA.12S-RFC
    4.3-10 Male connector for 1/2" flexible RF cable TEL-4310M.12-RFC
    4.3-10 Male connector for 7/8" flexible RF cable TEL-4310M.78-RFC
    4.3-10 Male Right Angle connector for 1/2" flexible RF cable TEL-4310MA.12-RFC
    4.3-10 Male Right Angle connector for 1/2" Super flexible RF cable TEL-4310MA.12S-RFC
    Filters and Combiners

    Telsto always believes the philosophy that customer service should be paid high attention which will be value of us.

    TEL-4310M.LMR400-RFC 3

    ● Pre-sales service and after-sales service are same important for us. For any of concerns please contact us via the most convenient method, we are available for you 24/7.
    ● Flexible design, drawing & molding service are available per customer’s application.
    ● Quality warranty and techincal support are provided.
    ● Establish the user files and provide lifelong tracking service.
    ● Strong commercial ability of solving problem.
    ● Knowledgeable staff to hand all of your account and documents needed.
    ● Flexible payment methods such as Paypal, Western Union, T/T, L/C, etc.
    ● Different shipment methods for your choices: DHL, Fedex, UPS, TNT, by sea, by air...
    ● Our forwarder has many branches overseas, we will choose most efficient shipping line for our client based on FOB terms.

    Our Services

    1. Reply your enquiry in 24 working hours.
    2. Customized design is available. OEM &ODM are welcome.
    3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
    4. Quick delivery time for decent order.
    5. Experienced in doing business with large listed companies.
    6. Free Samples can be provided.
    7. 100% Trade Assurance of payment & quality.

    Related

    Product Detail Drawing06
    Product Detail Drawing03
    Product Detail Drawing05
    Product Detail Drawing02

  • Previous:
  • Next:

  • TEL-DINM.12S-RFC01

    Model: TEL-DINM.12S-RFC

    Description

    Din 7/16 Male connector for 1/2″ Superflexible cable

    Material and Plating
    Center contact Brass / Silver Plating
    Insulator PTFE
    Body & Outer Conductor Brass / alloy plated with tri-alloy
    Gasket Silicon Rubber
    Electrical Characteristics
    Characteristics Impedance 50 Ohm
    Frequency Range DC~3 GHz
    Insulation Resistance ≥5000MΩ
    Dielectric Strength 2500 V rms
    Center contact resistance ≤0.4 mΩ
    Outer contact resistance ≤1.0 mΩ
    Insertion Loss             ≤0.08dB@3GHz
    VSWR                    ≤1.08@-3.0GHz
    Temperature range  -40~85℃
    PIM  dBc(2×20W) ≤-160 dBc(2×20W)
    Waterproof IP67

    Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable

    Structure of connector: ( Fig1 )
    A. front nut
    B. back nut
    C. gasket

    Installation Instructions001

    Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
    1. The end surface of inner conductor should be chamfered.
    2. Remove impurities such as copper scale and burr on the end surface of the cable.

    Installation Instructions002

    Assembling the sealing part: Screw the sealing part in  along the outer conductor of the cable as shown by the diagram ( Fig3).

    Installation Instructions003

    Assembling the back nut  (Fig3).

    Installation Instructions004

    Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
    1. Before screwing, smear a layer of lubricating grease on the o-ring.
    2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.

    Installation Instructions005
