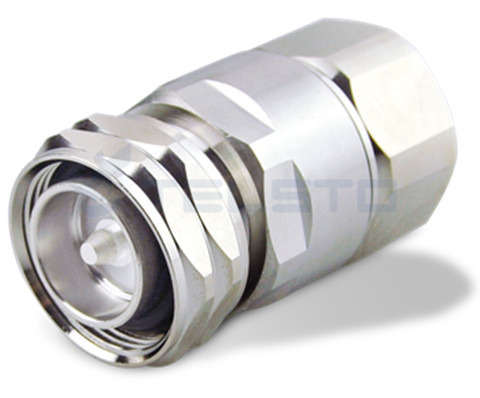

DIN 7/16 Male connector for 7/8″ flexible RF cable


  • Place of Origin: China (Mainland)
  • Brand Name: Telsto
  • Model: TEL-DINM.78-RFC
  • Type: RF Connector
  • Application: RF
  • Gender: Male
  • Impedance: 50 Ohm
  • Voltage Proof: 2.5KV/50Hz
  • Material: Brass
  • Durability: ≥500 times
  • Temperature Range: -40℃ ~+85℃
  • Water tightness: IP67
  • Rosh- compliance: Full ROHS compliance
  • Salt-fog test: 96h
  • Matching Cable: According to your requirements
  • Description

    Specifications

    Product Support

    7-16(DIN) coaxial connectors-high-quality coaxial connectors with low attenuation and inter-modulation.Transmission of medium to high power with radio transmitters and low PIM transmission of received signals such as in mobile phone base stations are typical applications due to their high mechanical stability and best possible weather resistance.

    TEL-DINM.78-RFC

    1. CNC machines, advanced test equipment.
    2. All products are suit for ROHS.
    3. ISO9001 certificate.

    Related

    DIN MALE TO 78
    screw type coaxial connector Din male to 78

  • Previous:
  • Next:

  • TEL-DINM.78-RFC 1

    Model: TEL-DINM.78-RFC

    Description

    DIN 7/16 Male connector for 7/8″ flexible cable

    Material and Plating
    Center contact Brass / Silver Plating
    Insulator PTFE
    Body & Outer Conductor Brass / alloy plated with tri-alloy
    Gasket Silicon Rubber
    Electrical Characteristics
    Characteristics Impedance 50 Ohm
    Frequency Range DC~3 GHz
    Insulation Resistance ≥5000MΩ
    Dielectric Strength 4000 V rms
    Center contact resistance ≤0.4mΩ
    Outer contact resistance ≤1.0 mΩ
    Insertion Loss             ≤0.05dB@3GHz
    VSWR                    ≤1.06@-3.0GHz
    Temperature range  -40~85℃
    PIM  dBc(2×20W) ≤-160 dBc(2×20W)
    Waterproof IP67

    Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable

    Structure of connector: ( Fig1 )
    A. front nut
    B. back nut
    C. gasket

    Installation Instructions001

    Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
    1. The end surface of inner conductor should be chamfered.
    2. Remove impurities such as copper scale and burr on the end surface of the cable.

    Installation Instructions002

    Assembling the sealing part: Screw the sealing part in  along the outer conductor of the cable as shown by the diagram ( Fig3).

    Installation Instructions003

    Assembling the back nut  (Fig3).

    Installation Instructions004

    Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
    1. Before screwing, smear a layer of lubricating grease on the o-ring.
    2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.

    Installation Instructions005
