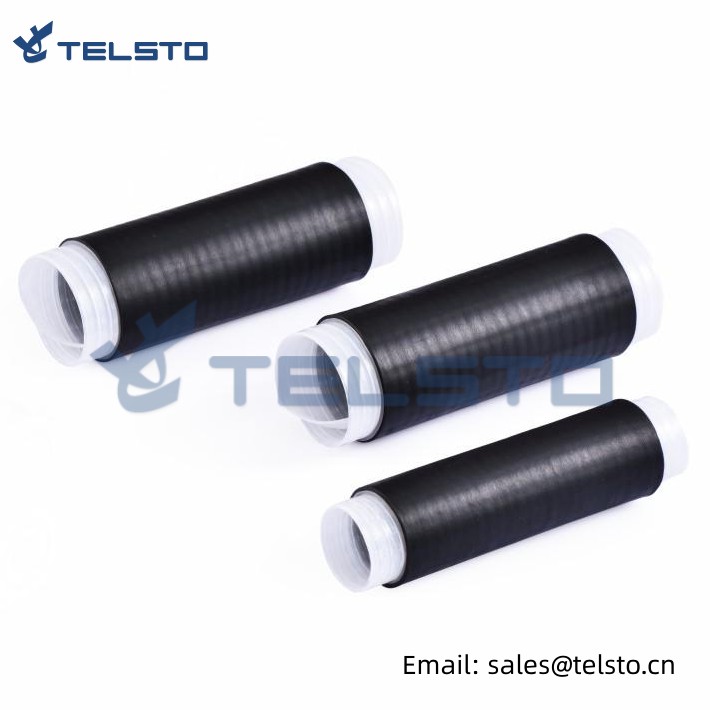

Silicone Rubber Cold Shrink Tube for 5G Nex10 Connector Description
Cold shrink tube is a specially formulated tubular rubber sleeve pre -expand on a removable plastic cylinder for easy installation, it does not require heat to shrink. You just need to pull the plastic cord, then the silicone rubber tubing will shrink rapidly and grip around the cable tightly, providing a reliable, long-term sealing and protection to connectors.
Cold shrink sleeve for telecom site is a fast and easy way to weatherproof a connection. Simply position the pre- expand tubing over the connection that you are protecting and pull the rip cord. The tubing compresses to form a weatherproof seal.
All without heat, special tools or a time-consuming installation procedure. And it's easily removed when system maintenance is required.
Cold shrink sleeve is designed to seal the connection between the base station antenna and the 1/2" flex & super flex coaxial cable. It is widely used in the wireless cell sites.
| *All required components and instructions are provided in one kit |
| *Simple, safe installation, requires no tools |
| *Accommodate covered cables with various outside diameters |
| *No torches or heat are required |
| *Significantly reduces the time required to cover splices by traditional techniques |
| *Maintains the physical and electrical integrity of the covered conductor |
| *Includes partial tension compression sleeve |
Feature:
1. Simple installation, requires only workman's hands.
2. No tool or heat required.
3. Seals tight, retains its resiliency and pressure even after years of aging and exposure.
4. Resists moisture.
5. Wide range, size accommodation.
6. Resists acids and alkalies.
7. Resists ozone and ultraviolet light.
8. Resists fluid splashes.
9. Resists fire - will not support flame.
|
Product |
Tube Inner Diameter (mm) |
Cable range(mm) |
|
Silicone Cold Shrink Tube |
φ15 |
φ4-11 |
|
φ20 |
φ5-16 |
|
|
φ25 |
φ6-21 |
|
|
φ28 |
φ6-24 |
|
|
φ30 |
φ7-26 |
|
|
φ32 |
φ8-28 |
|
|
φ35 |
φ8-31 |
|
|
φ40 |
φ10-36 |
|
|
φ45 |
φ11-41 |
|
|
φ52 |
φ11.5-46 |
|
|
φ56 |
φ12.5-50 |
|
| Remarks: |
|
|
| Tube diameter and tube length can be customized according to customer's requirements. | ||
