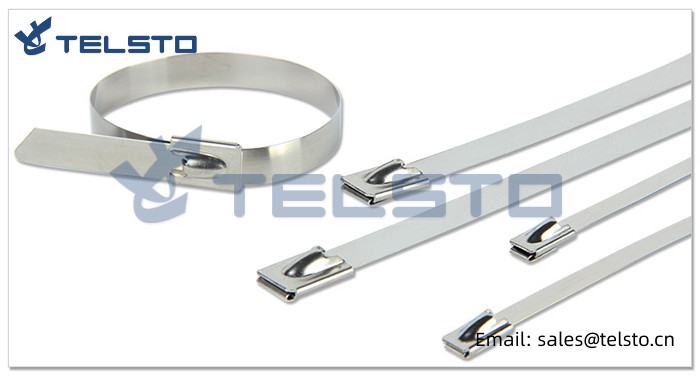

Telsto ball-locking steel cable tie is most popular type which are made from high quality steel material, having the characters such as heat-resisting ,erosion control, insulate well, fireproof and not apt to age.
● Ideal for use on small leads or objects
● Structure: Self locking, ball bearing mechanism for quick and easy installation, either by hand
● High resistance to acetic acid, alkali acid, suiphuric acid, etc.
● 370mm Long - 4.6 mm Wide
● Material: Stainless steel 304, 201, 316
● Brand New, Retail Bagged
● Maximum Bundle diameter : 102mm
● Working temperature: -80℃-500℃
Product Features
1.Material: Stainless Steel 201,304,316 .
2.Specification:width 6mm-25mm thickness 0.2mm-1mm
3.Packing: 30m/roll, 30.5mm/roll, 50m/roll carton packaging, plastic box optional
Can also be packaged according to customer requirements.
Application
The strength of the binding strength is widely used in various fields (petrochemical, bridges, pipelines, cable tray, traffic facilities, billboards, electric power facilities, etc.).

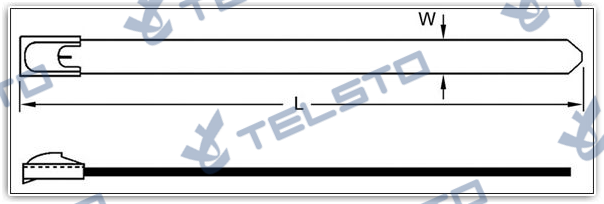

Part No. |
Length(L) |
Width(W) |
Bundle Diameter(E) |
Tensile Strength |
||
Inch |
MM |
MM |
MM |
LBS |
KGS |
|
TEL-CTS-4.6x150 |
5.9" |
150 |
4.6 |
37 |
135 |
61 |
TEL-CTS-4.6X200 |
7.87" |
200 |
50 |
|||
TEL-CTS-4.6X250 |
9.84" |
250 |
63 |
|||
TEL-CTS-4.6X300 |
11.8" |
300 |
76 |
|||
TEL-CTS-4.6X350 |
13.78" |
350 |
89 |
|||
TEL-CTS-4.6X400 |
15.57" |
400 |
102 |
|||
TEL-CTS-4.6X450 |
17.72" |
450 |
115 |
|||
TEL-CTS-4.6X500 |
19.69" |
500 |
128 |
|||
TEL-CTS-4.6X550 |
21.65" |
550 |
141 |
|||
TEL-CTS-4.6X600 |
23.62" |
600 |
154 |
|||
|
||||||
TEL-CTS-7.9x150 |
5.9" |
150 |
7.9 |
37 |
180 |
81 |
TEL-CTS-7.9x200 |
7.87" |
200 |
50 |
|||
TEL-CTS-7.9x250 |
9.84" |
250 |
63 |
|||
TEL-CTS-7.9x300 |
11.8" |
300 |
76 |
|||
TEL-CTS-7.9x350 |
13.78" |
350 |
89 |
|||
TEL-CTS-7.9x400 |
15.57" |
400 |
102 |
|||
TEL-CTS-7.9x450 |
17.72" |
450 |
115 |
|||
TEL-CTS-7.9x500 |
19.69" |
500 |
128 |
|||
TEL-CTS-7.9x550 |
21.65" |
550 |
141 |
|||
TEL-CTS-7.9x600 |
23.62" |
600 |
154 |
|||
TEL-CTS-7.9x650 |
25.59 |
650 |
167 |
|||
TEL-CTS-7.9x700 |
27.56" |
700 |
180 |
|||
TEL-CTS-7.9x750 |
29.53" |
750 |
191 |
|||
TEL-CTS-7.9x800 |
31.5" |
800 |
193 |
|||
|
||||||
TEL-CTS-12x150 |
5.9" |
150 |
12 |
37 |
270 |
122 |
TEL-CTS-12x200 |
7.87" |
200 |
50 |
|||
TEL-CTS-12x250 |
9.84" |
250 |
63 |
|||
TEL-CTS-12x300 |
11.8" |
300 |
76 |
|||
TEL-CTS-12x350 |
13.78" |
350 |
89 |
|||
TEL-CTS-12x400 |
15.57" |
400 |
102 |
|||
TEL-CTS-12x450 |
17.72" |
450 |
115 |
|||
TEL-CTS-12x500 |
19.69" |
500 |
128 |
|||
TEL-CTS-12x550 |
21.65" |
550 |
141 |
|||
TEL-CTS-12x600 |
23.62" |
600 |
154 |
|||
TEL-CTS-12x650 |
25.59 |
650 |
167 |
|||
TEL-CTS-12x700 |
27.56" |
700 |
180 |
|||
|
||||||
TEL-CTS-15X200 |
7.87" |
200 |
15 |
50 |
337 |
152 |
TEL-CTS-15X250 |
9.84" |
250 |
63 |
|||
TEL-CTS-15X300 |
11.8" |
300 |
76 |
|||
TEL-CTS-15X350 |
13.78" |
350 |
89 |
|||
TEL-CTS-15X400 |
15.57" |
400 |
102 |
|||
TEL-CTS-15X450 |
17.72" |
450 |
115 |
|||
TEL-CTS-15X500 |
19.69" |
500 |
128 |
|||
TEL-CTS-15X550 |
21.65" |
550 |
141 |
|||
TEL-CTS-15X600 |
23.62" |
600 |
154 |
|||
TEL-CTS-15X650 |
25.59 |
650 |
167 |
|||
TEL-CTS-15X700 |
27.56" |
700 |
180 |
|||
TEL-CTS-15X750 |
29.53" |
750 |
191 |
|||
TEL-CTS-15X800 |
31.5" |
800 |
193 |
|||
TEL-CTS-15X1000 |
39.37" |
1000 |
206 |
