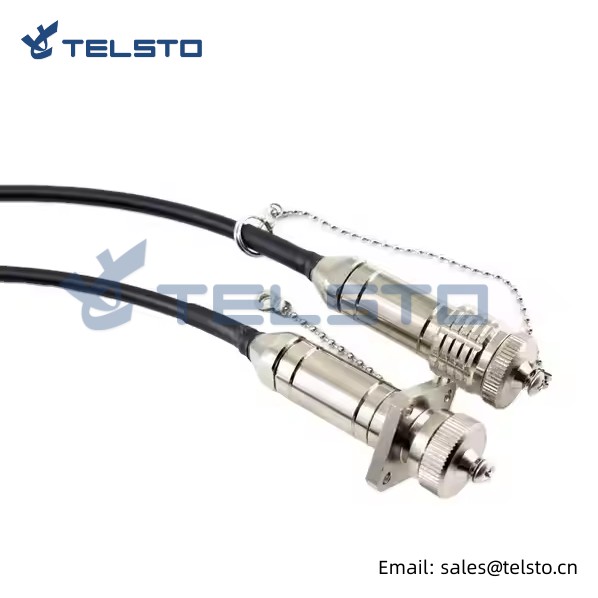

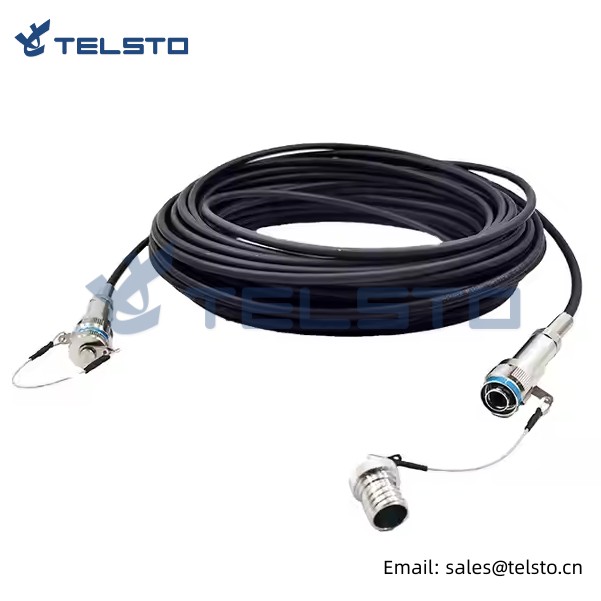

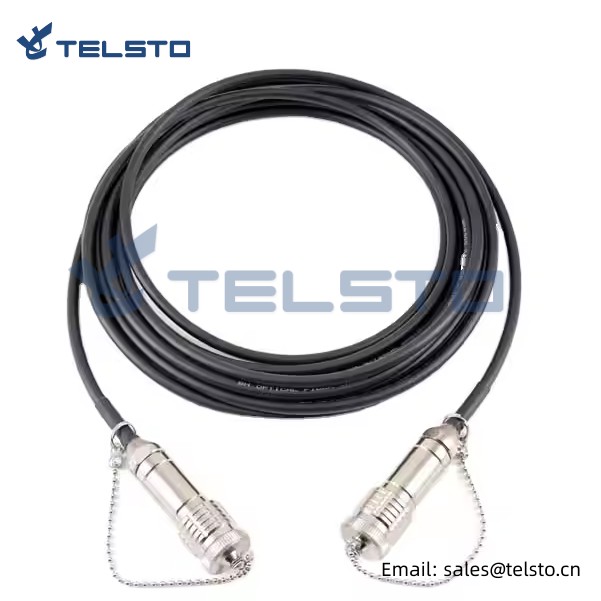

BBU RRU CPRI Outdoor Waterproof SM 4Core IDC to LC Optical Fiber Optic Patch Cord
BBU RRU CPRI Outdoor Waterproof SM 4-Core IDC to LC Optical Fiber Optic Patch Cord
Products Description
The FTTA patch cable is engineered for high reliability in demanding industrial and harsh environmental applications, including fiber-to-the-antenna (FTTA) solutions. It consists of fiber optic cable and LC UPC Simplex connectors, offering exceptional crush resistance and a high degree of flexibility, thanks to its armored tube. Additionally, the cable is equipped with a flame-retardant LSZH jacket, which is UV-stabilized and highly resistant to chemicals commonly encountered in industrial environments. This makes the cable suitable for both indoor and outdoor industrial installations.
Features
● Excellent flexibility for remote traction
● Low insertion loss and back reflection loss
● High interchangeability
● Exceptional durability
● High temperature stability
● Specifically designed for FTTA applications
● Suitable for wireless horizontal and vertical cabling in outdoor environments
Application
• 3G, 4G base station
• BBU, RRU, RRH, LTE
• FTTA, FTTP, FTTX, WIMAX
• Mining and shipboard
• Aerospace and Defense
• Horizontal and Vertical Cabling
Specification
| Connector Type | LC/FC/SC/ST/… | Fiber Mode | Singlemode |
| Fiber type | G652D/G657A1/G657A2/G657B3 | Fiber Count | 1/2/4/8/… |
| Insertion Loss | ≤0.3dB | Return Loss | UPC ≥50dB |
| Cable Jacket | Low Smoke Zero Halogen (LSZH) | Cable Diameter (Outer/Inner) | 5.0mm/7.0mm/… |
| Tensile Strength | 200/400N (Long/Short Term) | Crush Resistance | 1100/2200N (Long/Short Term) |
| Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
