ADSS Cable Anchoring Clamp Dead End Strain Clamp
ADSS Cable Anchoring Clamp Dead End Strain Clamp / Plastic Aluminum Tension Flat Clamp Use for ADSS Cable PA1500 PA2000

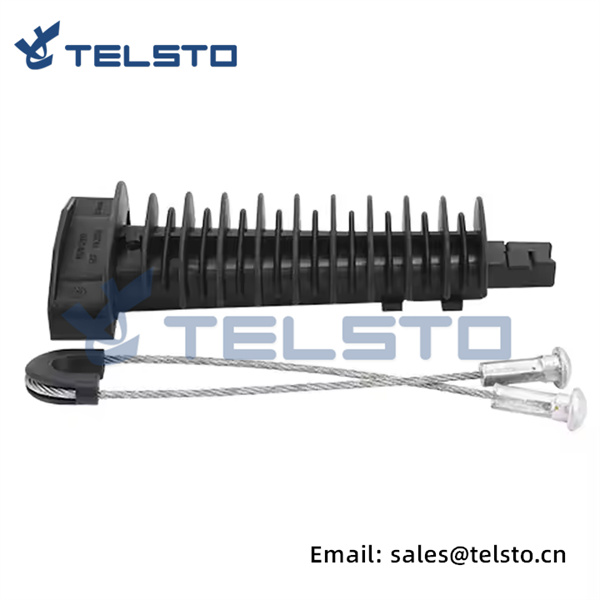

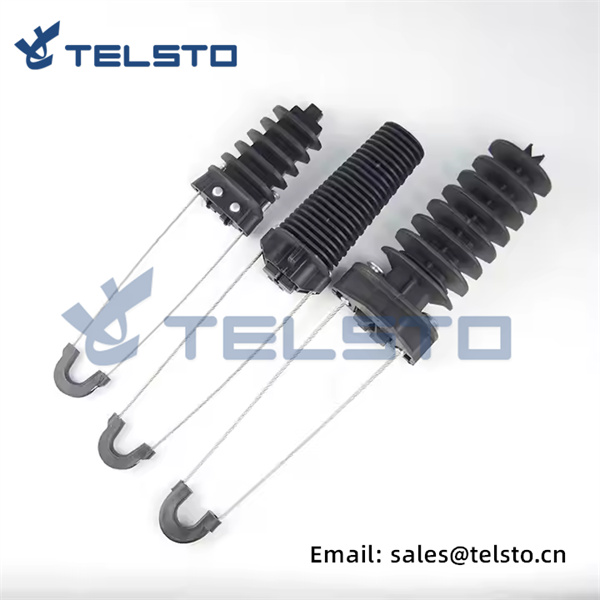

The Wedge type Tension Clamp for ADSS conductor is designed to anchor insulated service lines with 2 or 4 conductors to the pole or wall. The ADSS tension clamp is composed of a body, wedges and removable and adjustable bail or pad. The PA series Anchor clamps are design to supporting the neutral messenger, the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self-opening is featured by an integrate spring facilities for easily insert the conductor into the clamp.
Feature
Weatherproof
Corrosion-resistant
Resistant to mechanical traction
Supports industrial-duty tension
Suitable for all field configurations
Simple and fast installation requiring no tools
Can be mounted on pole line hardware with open or closed eye
Specification
| Place of Origin | China |
| Product name | PA1500 PA2000 wedge clamp |
| Application | ADSS Optical Cable |
| Strength | 30KN |
| Color | Black or customized |
| Cable size | 10-15mm |
| Span | 100,150m span |
| Material | Alimunium alloy/Stainless Steel/Hot dip galvanized steel |
| Standard or Nonstandard | Standard |
