40G-QSFP-SR4-850nm-100-300M-1

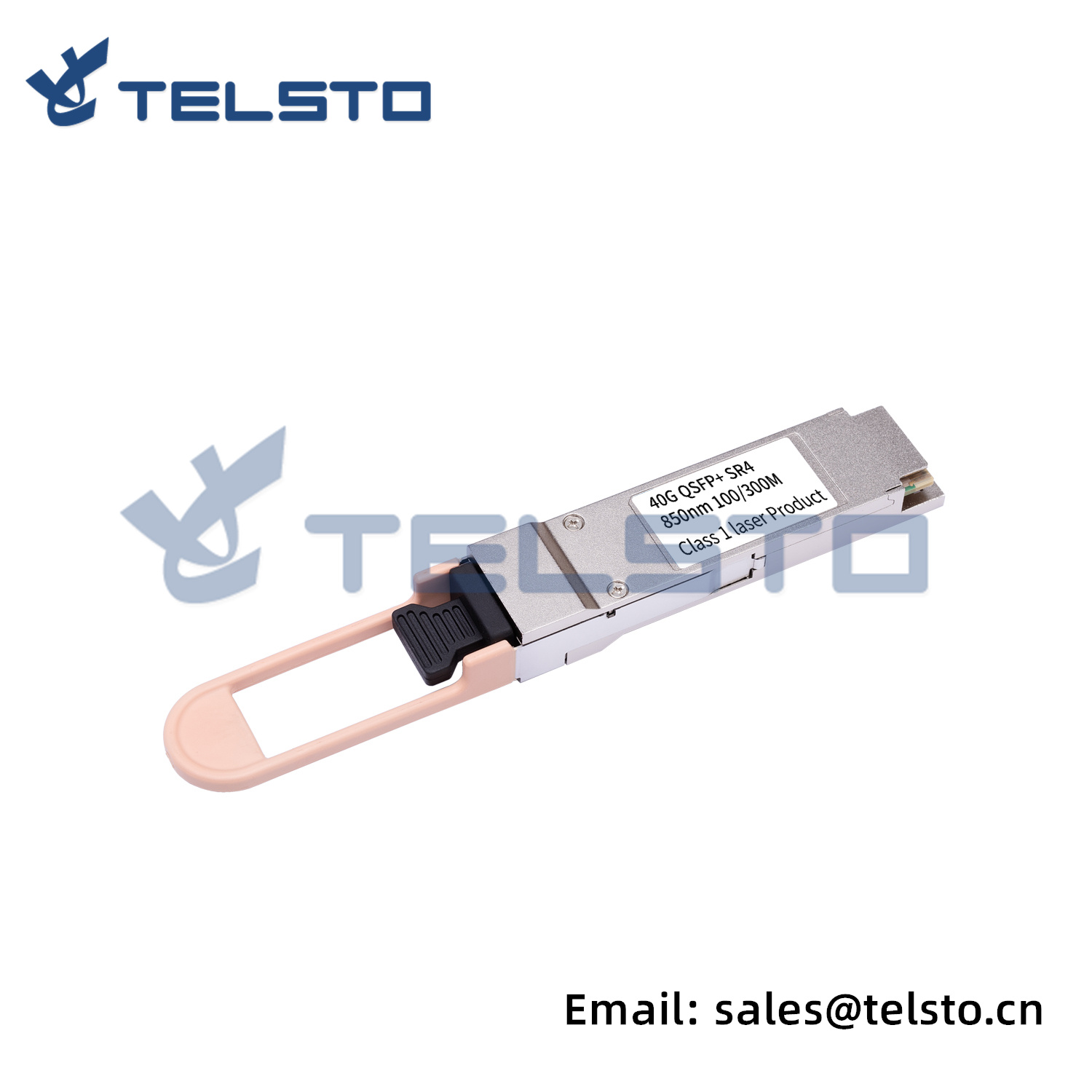

Product Name: 40G QSFP+ SR4 850NM 150M MPO MMF

Type: Quad Small Form-Factor Pluggable Plus (QSFP+) Transceiver

Data Rate: 40 Gigabit per Second (Gbps)

Wavelength: 850 Nanometers (NM)

Transmission Distance: Up to 150 Meters (M)

Fiber Type: Multi-Mode Fiber (MMF)

Connector Type: MPO (Multi-fiber Push On) Connector

Place of Origin: Shanghai, China (Mainland)

Brand Name: Telsto

Send email to us

Description

40G QSFP+ SR4 850NM 150M MPO MMF

The QSFP+ module adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, campus and computing networks, interconnections within and between switches, routers, NICs and transport equipment.

Max. Power Consumption 1.5W

Tested in Targeted Switches for Superior Performance, Quality, and Reliability

High-Speed Electrical Interface Compliant to IEEE 802.3ba

Support 40G to 4x10G Breakout Application

Support Real-time Configuration

Compliant to SFF-8436 and QSFP MSA

Hot Pluggable QSFP+ Form Factor

Class 1 FDA Laser Safety and RoHS Compliant

Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
