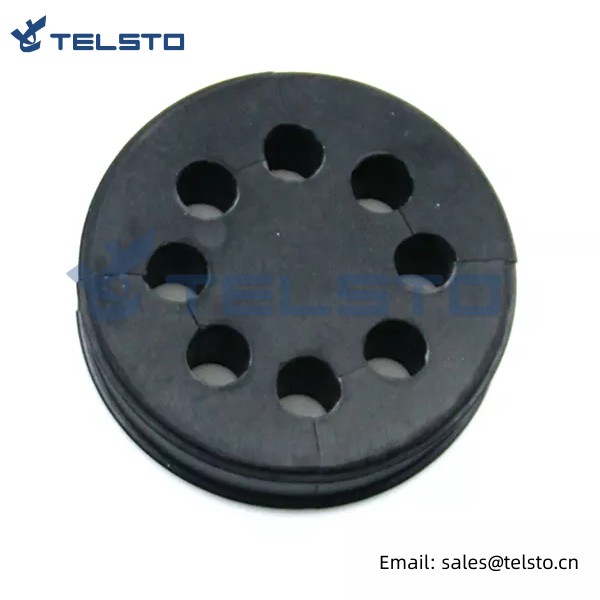

4 inch Boot Assembly Cushion for cable entry
Boot Assembly Cushion provides versatility in any application, allowing a single cushion to mount a wide range of cable sizes, reducing material and installation costs. These cushions are constructed of UV-resistant EPDM rubber, allowing for proper functionality in extreme temperature and harsh environmental conditions. Barrel cushions are available in multiple sizes to accommodate industry demands for fiber, power, elliptical and coaxial cable requirements. The unique design allows the cushion to be individually installed utilizing Butterfly Hangers or stacked with Stack able Hangers and Mini Cable Blocks.
*Application: Clamp Port Solutions
*Size: Versions for coaxial cable
*Design: Compression fit round cushions
*Feature: Dependable seal
*Material: EPDM rubber
| Product | Description | Part No. |
| Boot Assembly Cushion | Boot Assembly Cushion with 9 holes for 3/8" coaxial cable | TEL-BAC-9X3/8'' |
| Boot Assembly Cushion with 4 holes for 1/2" coaxial cable | TEL-BAC-4X1/2'' | |
| Boot Assembly Cushion with 4 holes for 1/2"Superflex coaxial cable | TEL-BAC-4X1/2''S | |
| Boot Assembly Cushion with 3 holes for 7/8" coaxial cable | TEL-BAC-3X7/8'' | |
| Boot Assembly Cushion with 3 holes for 1-1/4"coaxial cable | TEL-BAC-3X1-1/4'' | |
| Boot Assembly Cushion with 1 hole for 1-1/4"coaxial cable | TEL-BAC-1X1-1/4'' | |
| Boot Assembly Cushion with 1 hole for 1-5/8"coaxial cable | TEL-BAC-1X1-5/8'' | |
| Boot Assembly Cushion with 2 hole for 3/8"coaxial cable | TEL-BAC-2X3/8'' | |
| Boot Assembly Cushion with 2 holes for EW36 coaxial cable | TEL-BAC-2XEW36 |

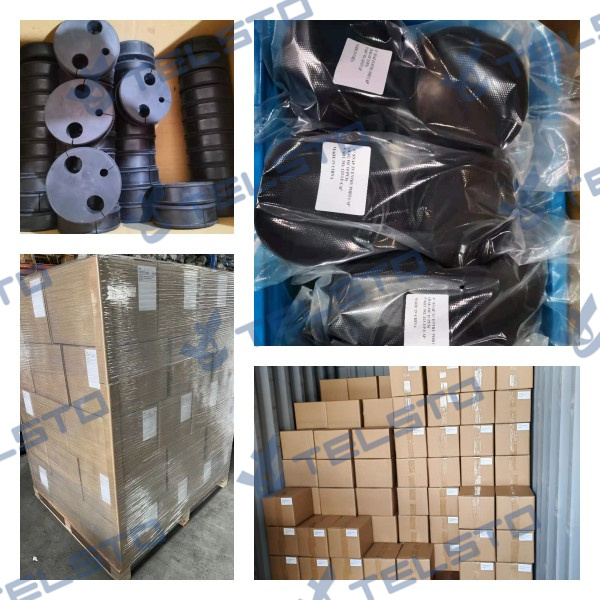

Packing Reference:
