4.3-10 Male connector for 1/2” flexible RF cable
1. We focus on RF Connector & Cable Assembly.
2. We have a vigorous and creative R&D team with the fullest mastery of the core technology. We commit ourselves to the development of high performance connector production, and dedicate ourselves to achieving a leading position in connector innovation and production.
3. Our custom RF cable assemblies are built-in and shipped worldwide.
4. RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.
5. Special RF Connector or RF Cable assembly could be customized per request.
|
Product |
Description | Part No. |
|
7/16 DIN Type
|

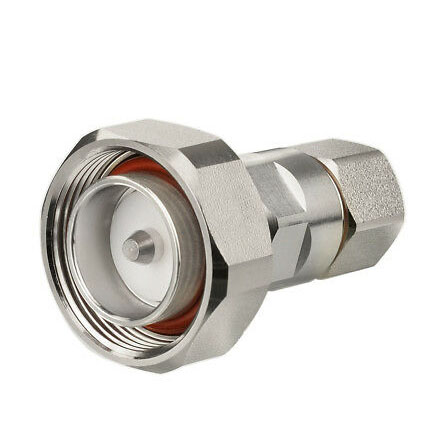

DIN 7/16 Male/Female connector for 1/2" flexible RF cable | TEL-DINM/F.12-RFC |
| DIN 7/16 Male/Female connector for 1/2" Super flexible RF cable | TEL-DINM/F.12S-RFC | |
| DIN 7/16 Male/Female for 7/8'' coaxial RF cable | TEL-DINM/F.78-RFC | |
| DIN Male/Female connector for 1-1/4" flexible RF cable | TEL-DINM/F.114-RFC | |
| DIN Male/Female connector for 1-5/8" flexible RF cable | TEL-DINM/F.158-RFC | |
| DIN Male/Female Right Angle connector for 1/2" Super flexible RF cable | TEL-DINM/FA.12S-RFC | |
| DIN Male/Female Right Angle connector for 1/2" flexible RF cable | TEL-DINM/FA.12-RFC | |
| DIN Female connector for 7/8" leaky cable | TEL-DINF.78LK-RFC | |
| DIN 7/16 Male/Female connector for 1/2" flexible RF cable Soldering type | TEL-DINM/F.12-RFCS | |
| DIN 7/16 Male/Female connector for 1/2" Super flexible RF cable Soldering type | TEL-DINM/F.12S-RFCS | |
| DIN Male/Female Right Angle connector for 1/2" Super flexible RF cable Soldering type | TEL-DINM/FA.12S-RFCS | |
| DIN Male/Female Right Angle connector for 1/2" flexible RF cable Soldering type | TEL-DINM/FA.12-RFC S | |
| DIN 7/16 Male connector for 3/8" Super flexible RF cable | TEL-DINM.38S-RFC | |
| DIN Male Right Angle connector for 3/8'' Super flexible RF cable | TEL-DINMA.38S-RFC | |
| DIN 7/16 Male connector for 3/8’’ Super flexible RF cable Soldering type | TEL-DINM.38S-RFCS | |
| DIN Male Right Angle connector for 3/8'' Super flexible RF cable Soldering type | TEL-DINMA.38S-RFCS | |
| N Type | N Male/Female connector for 1/2" flexible RF cable | TEL-NM/F.12-RFC |
| N Male/Female connector for 1/2" Super flexible RF cable | TEL-NM/F.12S-RFC | |
| N Male/Female Right Angle connector for 1/2" flexible RF cable | TEL-NM/FA.12-RFC | |
| N Male/Female Right Angle connector for 1/2" Super flexible RF cable | TEL-NM/FA.12S-RFC | |
| N Male/Female connector for 1/2" flexible RF cable Soldering type | TEL-NM/F.12-RFCS | |
| N Male/Female connector for 1/2" Super flexible RF cable Soldering type | TEL-NM/F.12S-RFCS | |
| N Male/Female Right Angle connector for 1/2" flexible RF cable Soldering type | TEL-NM/FA.12-RFCS | |
| N Male/Female Right Angle connector for 1/2" Super flexible RF cable Soldering type | TEL-NM/FA.12S-RFCS | |
| N Male/Female connector for 7/8" flexible RF cable | TEL-NM/F.78-RFC | |
| N Male/Female connector for 1-5/8" flexible RF cable | TEL-NM/F.158-RFC | |
| N Male/Female connector for LMR300 RF cable | TEL-NM/F.LMR300-RFC | |
| N Male/Female connector forLMR400 RF cable | TEL-NM/F.LMR400-RFC | |
| N Male/Female connector for LMR600 RF cable | TEL-NM/F.LMR600-RFC | |
| N Male/Female connector for RG213 RF cable | TEL-NM/F.RG213-RFC | |
| N Male/Female connector for RG6 RF Cable | TEL-NM/F.RG6-RFC | |
|
4.3-10 Type |
4.3-10 Male/Female connector for 1/2" flexible RF cable | TEL-4310M/F.12-RFC |
| 4.3-10 Male/Female connector for 1/2" Super flexible RF cable | TEL-4310M/F.12S-RFC | |
| 4.3-10 Male/Female Right Angle connector for 1/2" flexible RF cable | TEL-4310M/FA.12-RFC | |
| 4.3-10 Male/Female Right Angle connector for 1/2" Super flexible RF cable | TEL-4310M/FA.12S-RFC | |
| 4.3-10 Male/Female connector for 3/8" Super flexible RF cable | TEL-4310M/F.38S-RFC | |
| 4.1-9.5 Mini DIN Male connector for 3/8" superflex cable | TEL-4195-3/8S-RFC | |
| 4.3-10 Male/Female connector for 7/8" flexible RF cable | TEL-4310M/F.78-RFC | |
| 4.3-10 Male connector for 1/4" Superflexible Cable | TEL-4310M.14S-RFC | |
| 4.3-10 Male connector for LMR400 cable | TEL-4310M.LMR400-RFC |
Related

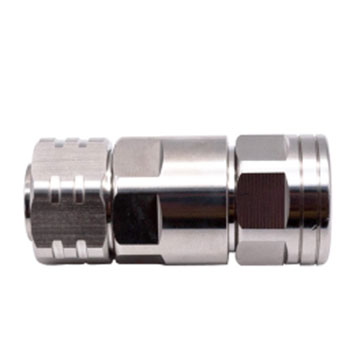

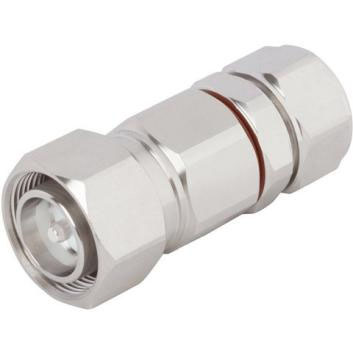

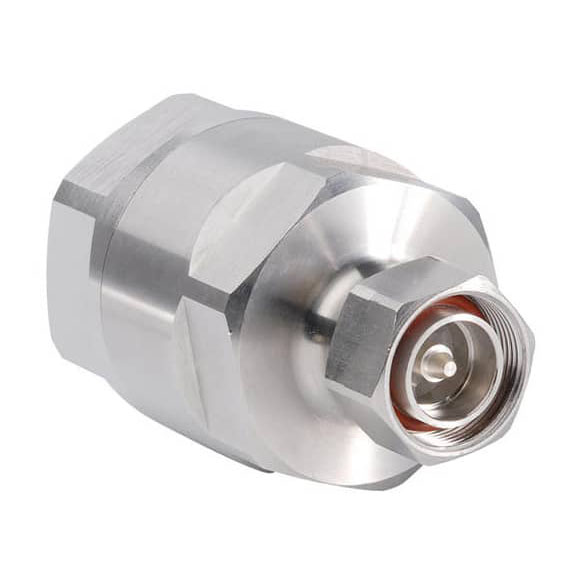

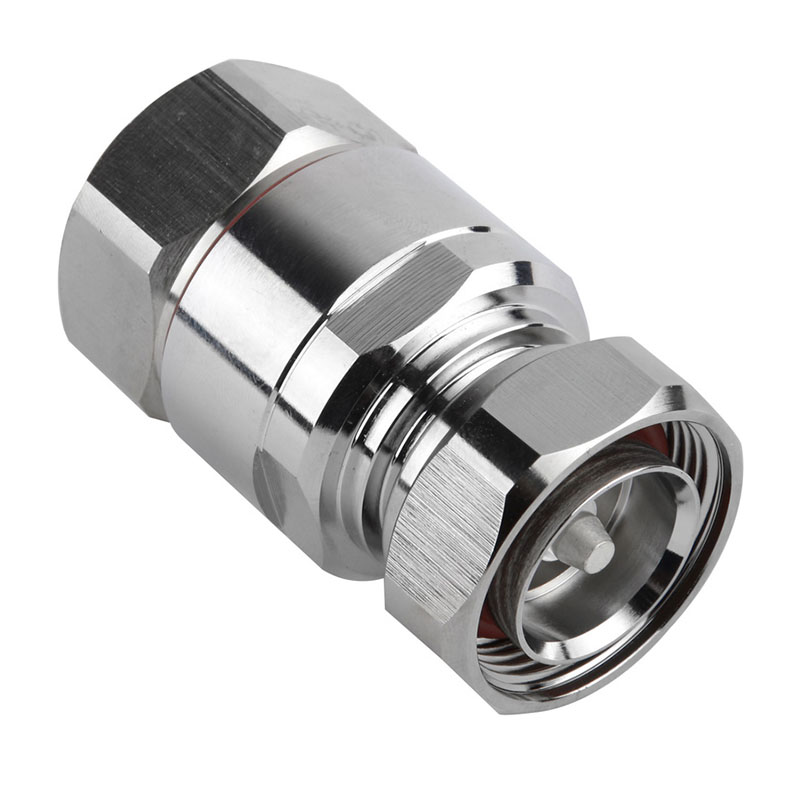

Model: TEL-4310M.12-RFC
Description
4.3-10 Male connector for 1/2″ flexible cable
| Material and Plating | |
| Center contact | Brass / Silver Plating |
| Insulator | PTFE |
| Body & Outer Conductor | Brass / alloy plated with tri-alloy |
| Gasket | Silicon Rubber |
| Electrical Characteristics | |
| Characteristics Impedance | 50 Ohm |
| Frequency Range | DC~3 GHz |
| Insulation Resistance | ≥5000MΩ |
| Dielectric Strength | ≥2500 V rms |
| Center contact resistance | ≤1.0 mΩ |
| Outer contact resistance | ≤1.0 mΩ |
| Insertion Loss | ≤0.1dB@3GHz |
| VSWR | ≤1.1@-3.0GHz |
| Temperature range | -40~85℃ |
| PIM dBc(2×20W) | ≤-160 dBc(2×20W) |
| Waterproof | IP67 |
Installation Instructions of N or 7 / 16 or 4310 1 / 2″ super flexible cable
Structure of connector: ( Fig1 )
A. front nut
B. back nut
C. gasket
Stripping dimensions is as shown by diagram ( Fig2 ), attention should be paid while stripping:
1. The end surface of inner conductor should be chamfered.
2. Remove impurities such as copper scale and burr on the end surface of the cable.
Assembling the sealing part: Screw the sealing part in along the outer conductor of the cable as shown by the diagram ( Fig3).
Assembling the back nut (Fig3).
Combine the front and back nut by screwing as shown by diagram ( Figs( 5)
1. Before screwing, smear a layer of lubricating grease on the o-ring.
2. Keep the back nut and the cable motionless, Screw on main shell body on back shell body. Screw down main shell body of back shell body using monkey wrench. Assembling is finished.
