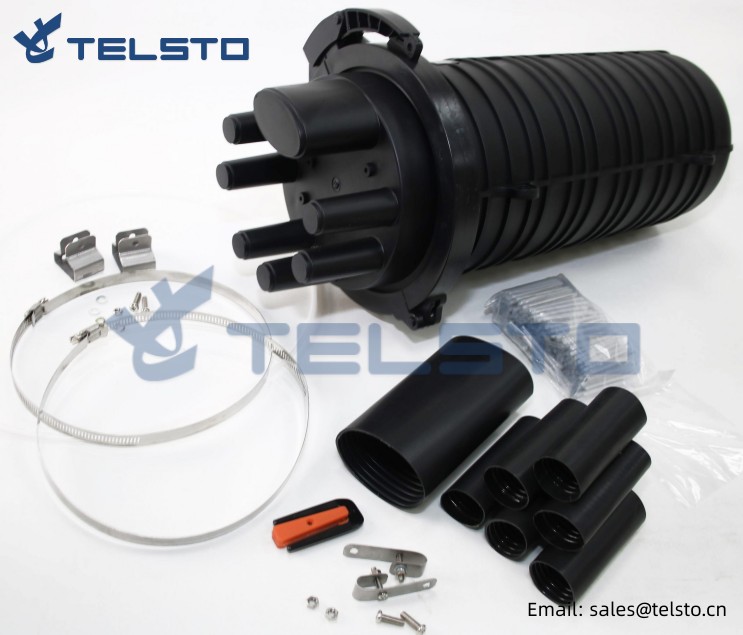

3 IN 4 OUT dome Outdoor Optical Cable Splicing Closure
3 IN 4 OUT Cap Type Outdoor Optical Cable Splicing Closure adopt high toughness, high rigidity quality PC material, exquisite workmanship, With a first-class Sealing performance and mechanical performance, Ensure the stability and smooth of the optical fiber outdoor cable.
Feature
1. Have good mechanical properties and temperature characteristics.
2. Have good sealing performance.
3. Compact structure, high capacity. Easy maintenance.
4. Enough coiling radius, No additional loss.
5.This product can open again after sealing, After replacement of sealing material can be reused.
Standard
3 IN 4 OUT Cap Type Outdoor Optical Cable Splicing Closure complies withYD/T814.1-2004
Specification
|
NO. |
Cable Port |
Max capacity |
Dimension(mm) |
Cable Dimension |
G.W.(kg) |
Seal structure |
Basic equipment |
|
1 |
2-2 |
72 (6x12) |
Φ260x500 |
Φ 7~20 |
4 |
silicon gum material |
24 |
|
2 |
3-3 |
48 (4x12) |
Φ210x460 |
Φ 7~22 |
4 |
silicon gum material or Heat shrinkable sealing structure |
24 |
|
3 |
3-3 |
72 (6x12) |
Φ260x500 |
Φ 7~20 |
4 |
Heat shinkable sealing structure |
24 |
|
4 |
4-4 |
216 (6x36) |
Φ278x500 |
Φ 7~23 |
7 |
Heat shinkable sealing structure |
36 |
|
5 |
3-3 |
96 (4x24) |
Φ210x567 |
Φ 7~23 |
5 |
Heat shinkable sealing structure |
24 |
|
6 |
4-4 |
252 (7x36) |
Φ278x580 |
Φ 7~23 |
7 |
Heat shinkable sealing structure |
36 |
|
7 |
3-3 |
216 (6x36) |
Φ278x580 |
Φ 7~23 |
7 |
Heat shinkable sealing structure |
36 |
|
8 |
2-2 |
72 (6x12) |
Φ260x590 |
Φ 7~20 |
7 |
Silicon gum material |
24 |
